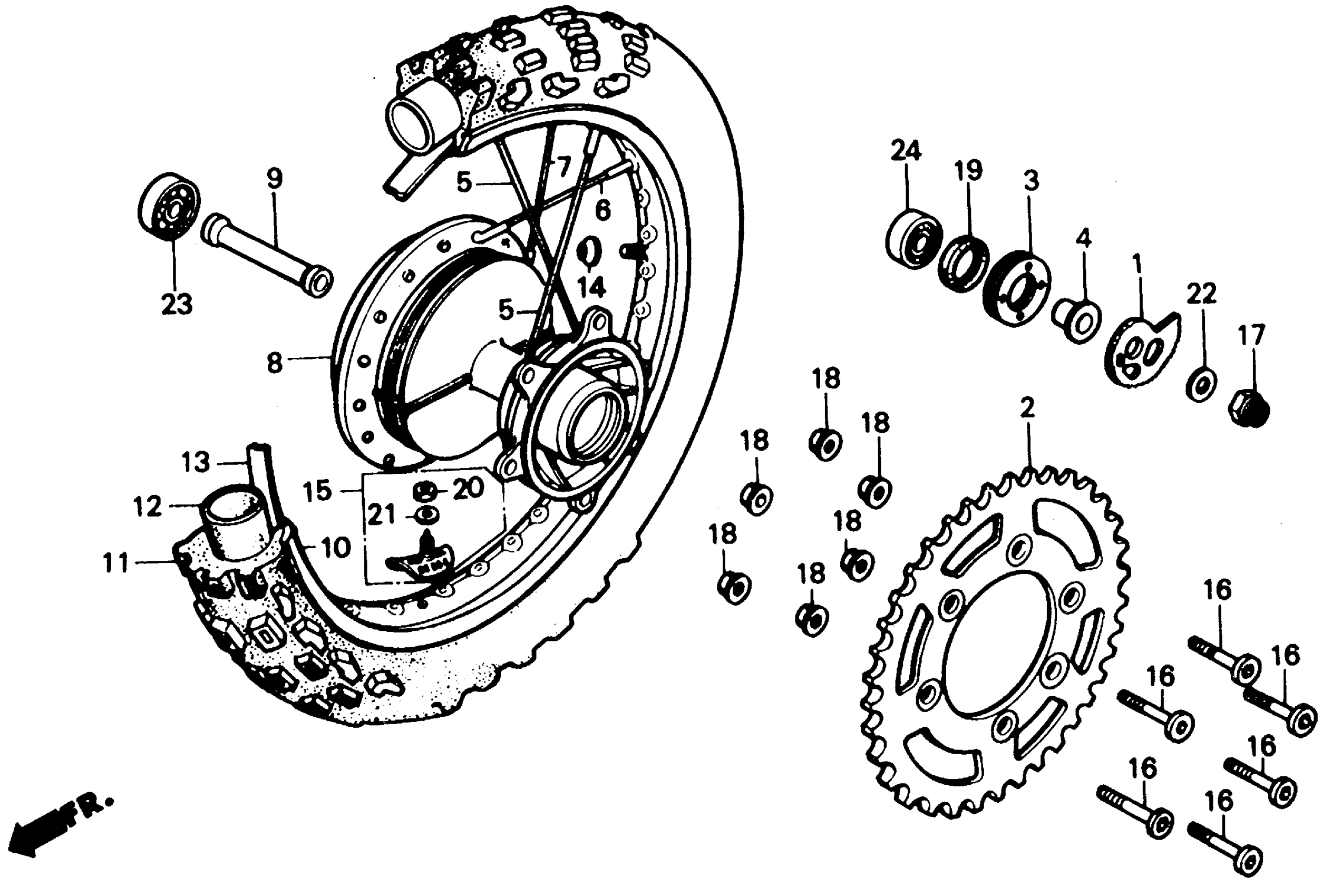

Honda XR250RA (84) MOTORCYCLE, JPN, VIN# JH2ME060-EK000004 TO JH2ME060-EK006272 REAR WHEEL 84-89 Diagram

#

Description
Price

1

ADJUSTER, R. CHAIN This part replaces 40545-KK0-000.

40544-MS8-000

Unavailable

2

SPROCKET, FINAL DRIVEN (50T) (NOT AVAILABLE)

41201-KK0-000

Unavailable

3

RETAINER, BEARING

41231-429-000

$30.89

4

COLLAR, RR. WHEEL

42312-KF0-000

$25.87

5

SPOKE SET A (9X182) This part replaces 426A0-KK0-000.

42610-KT0-405

$5.90

5

SPOKE SET A (9X182)

42610-KT0-405

$5.90

6

SPOKE SET B (9X164) This part replaces 426B0-KK0-000.

42611-KT0-405

$5.13

6

SPOKE SET B (9X164)

42611-KT0-405

$5.13

7

SPOKE SET A (9X162)

426C0-KK0-000

$4.74

7

SPOKE SET C (9X162)

42612-KT0-405

Unavailable

8

HUB, RR. WHEEL This part replaces 42601-KK0-000.

42601-KK0-010

Unavailable

8

HUB, RR. WHEEL

42601-KK0-010

Unavailable

9

COLLAR, RR. AXLE DISTANCE This part replaces 42620-KK0-000.

42620-KT0-830

Unavailable

10

RIM, RR. (2.15X7) This part replaces 42701-KK1-003.

42701-KK1-505

Unavailable

11

TIRE, RR. (4.60-17) (6PR) (INOUE) (SOURCE: VINTAGE PARTS INC.) This part replaces 42711-KK1-005.

42711-KK1-771

Unavailable

11

TIRE, RR. (4.60-17) (6PR) (INOUE) (SOURCE: VINTAGE PARTS INC.)

42711-KK1-771

Unavailable

12

TUBE, TIRE (5.10-17) (INOUE) This part replaces 08400-37100.

42712-MA0-005

Unavailable

12

TUBE, TIRE (5.10-17) (INOUE) This part replaces 42712-KB7-902.

42712-MA0-005

Unavailable

12

TUBE, TIRE (5.10-17) (INOUE) This part replaces 42712-MA0-003.

42712-MA0-005

Unavailable

12

TUBE, TIRE (5.10-17) (INOUE)

42712-MA0-005

Unavailable

12

TUBE, TIRE (5.10-17) (INOUE) This part replaces 42712-MC4-005.

42712-MA0-005

Unavailable

12

TUBE, TIRE (5.10-17) (INOUE) This part replaces 42712-MC4-009.

42712-MA0-005

Unavailable

12

TUBE, TIRE (120/90-17) (BS)

42712-MN9-003

Unavailable

12

TUBE, TIRE (5.10-17) (INOUE) This part replaces 42712-371-003.

42712-MA0-005

Unavailable

12

TUBE, TIRE (5.10-17) (INOUE) This part replaces 42712-371-004.

42712-MA0-005

Unavailable

13

FLAP, TIRE (IRC)

42713-MA0-005

Unavailable

14

CAP, VALVE

42714-KA3-710

$10.46

15

STOPPER, BEAD (2.15)

42715-MA0-770

$37.88

16

SCREW, FLAT (8X29)

90125-KA3-700

$6.19

17

NUT, AXLE (16MM)

90305-MA0-003

$7.31

18

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

18

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

19

OIL SEAL (25X40X7)

91216-729-921

$7.46

19

OIL SEAL (25X40X7) This part replaces 91252-428-000.

91216-729-921

$7.46

20

NUT, HEX. (8MM)

94001-08000-0S

$1.49

21

WASHER, SPRING (8MM)

94111-08000

$1.49

22

WASHER, SPRING (16MM)

94111-16000

$1.49

23

BEARING, RADIAL BALL (6203U)

96140-62030-10

$11.91

24

BEARING, RADIAL BALL (6303U)

96140-63030-10

$14.48
