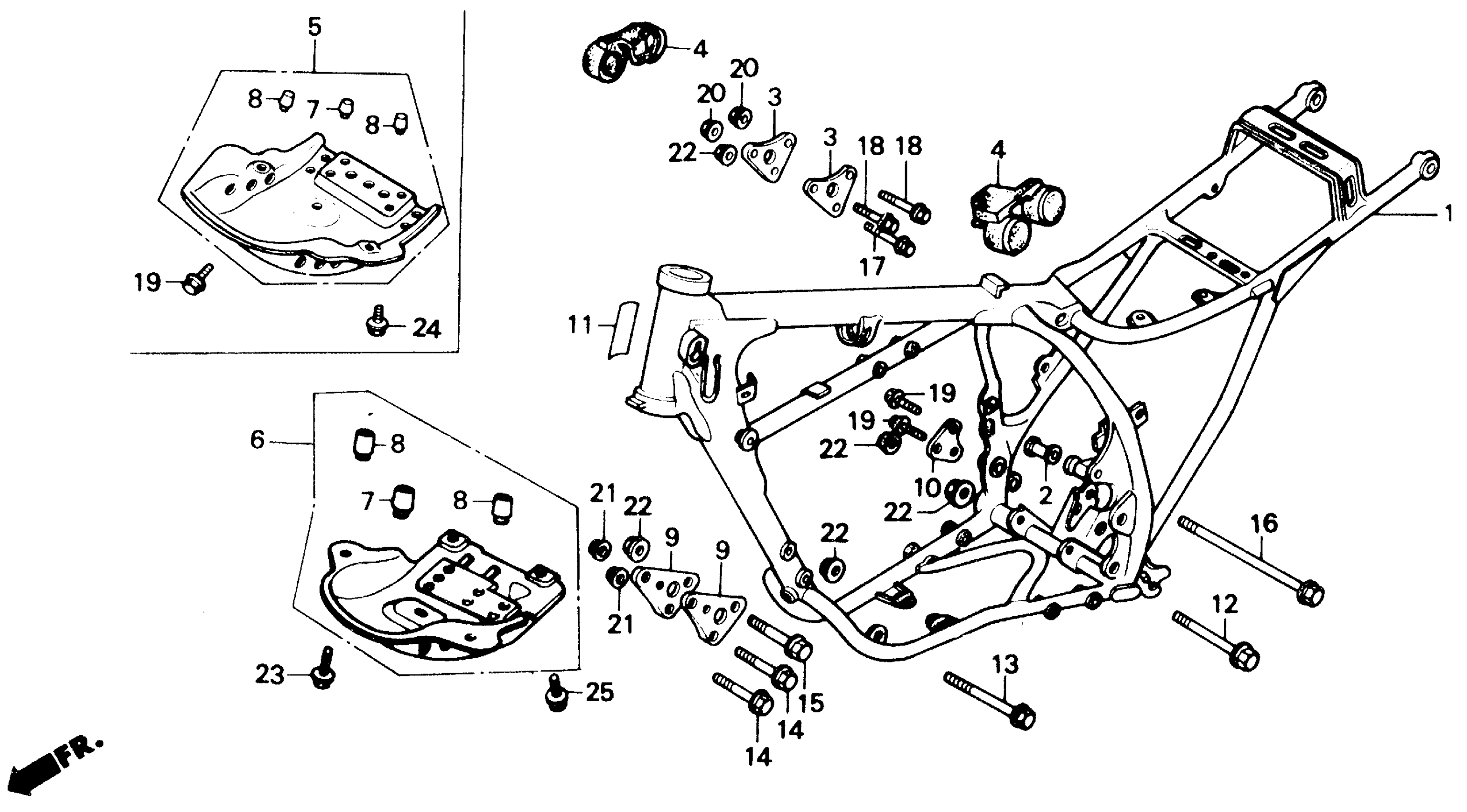

Honda XR250RA (84) MOTORCYCLE, JPN, VIN# JH2ME060-EK000004 TO JH2ME060-EK006272 FRAME 84-85 Diagram

#

Description
Price

1

FRAME *R119* (FLASH RED) (NOT AVAILABLE)

50100-KK0-000ZA

Unavailable

2

COLLAR, R. RR. ENGINE HANGER (UPPER) *R119* (FLASH RED) (NOT AVAILABLE)

50135-KK0-000ZA

Unavailable

3

PLATE, ENGINE HANGER (UPPER) (NOT AVAILABLE)

50138-KK1-000

Unavailable

5

PLATE, SKID (NOT AVAILABLE)

50351-KK0-000

Unavailable

7

RUBBER B, STOPPER

50354-434-000

$4.97

8

RUBBER C, STOPPER

50355-434-000

$4.13

9

PLATE, FR. ENGINE HANGER (NOT AVAILABLE)

50531-KK0-000

Unavailable

10

PLATE, RR. ENGINE HANGER (NOT AVAILABLE)

50532-KK0-000

Unavailable

11

LABEL, CAUTION *NH0* (CHAMPIONSHIP WHITE) (NOT AVAILABLE)

87560-373-780ZA

Unavailable

12

BOLT, FLANGE (10X110)

90105-MG3-000

$8.41

13

BOLT, FLANGE (10X100) (SOURCE: VINTAGE PARTS INC.)

90108-KK0-000

Unavailable

14

BOLT, FLANGE (8X68) (NOT AVAILABLE)

90112-KF0-000

Unavailable

15

BOLT, FLANGE (10X72) This part replaces 90114-KF0-000.

90150-KF0-000

$14.28

15

BOLT, FLANGE (10X72)

90150-KF0-000

$14.28

16

BOLT, FLANGE (10X239)

90117-KK0-000

$10.40

17

BOLT, FLANGE (10X55)

90153-KF0-000

$8.40

18

BOLT, FLANGE (8X55) This part replaces 90154-MG3-000.

90159-KA2-000

Unavailable

19

BOLT, FLANGE (8X16) This part replaces 90213-KF0-000.

96300-08016-00

$1.28

19

BOLT, FLANGE (8X16)

96300-08016-00

$1.28

20

NUT, HEX. (8MM)

90309-357-000

$3.16

21

NUT, FLANGE (8MM)

94050-08000

$0.86

22

NUT, FLANGE (10MM)

94050-10000

$1.41

24

BOLT, FLANGE (6X10) This part replaces 96000-06010-00.

96001-06010-00

$1.48

24

BOLT, FLANGE (6X10)

96001-06010-00

$1.48
