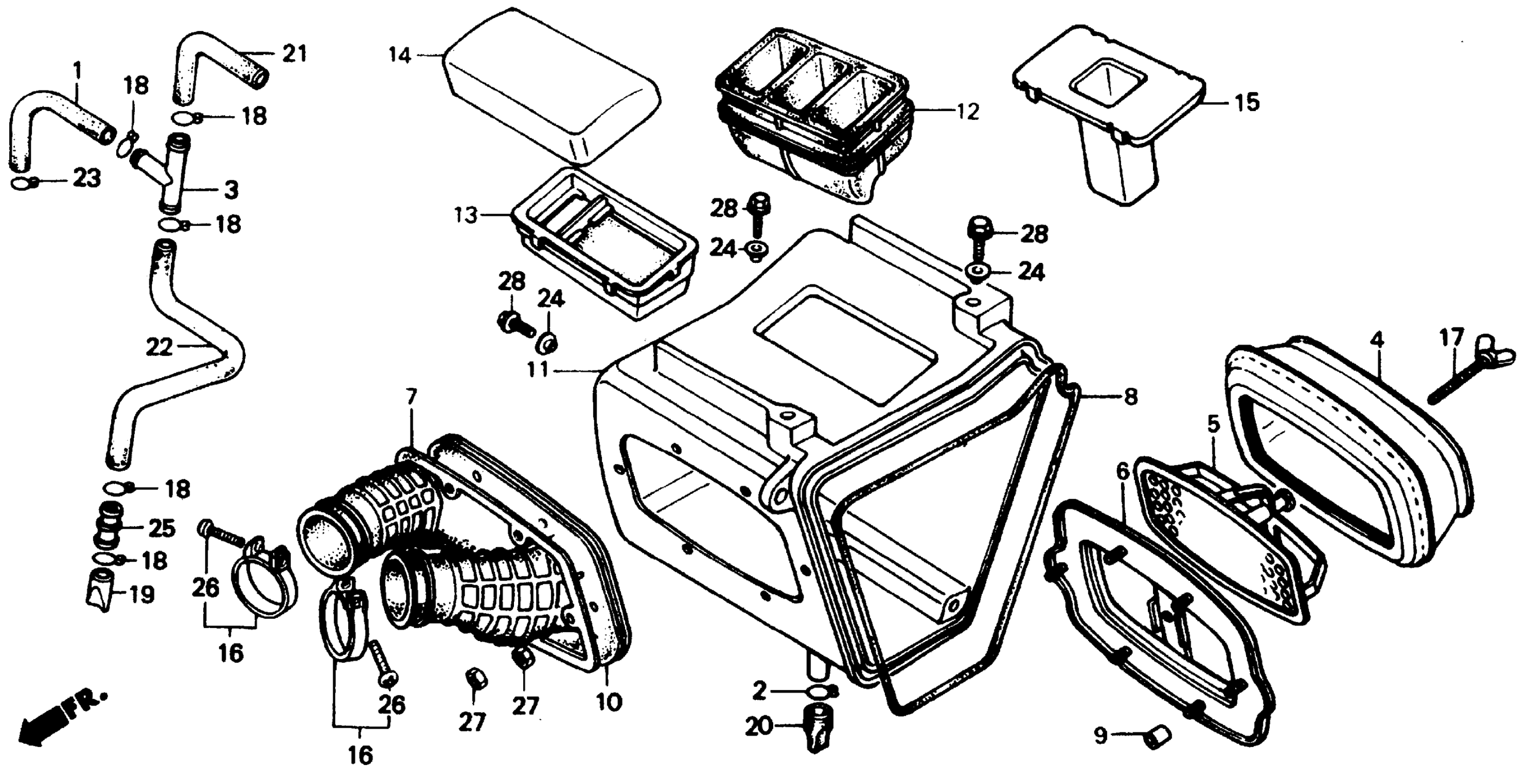

Honda XR250RA (84) MOTORCYCLE, JPN, VIN# JH2ME060-EK000004 TO JH2ME060-EK006272 AIR CLEANER 84-85 Diagram

#

Description
Price

1

TUBE, BREATHER (NOT AVAILABLE)

15761-KK0-000

Unavailable

2

CLIP, BREATHER TUBE

15772-292-010

$2.80

3

JOINT, BREATHER THREE WAY

15772-376-000

$17.75

4

ELEMENT, AIR CLEANER

17213-KK0-000

$22.30

5

HOLDER, ELEMENT (NOT AVAILABLE)

17214-KK0-010

Unavailable

6

PLATE, ELEMENT SETTING (NOT AVAILABLE)

17216-KK0-000

Unavailable

7

PLATE, HOLDER

17217-KK0-000

$21.19

8

SEAL, AIR CLEANER COVER This part replaces 17219-KK0-000.

17222-MN4-405

$6.80

8

SEAL, AIR CLEANER COVER

17222-MN4-405

$6.80

9

COLLAR, CONNECTING TUBE SETTING

17221-KA4-300

$2.20

10

TUBE, AIR CLEANER CONNECTING (NOT AVAILABLE)

17222-KK1-000

Unavailable

11

HOUSING, AIR CLEANER (NOT AVAILABLE)

17230-KK0-000

Unavailable

12

DUCT, AIR CLEANER IN. (NOT AVAILABLE)

17240-KK0-000

Unavailable

13

CAP, IN. DUCT (NOT AVAILABLE)

17241-KK0-000

Unavailable

14

COVER, IN. DUCT (NOT AVAILABLE)

17242-KK0-000

Unavailable

16

BAND, AIR CLEANER CONNECTING TUBE (50) This part replaces 17255-KK0-000.

95018-50250

$7.06

16

BAND, AIR CLEANER CONNECTING TUBE (50) This part replaces 90652-GHB-680.

95018-50250

$7.06

16

BAND, AIR CLEANER CONNECTING TUBE (50)

95018-50250

$7.06

17

BOLT, AIR CLEANER ELEMENT SETTING (NOT AVAILABLE)

17291-KA4-700

Unavailable

18

CLIP, BREATHER TUBE

17316-611-000

$8.28

19

TUBE, DRAIN

17358-170-000

$3.49

20

TUBE, DRAIN

17359-KK0-000

$6.64

21

TUBE A, BREATHER

17373-KK0-000

Unavailable

22

TUBE B, BREATHER (NOT AVAILABLE)

17374-KK0-000

Unavailable

23

CLIP, SUB-TANK HOSE

17724-102-700

Unavailable

24

WASHER, CHAIN CASE SETTING

90522-028-000

$2.62

25

JOINT, TUBE

91463-393-780

$1.64

26

SCREW, PAN (5X32)

93500-05032-0G

$0.46

27

NUT, HEX. (5MM)

94002-05000-0S

$0.94

28

BOLT, FLANGE (6X10) This part replaces 96000-06010-00.

96001-06010-00

$1.48

28

BOLT, FLANGE (6X10)

96001-06010-00

$1.48
