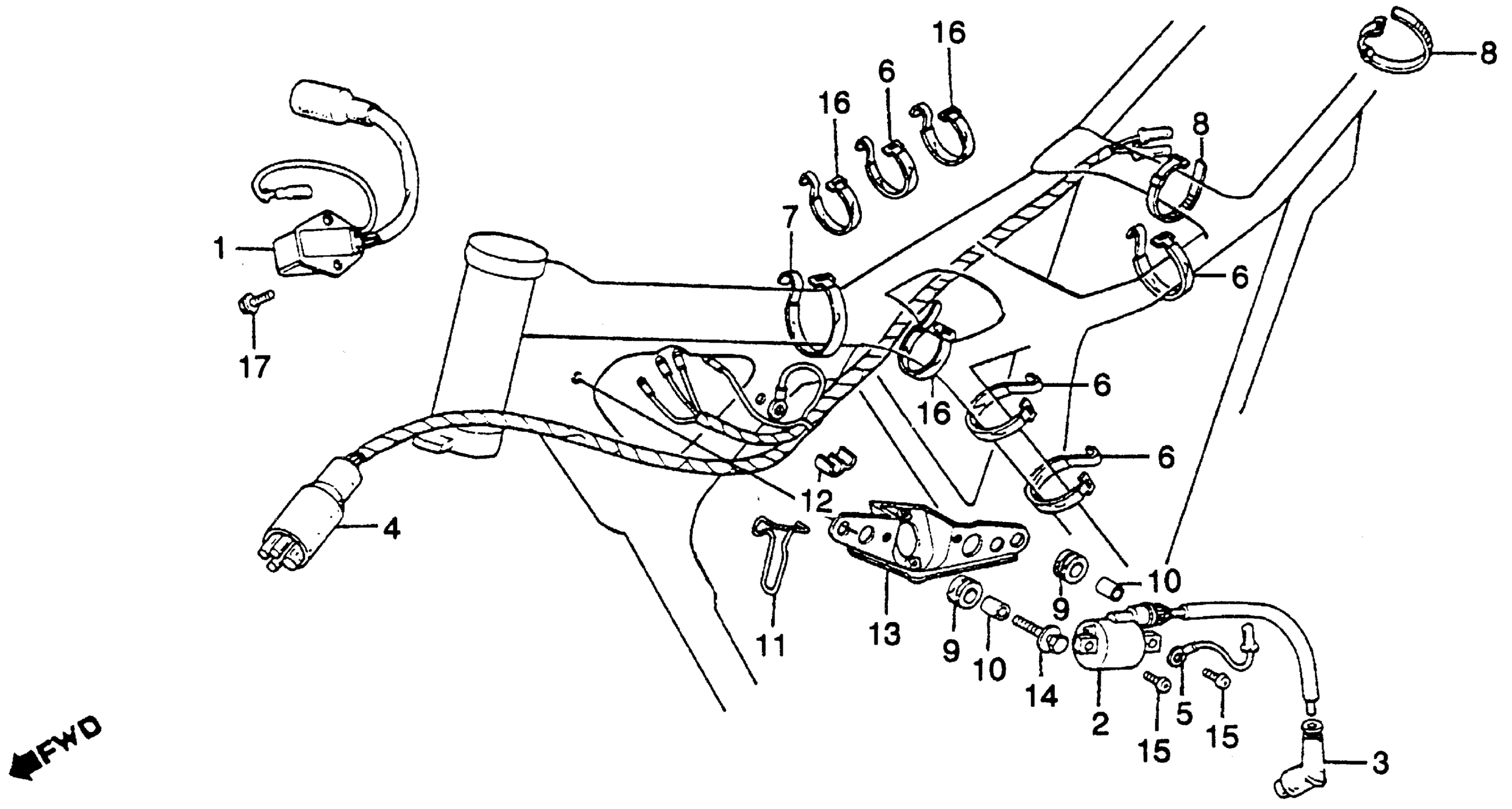

Honda XR250RA (82) MOTORCYCLE, JPN, VIN# JH2ME010-CM300008 WIRE HARNESS + C.D.I. UNIT + IGNITION COIL Diagram

MODULE, IGNITION CONTROL (CDI)

30400-MA0-008

Unavailable

COIL ASSY., IGNITION This part replaces 30500-KA2-000.

30500-VM3-405

Unavailable

COIL ASSY., IGNITION This part replaces 30500-MA0-000.

30500-VM3-405

Unavailable

COIL ASSY., IGNITION

30500-VM3-405

Unavailable

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-KA2-003.

30700-MA0-163

$22.32

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-MA0-153.

30700-MA0-163

$22.32

CAP ASSY., NOISE SUPPRESSOR

30700-MA0-163

$22.32

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-MC4-153.

30700-MA0-163

$22.32

WIRE HARNESS (NOT AVAILABLE)

32100-MA0-000

Unavailable

WIRE HARNESS (NOT AVAILABLE) This part replaces 32100-MA0-770.

32100-MA0-000

Unavailable

CABLE A, SUB (NOT AVAILABLE)

32111-MA0-000

Unavailable

BAND, CABLE

32161-MA0-000

Unavailable

BAND, CABLE

32161-399-000

Unavailable

BAND B1, CABLE

32161-404-000

$2.23

GROMMET A, TUBE This part replaces 36043-657-000.

36037-657-000

$6.16

COLLAR, METER SETTING (NOT AVAILABLE)

37243-371-008

Unavailable

CLIP, CABLE

45464-428-610

Unavailable

CLIP, FR. BRAKE CABLE

45465-270-000

$4.94

CLIP, FR. BRAKE CABLE This part replaces 45465-341-700.

45465-270-000

$4.94

PLATE, ELECTRIC BASE (NOT AVAILABLE)

50300-MA0-000

Unavailable

BOLT-WASHER (6X20)

93404-06020-00

$1.55

BOLT-WASHER (6X20) This part replaces 93494-06020-00.

93404-06020-00

$1.55

SCREW, PAN (5X16)

93500-05016-0A

$1.49

BAND B1, CABLE

32161-404-000

$2.23

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
