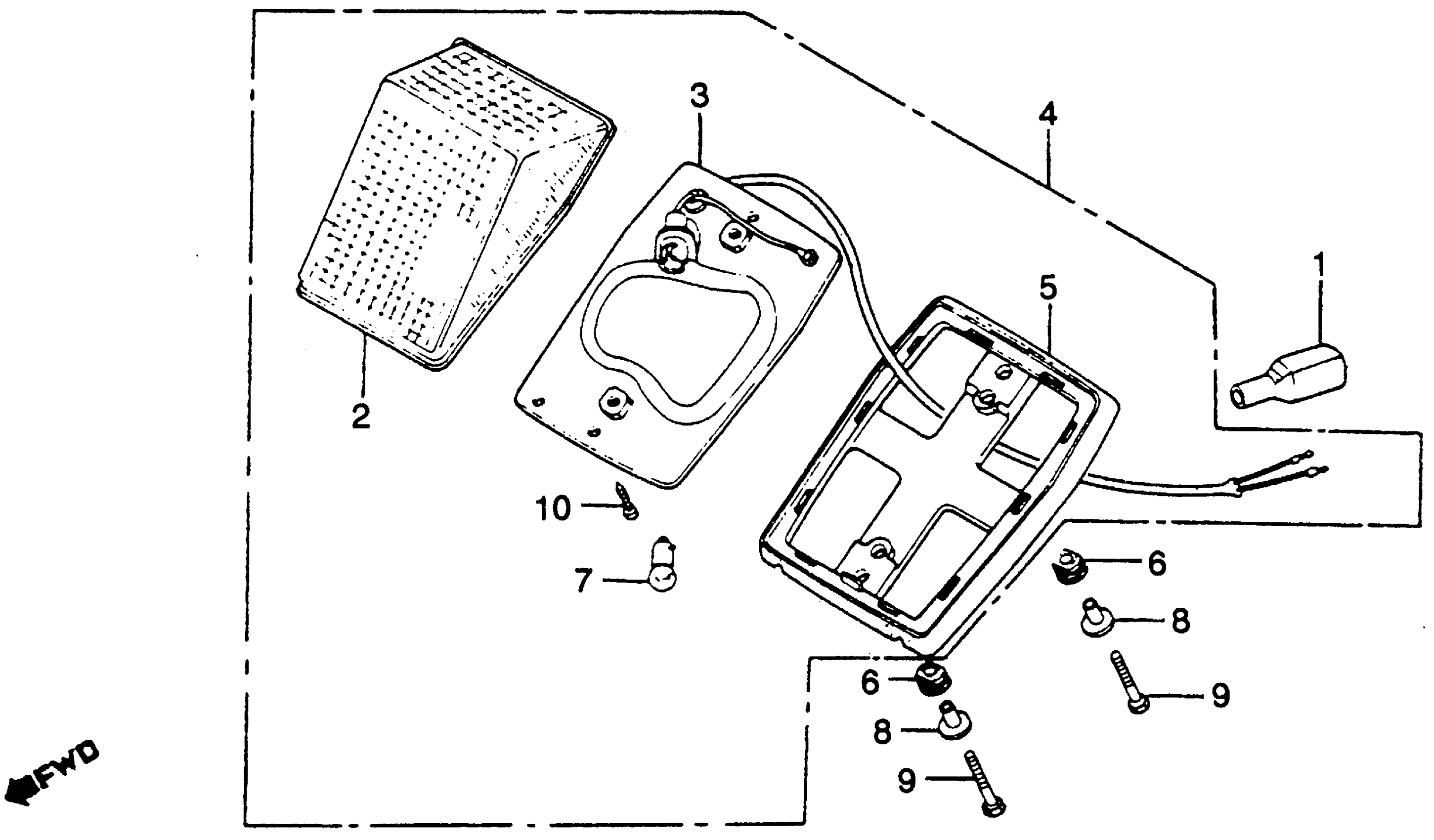

Honda XR250RA (82) MOTORCYCLE, JPN, VIN# JH2ME010-CM300008 TAILLIGHT Diagram

#

Description
Price

1

COVER, CONNECTOR

32109-333-000

Unavailable

2

LENS, TAILLIGHT

33141-MA0-003

Unavailable

3

BASE, TAILLIGHT (NOT AVAILABLE)

33142-MA0-003

Unavailable

4

TAILLIGHT UNIT (6V3W) (NOT AVAILABLE)

33701-MA0-003

Unavailable

5

BODY, TAILLIGHT (NOT AVAILABLE)

33702-MA0-003

Unavailable

6

RUBBER, TAILLIGHT (NOT AVAILABLE)

33703-MA0-000

Unavailable

7

BULB, DASH (6V3W) (STANLEY)

34902-202-000

$2.85

8

COLLAR, SIDE COVER

61104-435-000

$4.70

9

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

$1.06

9

BOLT, HEX. (6X28)

92101-06028-0A

$1.06

10

SCREW, TAPPING (3X12)

93901-22310

$0.75
