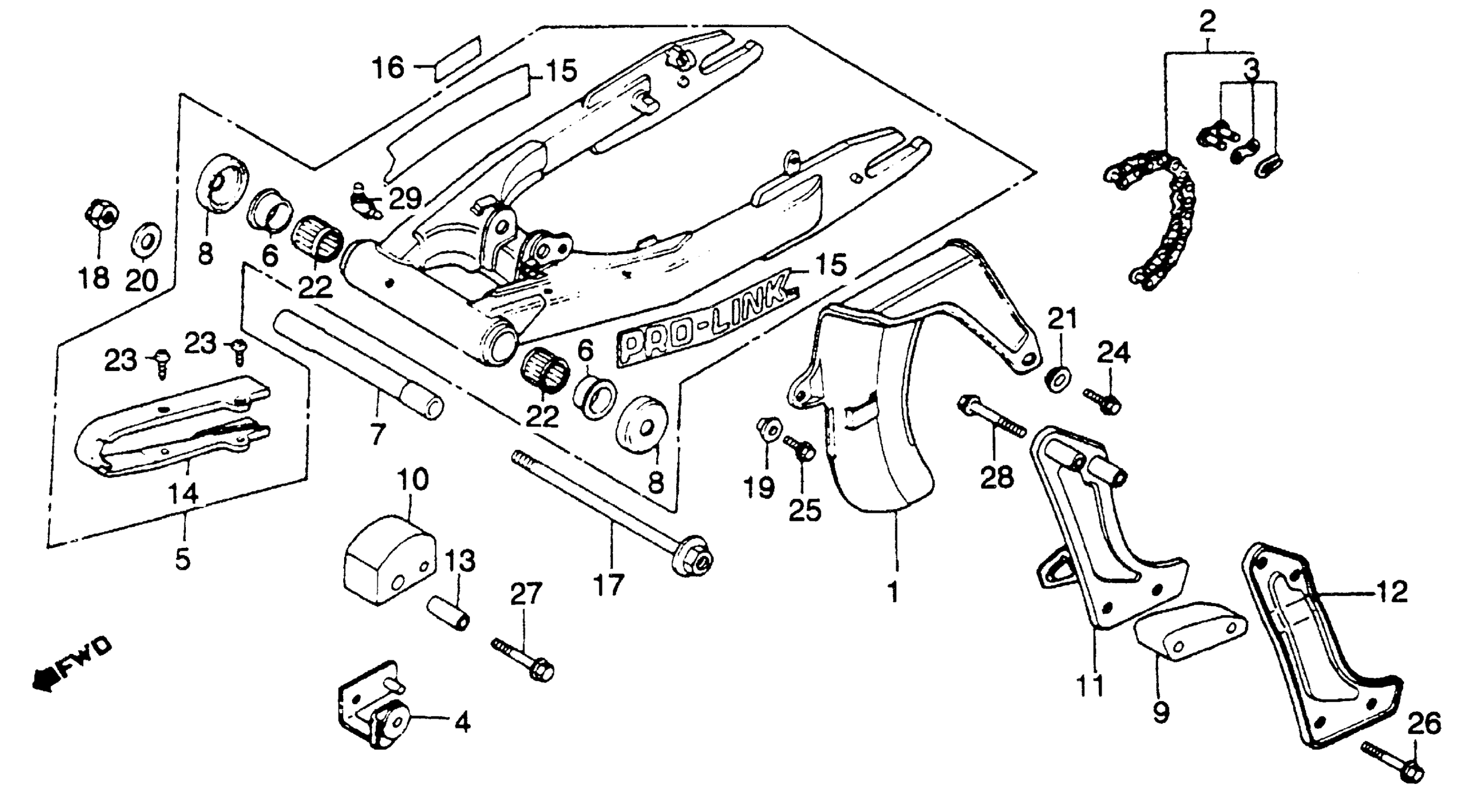

Honda XR250RA (82) MOTORCYCLE, JPN, VIN# JH2ME010-CM300008 SWINGARM + CHAIN CASE 82 Diagram

#

Description
Price

1

CASE, DRIVE CHAIN (NOT AVAILABLE)

40510-MA0-000

Unavailable

2

CHAIN, DRIVE

405W3-KA4-505

Unavailable

2

CHAIN, DRIVE This part replaces 40530-KA2-003.

405W3-KA4-505

Unavailable

2

CHAIN, DRIVE This part replaces 40530-KA6-003.

405W3-KA4-505

Unavailable

3

MASTER LINK This part replaces 40531-357-305.

40531-958-003

Unavailable

3

MASTER LINK This part replaces 40531-381-000.

40531-958-003

Unavailable

3

MASTER LINK This part replaces 40531-430-003.

40531-958-003

Unavailable

3

MASTER LINK This part replaces 40531-430-005.

40531-958-003

Unavailable

3

MASTER LINK This part replaces 40531-434-003.

40531-958-003

Unavailable

3

MASTER LINK

40531-958-003

Unavailable

3

MASTER LINK This part replaces 40540-357-305.

40531-958-003

Unavailable

4

STAY, TENSIONER

50143-MA0-770

Unavailable

5

SWINGARM ASSY., RR. *NH35M* (CLOUD SILVER METALLIC)

52100-KA6-010ZA

Unavailable

6

BUSH, PIVOT THRUST

52109-430-300

$16.01

7

COLLAR, SWINGARM CENTER

52141-435-730

Unavailable

8

CAP, DUST SEAL (NOK) This part replaces 52144-268-000.

52144-356-005

$17.31

8

CAP, DUST SEAL (NOK) This part replaces 52144-286-000.

52144-356-005

$17.31

8

CAP, DUST SEAL (NOK) This part replaces 52144-329-000.

52144-356-005

$17.31

8

CAP, DUST SEAL (NOK) This part replaces 52144-356-003.

52144-356-005

$17.31

8

CAP, DUST SEAL (NOK)

52144-356-005

$17.31

9

SLIDER, CHAIN GUIDE

52147-MA0-770

Unavailable

10

SLIDER, CHAIN

52155-MA0-770

Unavailable

11

GUIDE, R. CHAIN

52156-KA6-770

Unavailable

12

GUIDE, L. CHAIN (NOT AVAILABLE)

52157-KA6-770

Unavailable

13

COLLAR, CHAIN ROLLER

52159-169-000

Unavailable

14

SLIDER, CHAIN

52170-MA0-000

Unavailable

15

EMBLEM, SWINGARM (NOT AVAILABLE)

87121-MA0-300

Unavailable

16

LABEL, MUFFLER CAUTION

87504-028-670

$2.92

17

BOLT, SWINGARM PIVOT

90121-MA0-770

Unavailable

18

NUT, AXLE (14MM) This part replaces 90305-197-003.

90305-197-013

$6.14

18

NUT, AXLE (14MM)

90305-197-013

$6.14

19

WASHER, FR. COVER SETTING

90501-124-000

$3.74

20

WASHER, SWINGARM PIVOT

90501-447-000

Unavailable

21

WASHER (6X9)

90513-323-000

$1.84

22

BEARING, RR. SWINGARM PIVOT (TOYO)

91071-MA0-003

$33.10

22

BEARING, RR. SWINGARM PIVOT (TOYO) This part replaces 91071-MA0-004.

91071-MA0-003

$33.10

23

SCREW, TAPPING (6X12)

93901-26110

$1.49

24

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

24

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

25

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

25

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

26

BOLT, FLANGE (6X35) This part replaces 95700-06035-00.

95701-06035-00

$1.80

26

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

27

BOLT, FLANGE (6X40) This part replaces 95700-06040-00.

95701-06040-00

$1.80

27

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

28

BOLT, FLANGE (8X40) This part replaces 95700-08040-00.

95701-08040-00

$1.49

28

BOLT, FLANGE (8X40)

95701-08040-00

$1.49

29

FITTING, GREASE (B.76S)

96201-80000

$2.56
