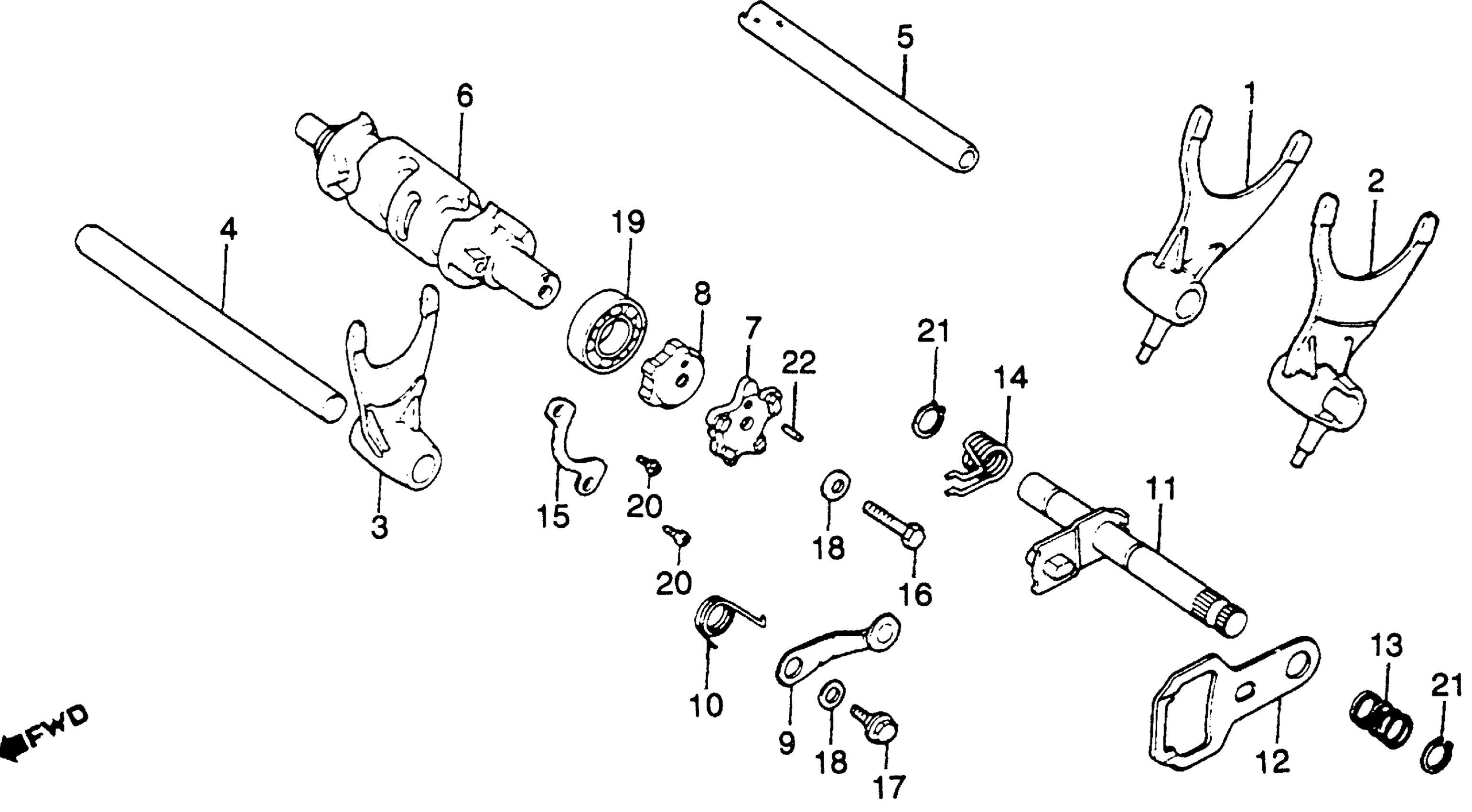

Honda XR250RA (82) MOTORCYCLE, JPN, VIN# JH2ME010-CM300008 SHIFT DRUM + SHIFT FORK Diagram

#

Description
Price

1

FORK, R. GEARSHIFT (NOT AVAILABLE) This part replaces 24211-429-000.

24211-429-010

Unavailable

1

FORK, R. GEARSHIFT

24211-429-010

Unavailable

2

FORK, L. GEARSHIFT (NOT AVAILABLE)

24212-KA6-000

Unavailable

3

FORK, CENTER GEARSHIFT (NOT AVAILABLE)

24213-429-000

Unavailable

4

SHAFT, GEARSHIFT FORK GUIDE

24241-399-000

$16.72

5

MAINSHAFT, GEARSHIFT FORK (NOT AVAILABLE)

24265-429-020

Unavailable

6

DRUM, GEARSHIFT (NOT AVAILABLE)

24301-KA6-000

Unavailable

7

CAM, GEARSHIFT

24411-KA6-000

Unavailable

8

ROTOR, POSITIVE STOPPER

24413-KA6-003

Unavailable

9

STOPPER, GEARSHIFT DRUM (NOT AVAILABLE)

24430-KA6-000

Unavailable

10

SPRING, SHIFT DRUM STOPPER (NOT AVAILABLE) This part replaces 24435-428-000.

24435-413-000

Unavailable

10

SPRING, SHIFT DRUM STOPPER (NOT AVAILABLE) This part replaces 24435-471-000.

24435-413-000

Unavailable

11

SPINDLE, GEARSHIFT (NOT AVAILABLE)

24610-KA6-000

Unavailable

12

PLATE, GEARSHIFT

24621-446-650

$13.10

13

SPRING, GEARSHIFT PLATE

24631-362-000

Unavailable

14

SPRING, GEARSHIFT RETURN (NOT AVAILABLE)

24651-473-000

Unavailable

15

PLATE, BEARING SETTING (NOT AVAILABLE)

24710-362-000

Unavailable

16

BOLT, HEX. (6X30) (NOT AVAILABLE)

90011-KA6-000

Unavailable

17

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT This part replaces 90023-041-000.

90023-041-010

$2.25

17

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

90023-041-010

$2.25

18

WASHER, SPARK ADVANCER SETTING

90486-028-000

$2.13

19

BEARING, RADIAL BALL (16003) This part replaces 91008-KK6-000.

91011-KK6-013

$15.40

19

BEARING, RADIAL BALL (16003) This part replaces 91008-362-000.

91011-KK6-013

$15.40

19

BEARING, RADIAL BALL (16003) This part replaces 91010-HC0-003.

91011-KK6-013

$15.40

19

BEARING, RADIAL BALL (16003)

91011-KK6-013

$15.40

20

SCREW, FLAT (6X12) This part replaces 93600-06012.

93600-06012-0A

$1.49

20

SCREW, FLAT (6X12)

93600-06012-0A

$1.49

21

CIRCLIP (OUTER) (12MM)

94510-12000

$1.78

22

ROLLER (3X8.5)

96220-30085

$1.49
