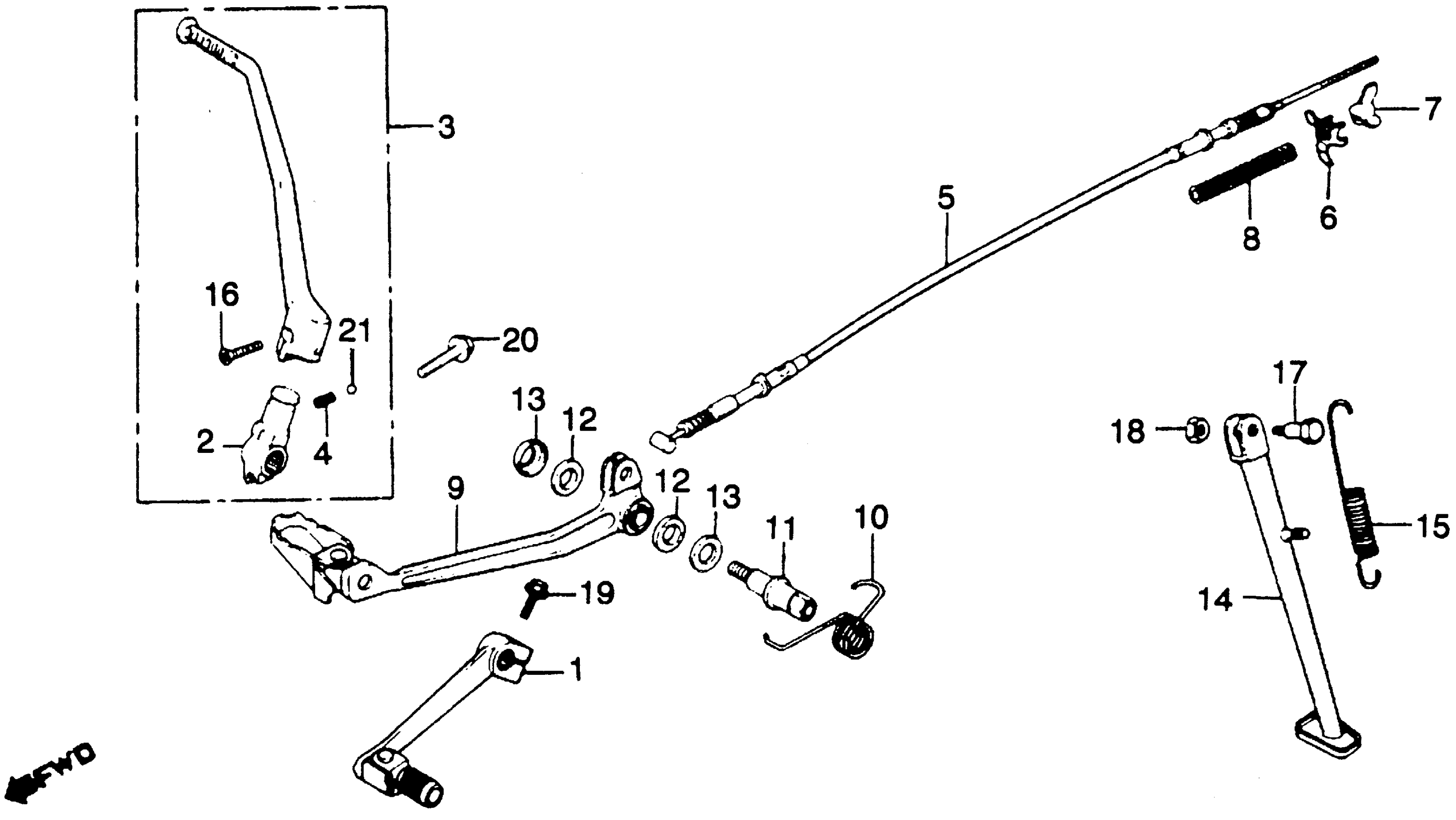

Honda XR250RA (82) MOTORCYCLE, JPN, VIN# JH2ME010-CM300008 PEDAL + KICK STARTER ARM Diagram

#

Description
Price

1

PEDAL, GEARSHIFT (NOT AVAILABLE)

24700-MA0-000

Unavailable

2

JOINT, KICK ARM (NOT AVAILABLE)

28241-428-871

Unavailable

3

ARM, KICK STARTER This part replaces 28300-428-871.

28300-KB7-910

Unavailable

4

SPRING, KICK STARTER STOPPER

28333-300-000

$2.92

5

CABLE, RR. BRAKE

43450-MA0-000

Unavailable

6

PLATE, BRAKE CABLE FIXING

43454-MA0-000

Unavailable

7

NUT, BRAKE ADJUST

43459-434-000

$15.27

8

SPRING A, BRAKE CABLE (NOT AVAILABLE)

45452-044-300

Unavailable

9

PEDAL, BRAKE (NOT AVAILABLE)

46500-MA0-000

Unavailable

10

SPRING, BRAKE PEDAL This part replaces 46514-MA0-000.

46514-428-900

Unavailable

11

SHAFT, RR. BRAKE

46515-429-000

$26.56

12

DUST SEAL, BRAKE PEDAL

46516-430-000

Unavailable

13

WASHER, BRAKE PIVOT

46518-361-000

Unavailable

14

BAR, SIDE STAND (NOT AVAILABLE)

50530-MA0-000

Unavailable

15

SPRING, SIDE STAND This part replaces 50535-429-000.

50535-KN5-670

$6.54

16

BOLT, KICK ARM

90101-329-000

$3.67

17

SCREW, SIDE STAND PIVOT

90108-KL8-710

Unavailable

17

SCREW, SIDE STAND PIVOT This part replaces 90108-429-000.

90108-KL8-710

Unavailable

18

NUT, HEX. (10MM)

94030-10000

$1.49

19

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

19

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

20

BOLT, FLANGE (8X28) This part replaces 95700-08028-00.

95701-08028-00

$1.49

20

BOLT, FLANGE (8X28)

95701-08028-00

$1.49

21

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
