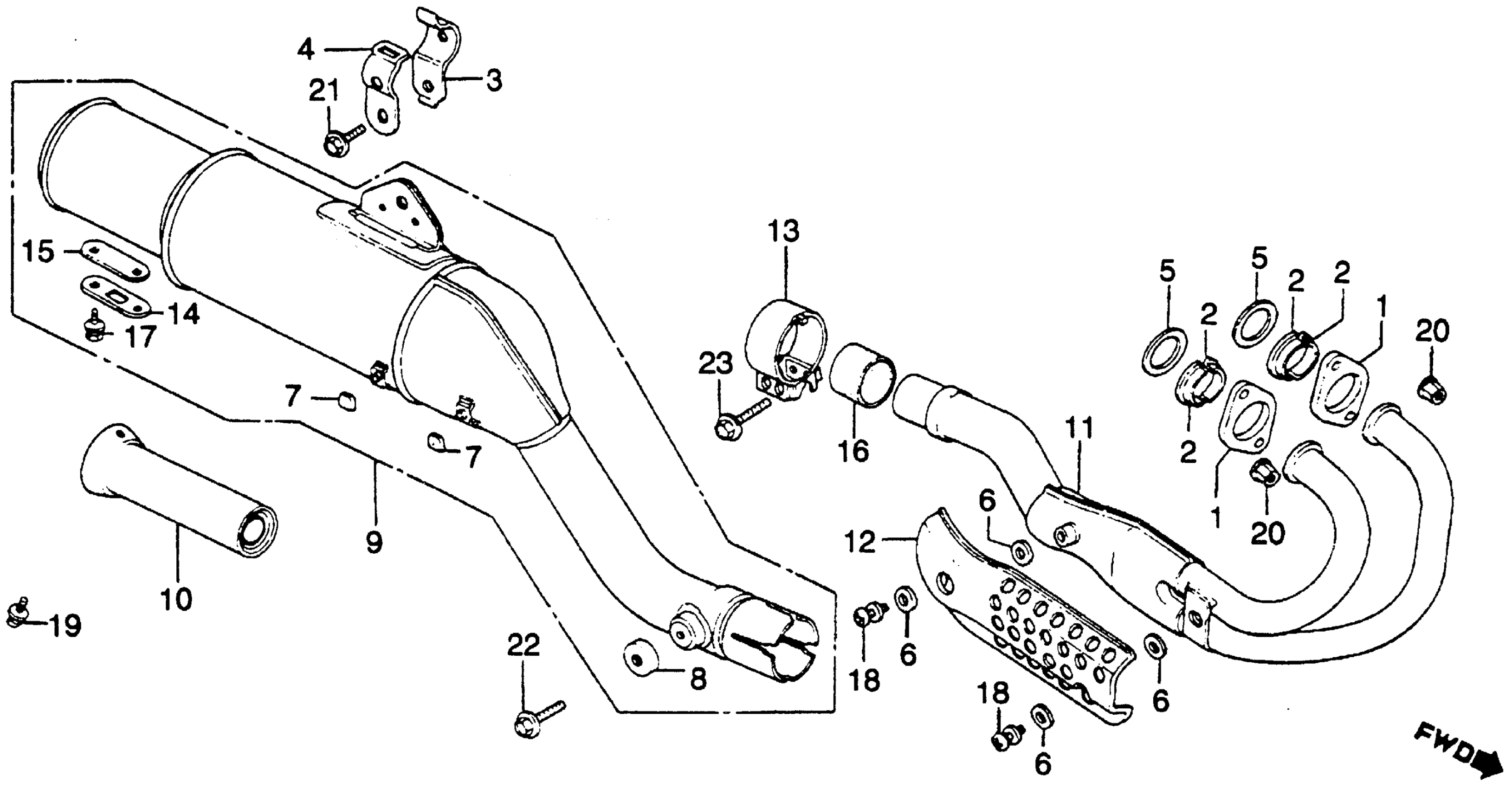

Honda XR250RA (82) MOTORCYCLE, JPN, VIN# JH2ME010-CM300008 MUFFLER Diagram

#

Description
Price

1

JOINT, EX. PIPE

18231-429-000

Unavailable

2

COLLAR, EX. PIPE JOINT

18233-435-000

$8.52

3

BAND A, MUFFLER (NOT AVAILABLE)

18283-MA0-000

Unavailable

4

BAND B, MUFFLER (NOT AVAILABLE)

18284-MA0-000

Unavailable

5

GASKET, EX. PIPE

18291-MN5-650

$3.77

5

GASKET, EX. PIPE This part replaces 18291-216-000.

18291-MN5-650

$3.77

6

GASKET, PROTECTOR This part replaces 18292-KF9-900.

18292-MM9-740

$3.03

6

GASKET, PROTECTOR

18292-MM9-740

$3.03

6

GASKET, PROTECTOR This part replaces 18292-415-000.

18292-MM9-740

$3.03

7

RUBBER, PROTECTOR GASKET

18293-147-000

$4.04

8

GASKET B, MUFFLER This part replaces 18295-KS3-920.

18295-KV6-920

Unavailable

8

GASKET B, MUFFLER This part replaces 18295-KZ1-670.

18295-KV6-920

Unavailable

8

GASKET B, MUFFLER This part replaces 18295-429-000.

18295-KV6-920

Unavailable

9

MUFFLER, EX. | Use up to Frame SN CM301342 This part replaces 18310-MA0-000.

18310-MA0-651

Unavailable

9

MUFFLER, EX. This part replaces 18310-MA0-010.

18310-MA0-651

Unavailable

9

MUFFLER, EX. | Use up to Frame SN CM301342 This part replaces 18310-MA0-010.

18310-MA0-651

Unavailable

9

MUFFLER, EX.

18310-MA0-651

Unavailable

9

MUFFLER, EX. | Use up to Frame SN CM301342

18310-MA0-651

Unavailable

10

PIPE, TAIL | Use up to Frame SN CM301342 This part replaces 18311-MA0-000.

18311-MA0-010

$67.11

10

PIPE, TAIL

18311-MA0-010

$67.11

10

PIPE, TAIL | Use up to Frame SN CM301342

18311-MA0-010

$67.11

11

PIPE, EX. (NOT AVAILABLE)

18320-KA6-000

Unavailable

12

PROTECTOR, EX. PIPE (NOT AVAILABLE)

18325-429-010

Unavailable

13

BAND, MUFFLER This part replaces 18371-MA0-770.

18376-KV0-000

Unavailable

13

BAND, MUFFLER

18376-KV0-000

Unavailable

14

LID, MUFFLER

18373-429-010

$9.15

15

GASKET, MUFFLER LID

18374-MN1-880

$4.21

15

GASKET, MUFFLER LID This part replaces 18374-429-000.

18374-MN1-880

$4.21

16

GASKET, MUFFLER This part replaces 18391-429-000.

18391-429-010

$15.22

16

GASKET, MUFFLER

18391-429-010

$15.22

17

BOLT-WASHER (6X12)

93401-06012-07

$1.62

17

BOLT-WASHER (6X12) This part replaces 93411-06012-07.

93401-06012-07

$1.62

17

BOLT-WASHER (6X12) This part replaces 93481-06012-07.

93401-06012-07

$1.62

18

SCREW-WASHER (6X12)

93891-06012-00

$1.49

19

SCREW-WASHER (6X12)

93891-06012-07

$1.49

20

NUT, FLANGE (6MM)

94050-06000

$1.49

21

BOLT, FLANGE (8X16) This part replaces 95700-08016-00.

95701-08016-00

$1.80

21

BOLT, FLANGE (8X16)

95701-08016-00

$1.80

22

BOLT, FLANGE (8X20) This part replaces 95700-08020-00.

95701-08020-00

$1.78

22

BOLT, FLANGE (8X20)

95701-08020-00

$1.78

23

BOLT, FLANGE (8X35)

95728-08035-00

Unavailable
