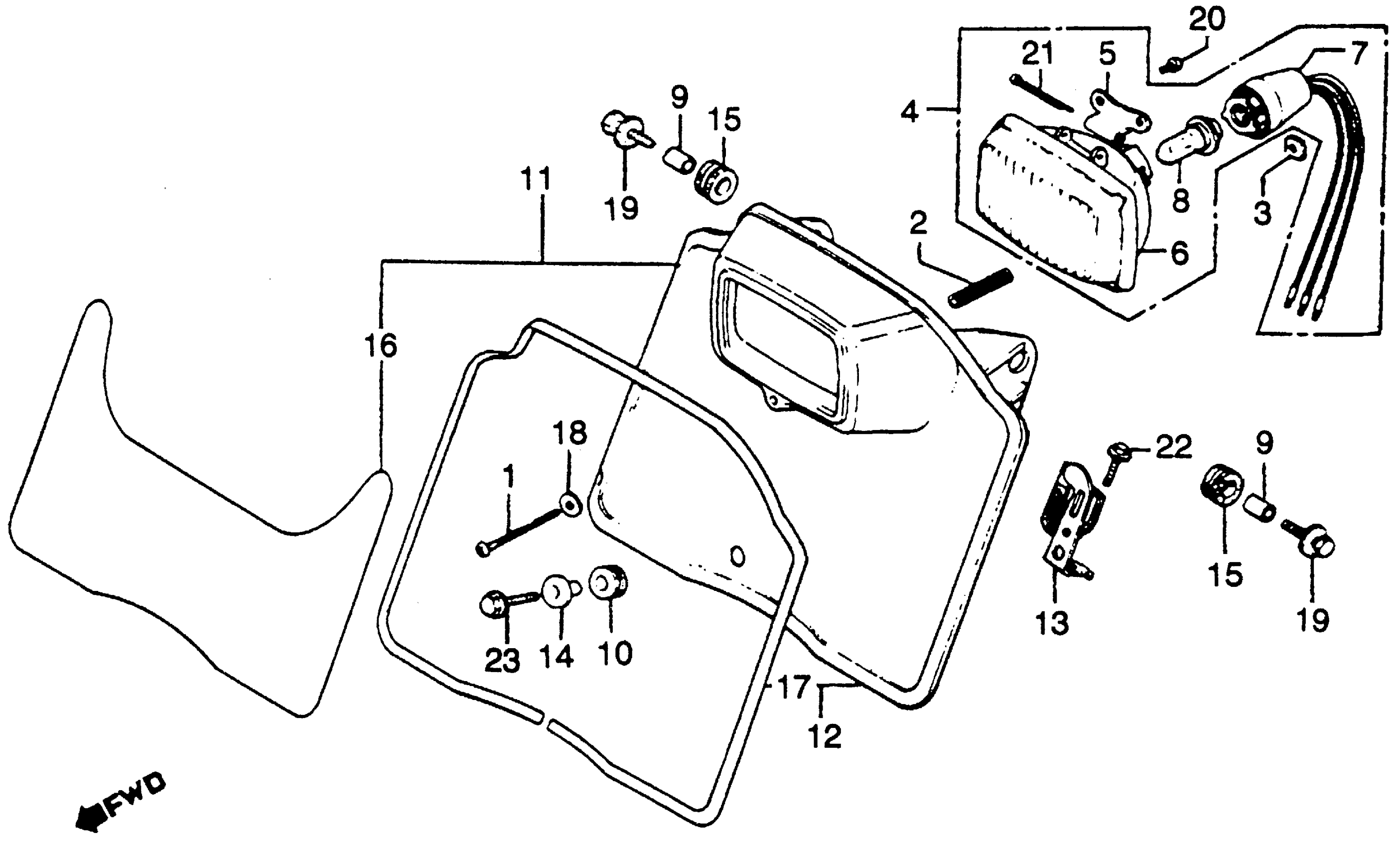

Honda XR250RA (82) MOTORCYCLE, JPN, VIN# JH2ME010-CM300008 HEADLIGHT Diagram

#

Description
Price

1

SCREW, BEAM ADJUSTING (NOT AVAILABLE)

33103-434-670

Unavailable

2

SPRING, HEADLIGHT BEAM ADJUSTING

33107-246-003

$2.23

3

NUT, BEAM ADJ. (STANLEY)

33117-KA2-003

$1.94

4

HEADLIGHT UNIT (NOT AVAILABLE)

33120-434-672

Unavailable

5

STAY, HEADLIGHT (NOT AVAILABLE)

33122-434-671

Unavailable

6

LENS, HEADLIGHT (NOT AVAILABLE)

33125-434-671

Unavailable

7

SOCKET ASSY., HEADLIGHT (NOT AVAILABLE)

33130-434-672

Unavailable

8

BULB, HEADLIGHT (6V25/25W) (STANLEY)

34901-030-003

$9.57

8

BULB, HEADLIGHT (6V25/25W) (STANLEY)

34901-087-640

$9.57

9

COLLAR, STARTER MAGNETIC SWITCH SETTING (NOT AVAILABLE)

35851-292-000

Unavailable

10

RUBBER, FR. FENDER SETTING

61103-357-000

$3.37

11

CASE, HEADLIGHT *R23* (TAHITIAN RED) (NOT AVAILABLE)

61300-MA0-770ZA

Unavailable

13

STAY, HEADLIGHT (LOWER) (NOT AVAILABLE)

61311-MA0-000

Unavailable

14

COLLAR, HEADLIGHT SETTING (NOT AVAILABLE)

61317-429-000

Unavailable

15

RUBBER A, RR. FENDER

80105-061-000

$4.01

16

SHEET, HEADLIGHT CASE (NOT AVAILABLE)

87126-MA0-770

Unavailable

18

WASHER, BEAM ADJ.

90286-147-670

$2.39

19

BOLT-WASHER (6X20)

93404-06020-00

$1.55

19

BOLT-WASHER (6X20) This part replaces 93494-06020-00.

93404-06020-00

$1.55

20

SCREW, TAPPING (4X8)

93901-34110

Unavailable

21

PIN, COTTER (3.0X35)

94201-30350

$1.49

22

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

22

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

23

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.80

23

BOLT, FLANGE (6X25)

95701-06025-00

$1.80
