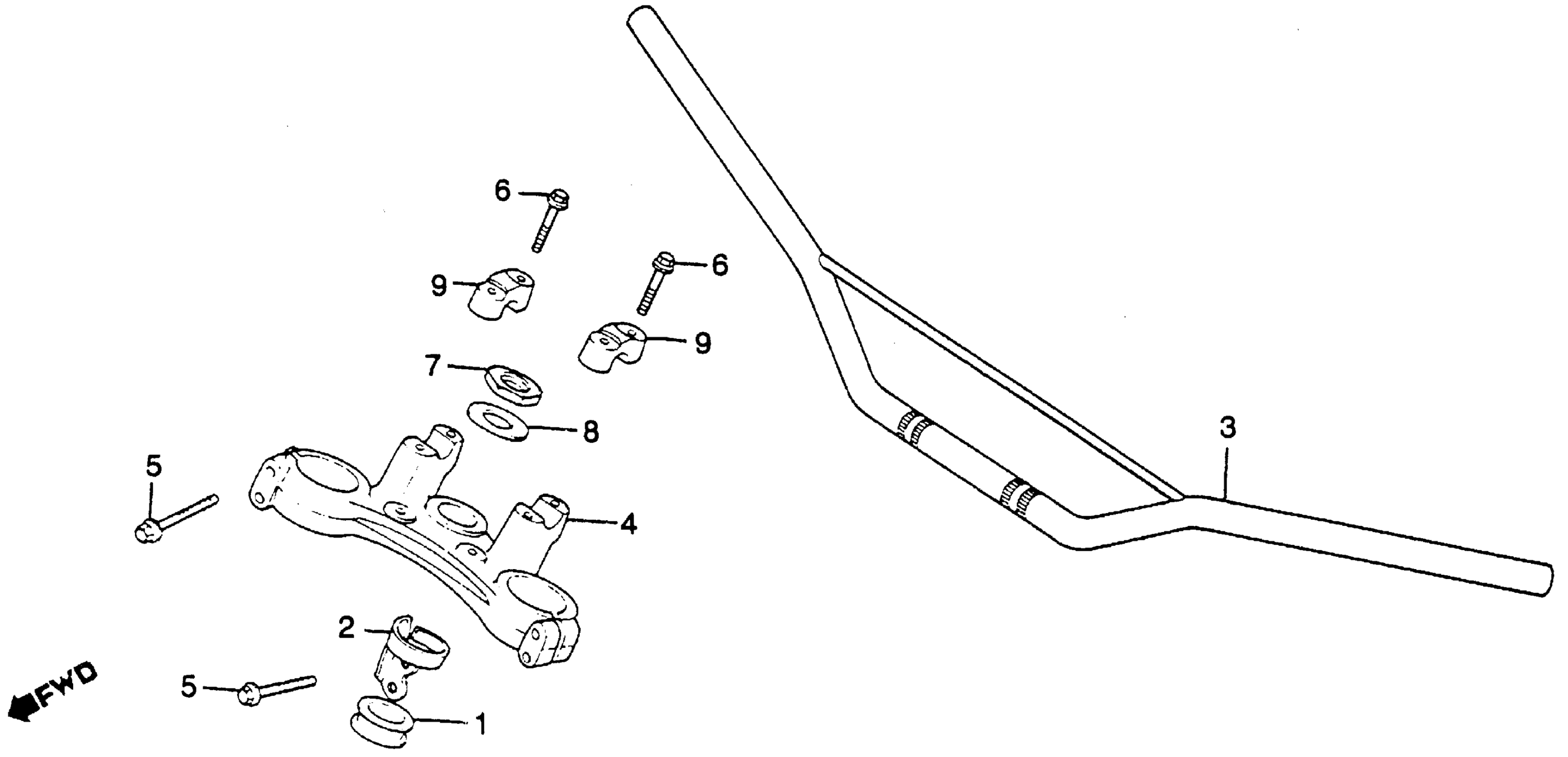

Honda XR250RA (82) MOTORCYCLE, JPN, VIN# JH2ME010-CM300008 HANDLEBAR + TOP BRIDGE Diagram

#

Description

Price

1

GUIDE, CABLE (INNER)

45466-KA4-000

$6.04

2

GUIDE, BRAKE CABLE (NOT AVAILABLE)

45469-MA0-000

Unavailable

3

HANDLEBAR (NOT AVAILABLE)

53100-MA0-000

Unavailable

4

BRIDGE, FORK TOP (NOT AVAILABLE)

53230-MA0-000

Unavailable

5

BOLT, FLANGE (8X45) (NA USE ALT:90103-KF0-000) This part replaces 90103-MA0-000.

90103-KB7-000

Unavailable

6

BOLT, FLANGE (8X36)

90111-362-000

$4.47

7

NUT, STEERING STEM

90304-425-000

$8.70

8

WASHER, STEERING STEM This part replaces 90503-KK0-000.

90503-425-000

$3.90

8

WASHER, STEERING STEM

90503-425-000

$3.90

8

WASHER, STEERING STEM This part replaces 90503-428-870.

90503-425-000

$3.90

9

HOLDER B2, HANDLEBAR (UPPER)

95014-22200

$10.90
