- XR250RA (82) MOTORCYCLE, JPN, VIN# JH2ME010-CM300008
FRONT BRAKE PANEL

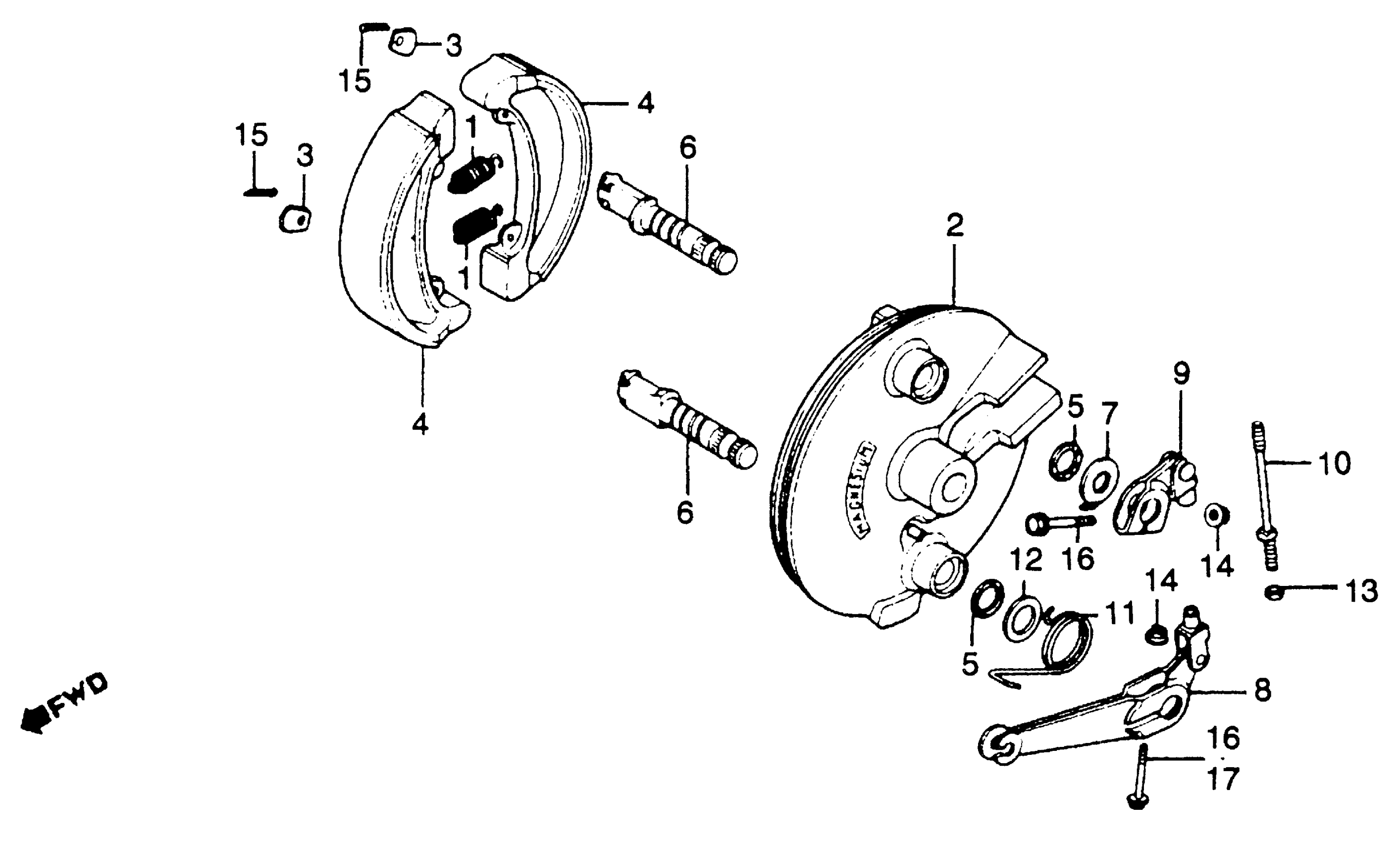

Honda XR250RA (82) MOTORCYCLE, JPN, VIN# JH2ME010-CM300008 FRONT BRAKE PANEL Diagram
#
Description
Price
NI
SHOE KIT, BRAKE
06450-MA0-405
Unavailable
NI
SHOE KIT, BRAKE This part replaces 451A2-MA0-770.
06450-MA0-405
Unavailable
1
SPRING, FR. BRAKE SHOE (NOT AVAILABLE)
45151-MA0-770
Unavailable
2
PANEL, FR. BRAKE (NOT AVAILABLE) | Use up to Frame SN CM301711 This part replaces 45100-MA0-770.
45100-MA0-771
Unavailable
2
PANEL, FR. BRAKE (NOT AVAILABLE)
45100-MA0-771
Unavailable
3
WASHER, ANCHOR PIN (NOT AVAILABLE)
45106-MA0-000
Unavailable
4
*06450-MA0-406 This part replaces 45120-MA0-771.
45120-MA0-305
Unavailable
4
*06450-MA0-406 This part replaces 45120-MA0-772.
45120-MA0-305
Unavailable
6
CAM, FR. BRAKE (NOT AVAILABLE) | Use up to Frame SN CM301711 This part replaces 45141-MA0-770.
45141-MA0-771
Unavailable
6
CAM, FR. BRAKE (NOT AVAILABLE)
45141-MA0-771
Unavailable
7
INDICATOR, FR. BRAKE (NOT AVAILABLE)
45145-413-670
Unavailable
8
ARM A, FR. BRAKE (NOT AVAILABLE)
45410-MA0-000
Unavailable
9
ARM B, FR. BRAKE (NOT AVAILABLE)
45420-MA0-000
Unavailable
10
ROD, BRAKE ARM CONNECTING (NOT AVAILABLE)
45422-MA0-000
Unavailable
11
SPRING, BRAKE ARM RETURN (NOT AVAILABLE) | Use up to Frame SN CM301711
45435-MA0-000
Unavailable
11
SPRING, BRAKE ARM RETURN (NOT AVAILABLE) | Use from Frame SN CM301712
45435-KA4-700
Unavailable
12
WASHER (14MM)
90509-169-000
Unavailable
12
WASHER (14MM) This part replaces 90525-MA0-000.
90509-169-000
Unavailable
16
BOLT, FLANGE (6X32) | Use up to Frame SN CM305182 This part replaces 95700-06032-08.
95701-06032-08
$1.89
16
BOLT, FLANGE (6X32) | Use from Frame SN CM305183 This part replaces 95700-06032-00.
95701-06032-00
$1.89
17
BOLT, FLANGE (6X35) | Use from Frame SN CM305183 This part replaces 95700-06035-00.
95701-06035-00
$1.80
