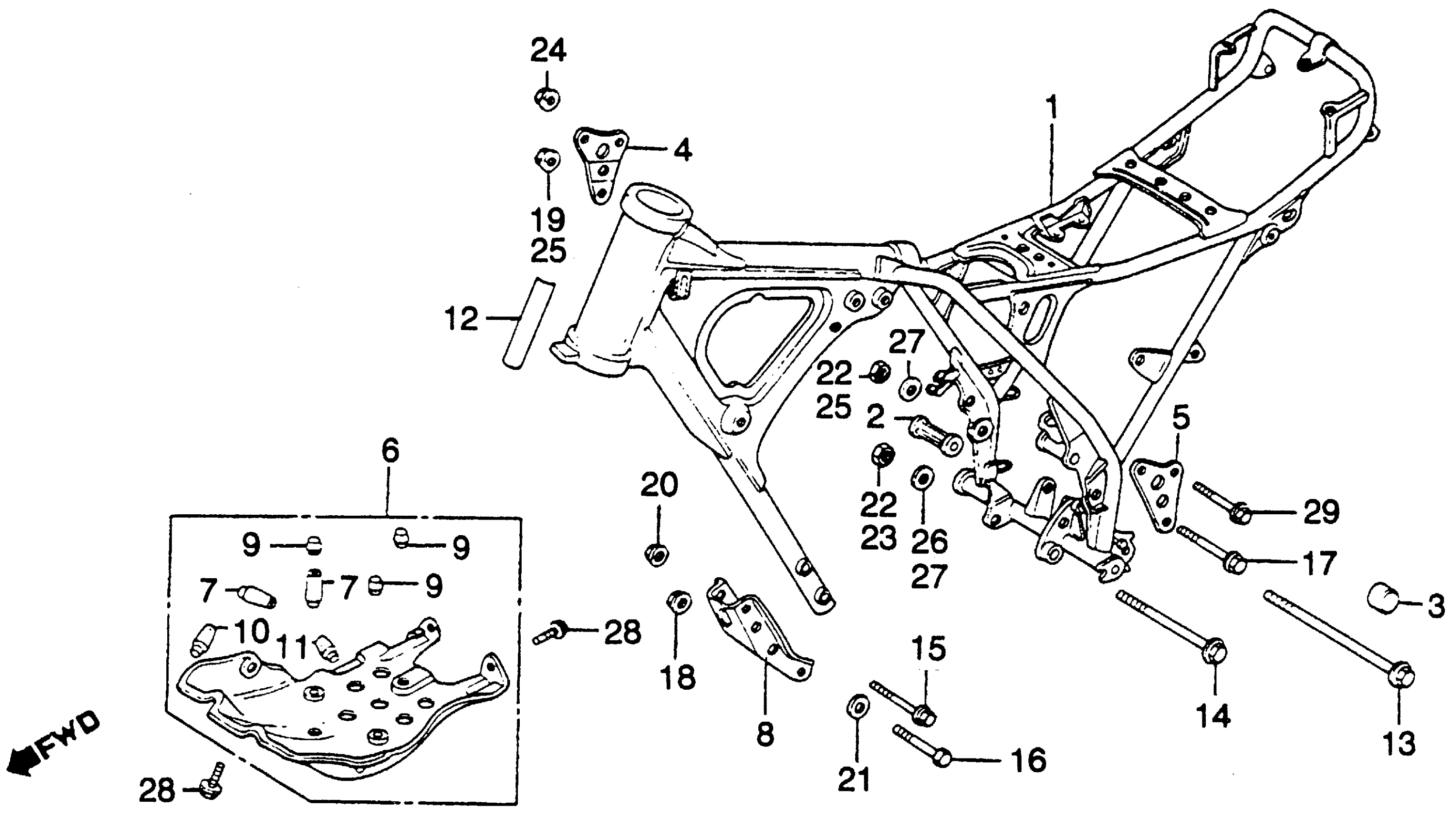

Honda XR250RA (82) MOTORCYCLE, JPN, VIN# JH2ME010-CM300008 FRAME Diagram

#

Description
Price

1

FRAME *R23* (TAHITIAN RED) This part replaces 50100-KA6-770ZA.

50100-MA0-770ZA

Unavailable

1

FRAME *R23* (TAHITIAN RED)

50100-MA0-770ZA

Unavailable

2

COLLAR, ENGINE HANGER *R23* (TAHITIAN RED) (NOT AVAILABLE)

50130-MA0-000ZA

Unavailable

3

PROTECTOR, ENGINE HANGER (NOT AVAILABLE)

50136-KA6-000

Unavailable

4

PLATE, R. ENGINE HANGER (UPPER) *R23* (TAHITIAN RED) (NOT AVAILABLE)

50138-KA6-000ZA

Unavailable

5

PLATE, L. ENGINE HANGER (UPPER) *R23* (TAHITIAN RED) (NOT AVAILABLE)

50139-KA6-000ZA

Unavailable

6

PLATE, SKID (NOT AVAILABLE)

50351-429-770

Unavailable

7

RUBBER A, STOPPER

50352-434-000

$5.17

8

HANGER, FR. ENGINE *R23* (TAHITIAN RED) (NOT AVAILABLE)

50353-MA0-000ZA

Unavailable

9

RUBBER B, STOPPER

50354-428-000

$2.62

10

RUBBER B, STOPPER

50354-434-000

$4.97

11

RUBBER C, STOPPER

50355-434-000

$4.13

12

LABEL, CAUTION *NH0* (CHAMPIONSHIP WHITE) (NOT AVAILABLE)

87560-373-780ZA

Unavailable

13

BOLT, FLANGE (12X240) (NOT AVAILABLE)

90104-429-000

Unavailable

14

BOLT, FLANGE (12X140) (NOT AVAILABLE)

90114-MA0-000

Unavailable

15

BOLT, FLANGE (8X60)

90154-MA0-000

$6.80

16

BOLT, FLANGE (10X62) This part replaces 90155-MA0-000.

90101-MBB-000

$3.75

17

BOLT, FLANGE (10X73) (NOT AVAILABLE)

90157-MA0-770

Unavailable

18

NUT, FLANGE (10MM)

90308-382-670

$3.79

19

NUT, FLANGE (10MM)

90308-382-670

$3.79

20

NUT, HEX. (8MM)

90309-357-000

$3.16

21

WASHER (10MM)

90410-KR0-000

$2.43

21

WASHER (10MM) This part replaces 90426-122-000.

90410-KR0-000

$2.43

22

NUT, HEX. (12MM)

94001-12000-0S

$1.58

24

NUT, HEX. (8MM)

90309-357-000

$3.16

27

WASHER, PLAIN (12MM)

94101-12000

$1.12

28

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.81

28

BOLT, FLANGE (6X12)

95701-06012-00

$1.81

29

BOLT, FLANGE (8X62)

90156-KA6-770

Unavailable
