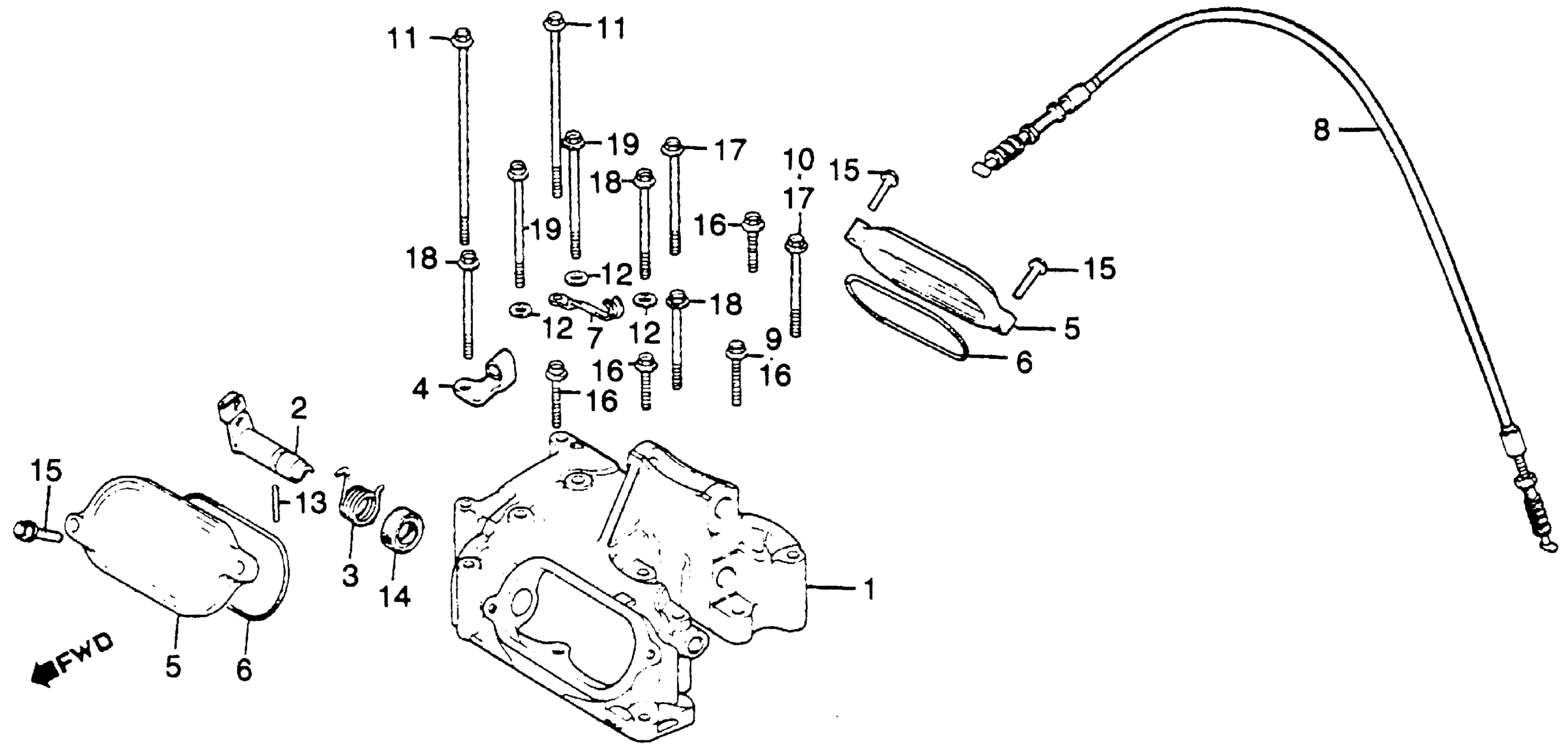

Honda XR250RA (82) MOTORCYCLE, JPN, VIN# JH2ME010-CM300008 CYLINDER HEAD COVER Diagram

#

Description
Price

1

COVER, CYLINDER HEAD (NOT AVAILABLE)

12310-KA6-670

Unavailable

2

LIFTER, VALVE (NOT AVAILABLE)

12319-428-000

Unavailable

3

SPRING, VALVE LIFT

12321-428-000

Unavailable

4

RECEIVER, DECOMPRESSION (NOT AVAILABLE)

12323-428-000

Unavailable

5

COVER, TAPPET ADJ. HOLE

12351-428-000

$37.87

6

GASKET, TAPPET COVER (KOYO)

12392-HC4-005

$3.92

6

GASKET, TAPPET COVER (KOYO) This part replaces 12392-428-000.

12392-HC4-005

$3.92

7

CLAMP, CLUTCH CABLE (NOT AVAILABLE)

22825-429-000

Unavailable

8

CABLE, DECOMPRESSION (NOT AVAILABLE) | Use up to Engine SN 5306428

28291-428-000

Unavailable

8

CABLE, DECOMPRESSION (NOT AVAILABLE) | Use from Engine SN 5306429

28291-KB7-000

Unavailable

9

BOLT, FLANGE (7X30) (NOT AVAILABLE)

90025-KA6-670

$2.14

10

BOLT, FLANGE (7X50) (NOT AVAILABLE)

90026-KA6-670

Unavailable

11

BOLT, FLANGE (6X130) This part replaces 90048-329-000.

95701-06130-00

$3.06

11

BOLT, FLANGE (6X130)

95701-06130-00

$3.06

12

WASHER, SEALING (6MM)

90441-706-000

$1.49

13

PIN, DOWEL (5X28)

91101-428-000

$3.83

14

OIL SEAL (17X27X5) (KOYO) | Use up to Engine SN 5306772 This part replaces 91201-428-005.

91202-HC5-005

$3.56

14

OIL SEAL (17X27X5) (KOYO)

91202-HC5-005

$3.56

14

OIL SEAL (17X27X5) (KOYO) | Use from Engine SN 5306773 This part replaces 91201-MC8-005.

91202-HC5-005

$3.56

15

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

15

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

16

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.80

16

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

17

BOLT, FLANGE (6X45) This part replaces 95700-06045-00.

95701-06045-07

$2.06

17

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

17

BOLT, FLANGE (6X45)

95701-06045-07

$2.06

18

BOLT, FLANGE (6X50) This part replaces 95700-06050-00.

95701-06050-00

$2.06

18

BOLT, FLANGE (6X50)

95701-06050-00

$2.06

19

BOLT, FLANGE (6X80) This part replaces 95700-06080-00.

95701-06080-00

$2.34

19

BOLT, FLANGE (6X80)

95701-06080-00

$2.34
