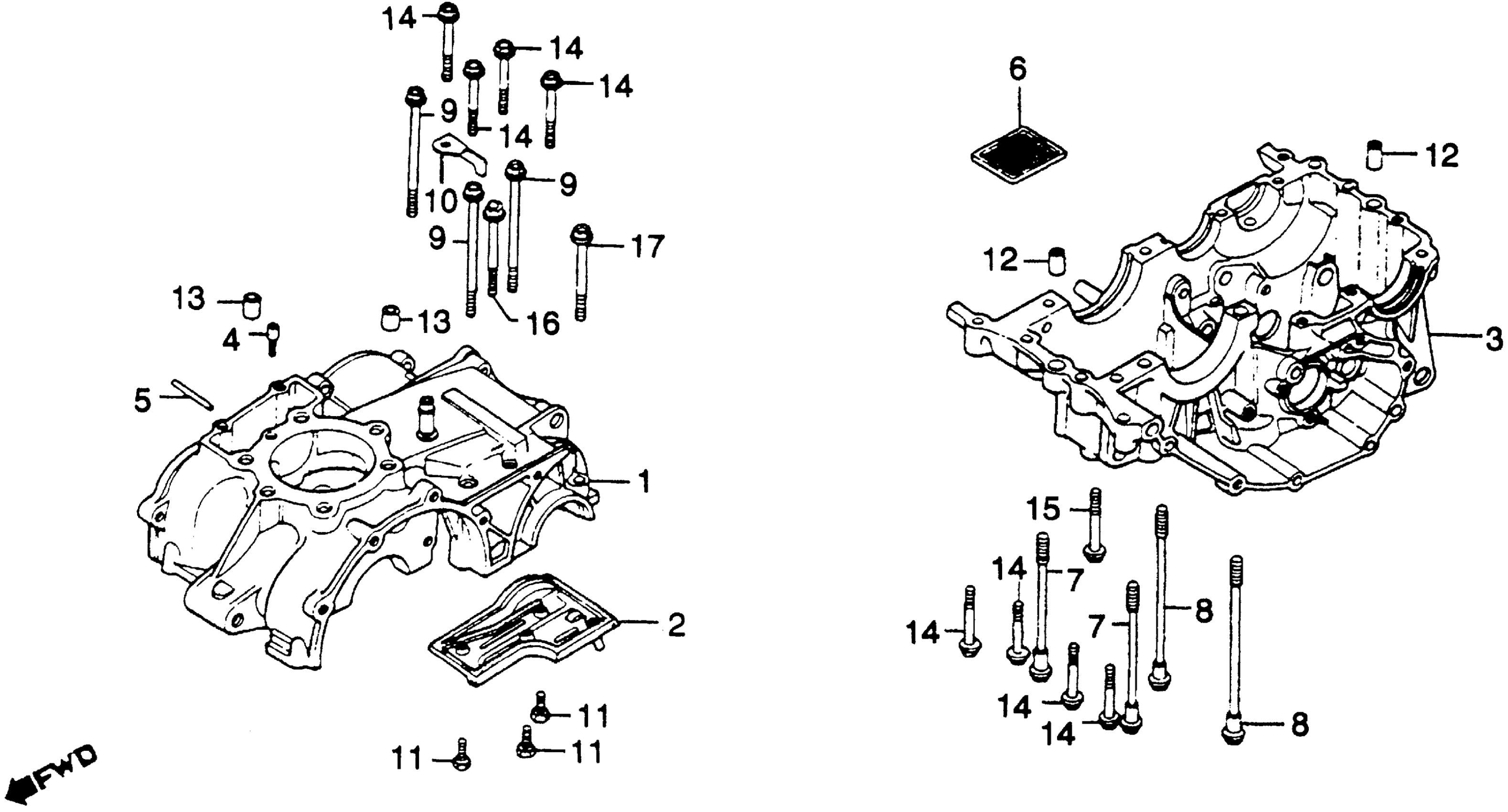

Honda XR250RA (82) MOTORCYCLE, JPN, VIN# JH2ME010-CM300008 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE (UPPER) (NOT AVAILABLE)

11100-KA6-670

Unavailable

2

PLATE, BREATHER (NOT AVAILABLE)

11110-KA6-000

Unavailable

3

CRANKCASE, L. (NOT AVAILABLE)

11200-KA6-670

Unavailable

4

ORIFICE, OIL (NOT AVAILABLE)

11333-376-000

Unavailable

5

PIPE, OIL PASSAGE (NOT AVAILABLE)

11335-428-000

Unavailable

6

SCREEN, OIL FILTER

15421-428-000

$17.82

7

BOLT, FLANGE (8X70)

90025-PC9-910

Unavailable

7

BOLT, FLANGE (8X70) This part replaces 90044-428-000.

90025-PC9-910

Unavailable

8

BOLT, UBS (8X114) (NOT AVAILABLE)

90045-329-000

Unavailable

9

BOLT, FLANGE (6X75)

90051-393-000

Unavailable

10

CLAMP, TUBE

90511-429-000

Unavailable

11

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

11

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

11

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

12

PIN A, DOWEL (10X16)

94301-10160

$2.28

13

PIN A, DOWEL (12X20)

94301-12200

$2.29

14

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.89

14

BOLT, FLANGE (6X32)

95701-06032-00

$1.89

15

BOLT, FLANGE (6X40) This part replaces 95700-06040-00.

95701-06040-00

$1.80

15

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

16

BOLT, FLANGE (6X55) This part replaces 95700-06055-00.

95701-06055-00

$2.16

16

BOLT, FLANGE (6X55)

95701-06055-00

$2.16

17

BOLT, FLANGE (8X45) This part replaces 95700-08045-00.

95701-08045-00

$1.49

17

BOLT, FLANGE (8X45)

95701-08045-00

$1.49
