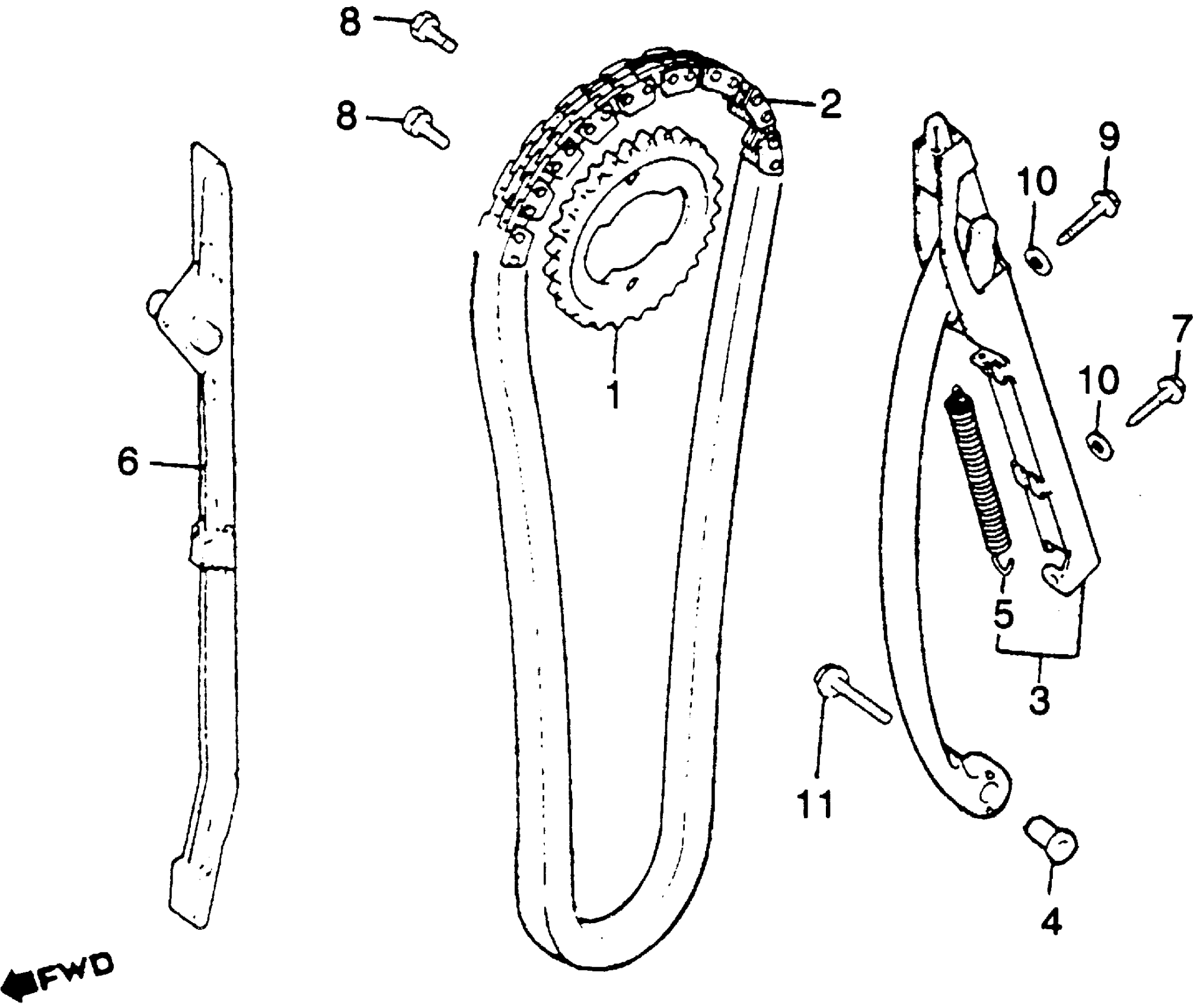

Honda XR250RA (82) MOTORCYCLE, JPN, VIN# JH2ME010-CM300008 CAM CHAIN + TENSIONER Diagram

#

Description

Price

1

SPROCKET, CAM (38T)

14321-428-000

Unavailable

2

CHAIN, CAM

14401-428-003

Unavailable

3

TENSIONER, CAM CHAIN

14500-471-000

Unavailable

4

COLLAR (6X14.7) (NOT AVAILABLE)

14515-428-000

Unavailable

5

SPRING, CAM CHAIN TENSIONER (NOT AVAILABLE)

14516-471-000

Unavailable

6

GUIDE, CAM CHAIN

14620-428-000

Unavailable

7

BOLT, SPECIAL (6MM) This part replaces 90011-471-000.

90125-KB4-670

$4.61

7

BOLT, SPECIAL (6X28)

90125-KB4-670

$4.61

8

BOLT, FLANGE KNOCK (7X10.5) This part replaces 90081-246-000.

90082-HA0-000

$1.97

8

BOLT, FLANGE KNOCK (7X10.5)

90082-HA0-000

$1.97

9

BOLT, SPECIAL (6X28)

90125-KB4-670

$4.61

9

BOLT, SPECIAL (6MM) This part replaces 90125-399-000.

90125-KB4-670

$4.61

10

WASHER, SEALING (6MM)

90441-706-000

$1.49

11

BOLT, FLANGE (6X28)

95700-06028-00

$1.73

11

BOLT, FLANGE (6X28)

95701-06028-00

$1.73
