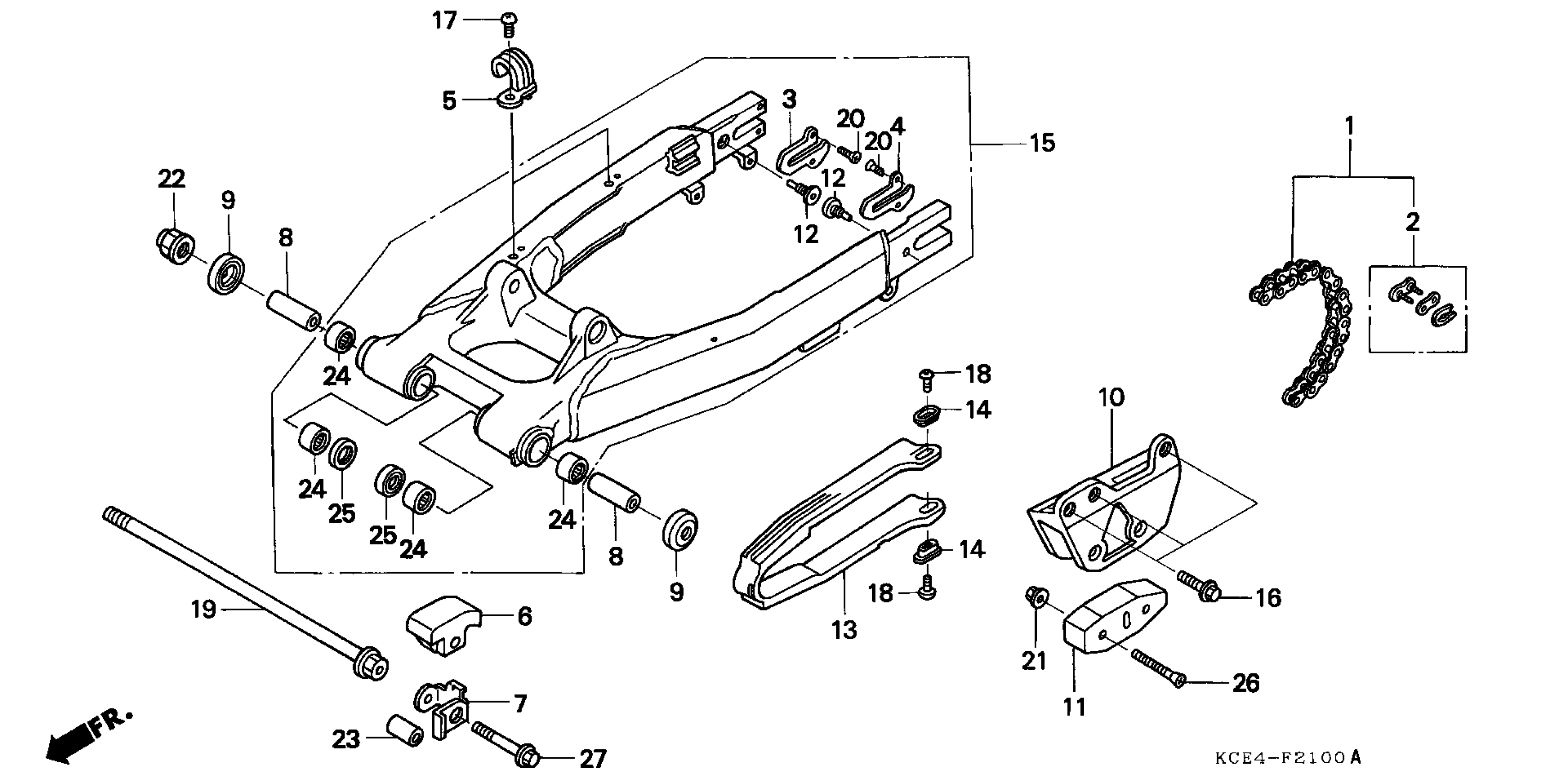

Honda XR250RA (04) MOTORCYCLE, JPN, VIN# JH2ME080-4K900001 TO JH2ME080-4K959999 SWINGARM Diagram

#

Description
Price

1

CHAIN, DRIVE (DID520VC5-106FB) (DAIDO)

40530-KCE-506

Unavailable

1

CHAIN, DRIVE (DID520VC5-106FB) (DAIDO) This part replaces 40530-KCE-671.

40530-KCE-506

Unavailable

1

CHAIN, DRIVE (RK520MOZ6-106FJ) (RK EXCEL) This part replaces 40530-KCE-672.

40530-KCY-652

Unavailable

1

CHAIN, DRIVE (RK520MOZ6-106FJ) (RK EXCEL)

40530-KCY-652

Unavailable

2

MASTER LINK (DAIDO)

40531-KCE-671

$6.42

2

MASTER LINK (RK EXCEL)

40531-KCE-672

Unavailable

3

WASHER, R. RR. SWINGARM

42307-KT1-770

Unavailable

4

WASHER, L. RR. SWINGARM

42308-KT1-770

Unavailable

5

GUIDE, RR. BRAKE HOSE

43468-KAE-000

$5.07

6

SLIPPER, CHAIN

50911-MN1-670

$22.00

7

STAY, CHAIN SLIPPER

50912-MN1-670

$14.78

8

COLLAR, SWINGARM PIVOT

52141-KCZ-000

Unavailable

9

CAP, SWINGARM DUST SEAL (NOK)

52144-356-005

$15.54

10

GUIDE, CHAIN

52146-KT1-770

$33.68

11

SLIDER, CHAIN GUIDE

52147-KN5-005

$13.16

12

PIN, CHAIN ADJUSTER

52156-KV6-000

$10.30

13

SLIDER, CHAIN

52170-KZ1-671

$55.77

14

WASHER, CHAIN SLIDER

52171-KR6-000

$2.35

15

SWINGARM SET

52200-KCE-000

Unavailable

16

BOLT, FLANGE (6X16)

90103-MY6-670

$3.48

17

SCREW, PAN (5X10)

90104-ML7-920

$2.80

18

SCREW, PAN (5X8)

90115-KV3-700

$2.38

19

BOLT, SWINGARM PIVOT

90121-KCZ-000

Unavailable

20

SCREW, FLAT (5X4)

90124-KA3-711

$5.22

21

NUT, U (6MM)

90301-473-003

$3.79

22

NUT, U (14MM)

90305-GE8-003

$3.59

22

NUT, U (14MM) This part replaces 90305-MA1-003.

90305-GE8-003

$3.59

23

COLLAR, CHAIN SLIPPER

90501-MN1-680

$3.42

24

BEARING, NEEDLE (20X26X12) (NTN) This part replaces 91106-KF0-008.

91051-V19-003

$18.33

25

DUST SEAL (20X26X4.5) (ARAI)

91254-KS6-003

$8.27

26

SCREW, FLAT (6X45)

93600-06045-0A

$0.86

27

BOLT, FLANGE (6X32)

96400-06032-00

$1.64
