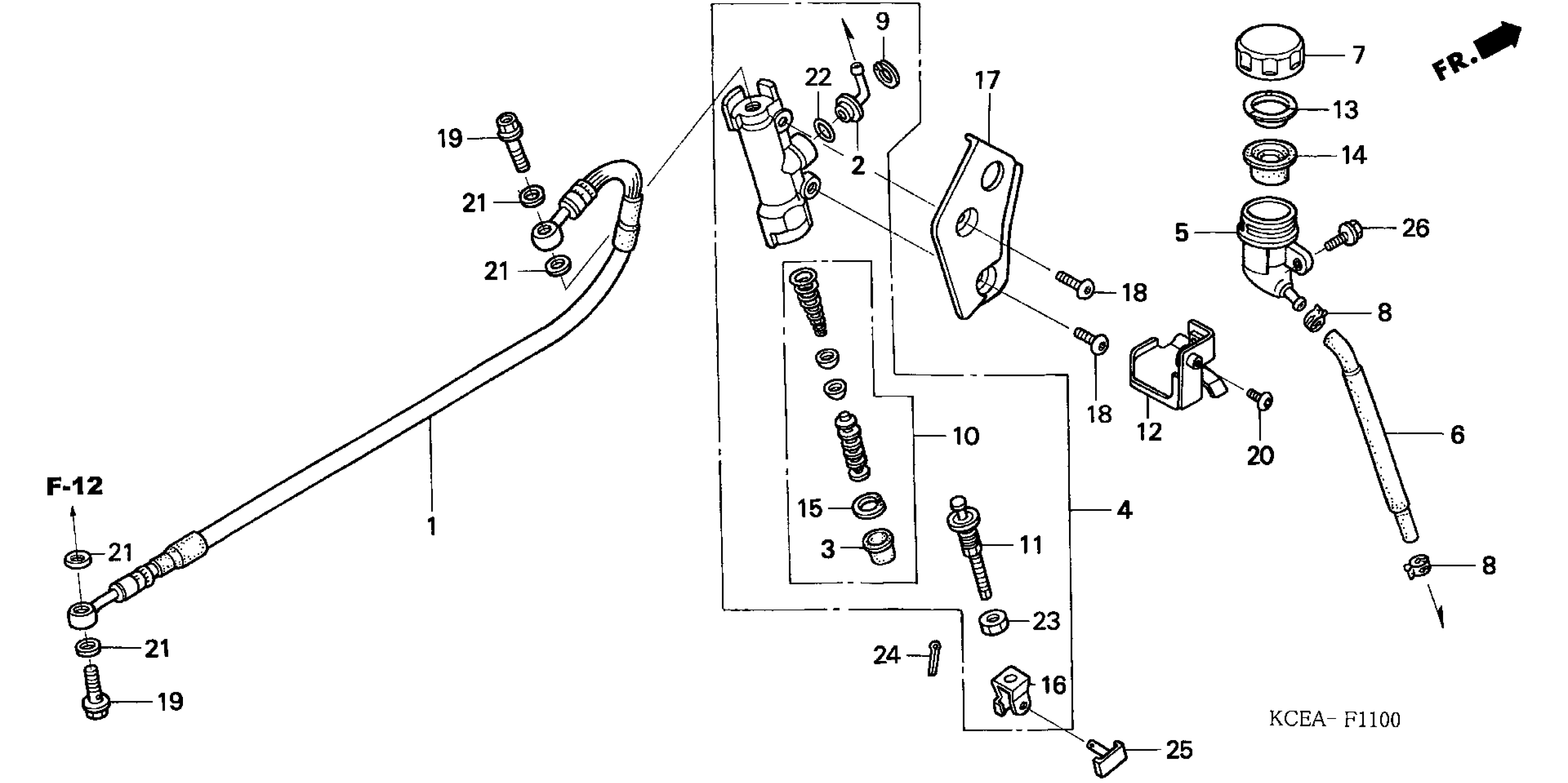

Honda XR250RA (04) MOTORCYCLE, JPN, VIN# JH2ME080-4K900001 TO JH2ME080-4K959999 REAR BRAKE MASTER CYLINDER Diagram

HOSE, RR. BRAKE (NICHIRIN)

43310-KCZ-003

Unavailable

CONNECTOR, MASTER CYLINDER

43503-KS6-701

$8.94

BOOT

43504-MB2-006

$9.01

MASTER CYLINDER SUB-ASSY., RR. BRAKE (NISSIN)

43510-KCE-671

Unavailable

CUP, MASTER CYLINDER OIL

43511-KS6-702

$23.26

HOSE, RR. BRAKE MASTER CYLINDER

43512-KCZ-006

Unavailable

CAP, MASTER CYLINDER

43513-KS6-701

$13.08

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$11.77

CIRCLIP, RR. MASTER CYLINDER

43517-KS6-701

$3.55

PISTON SET, MASTER CYLINDER (NISSIN) This part replaces 43520-MB2-305.

43520-MB2-315

$41.76

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MB2-315

$41.76

ROD, PUSH

43530-KS7-831

$24.49

STAY, RR. BRAKE This part replaces 43540-KCZ-000.

43540-MFB-000

Unavailable

STAY, RR. BRAKE

43540-MFB-000

Unavailable

PLATE, DIAPHRAGM

45518-GM9-711

$4.16

DIAPHRAGM

45520-GM9-711

$8.22

CIRCLIP

46182-500-013

$4.46

JOINT, BRAKE ROD

46504-KV6-702

$7.30

PLATE, PIVOT

50605-KCE-670

Unavailable

BOLT, RR. MASTER CYLINDER

90109-KZ9-000

$3.66

BOLT, OIL (10X22)

90145-MS9-612

$6.82

BOLT, SPECIAL (6MM)

90170-KCZ-000

Unavailable

WASHER, OIL BOLT

90545-300-000

$3.72

O-RING (14.8X2.4)

91212-422-006

Unavailable

NUT, HEX. (8MM)

94002-08000-0S

$1.19

PIN, SPLIT (2.0X12)

94201-20120

$0.94

PIN D, JOINT

95015-54000

$3.95

BOLT, FLANGE (6X12)

96300-06012-00

$0.86
