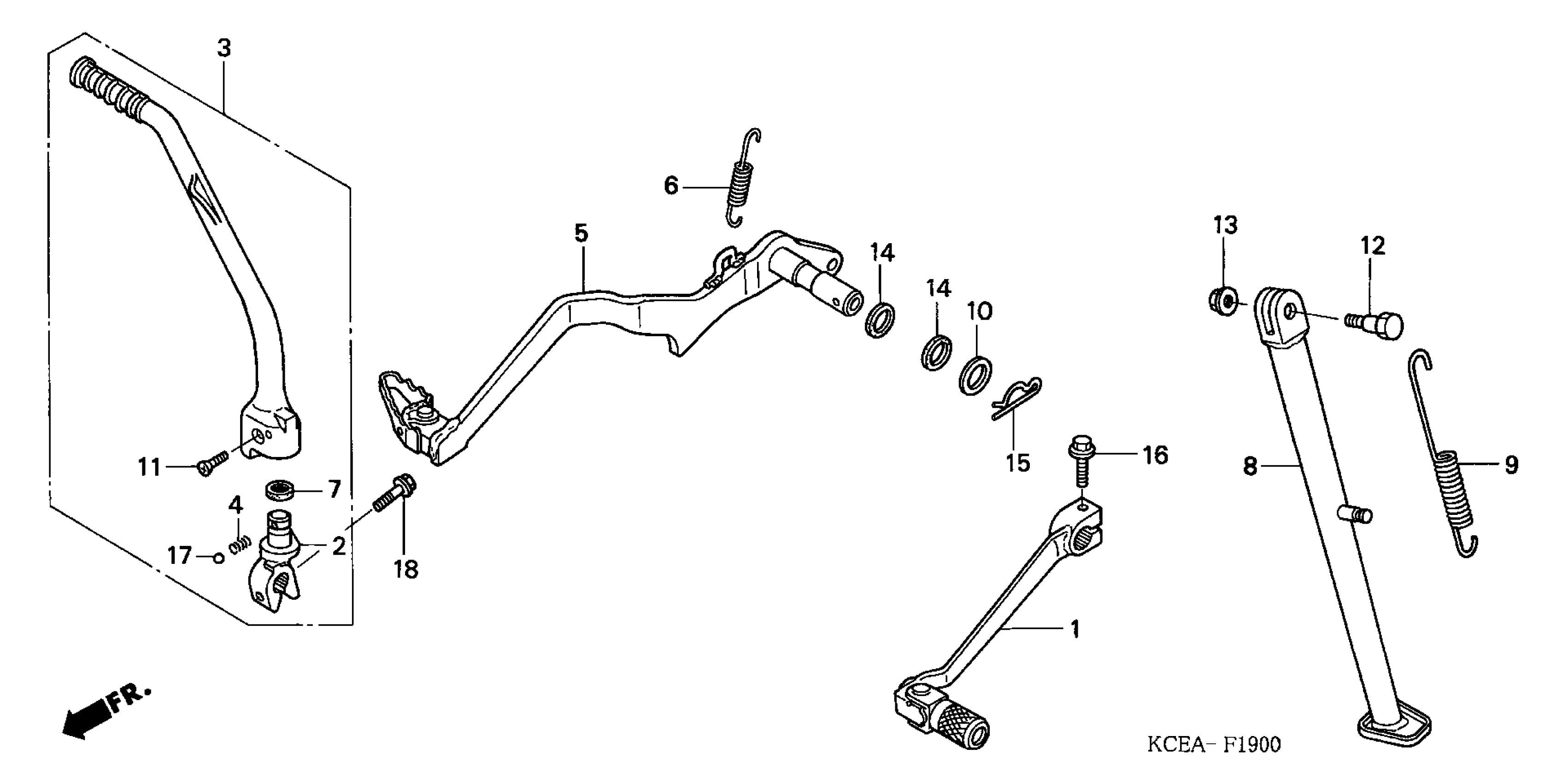

Honda XR250RA (04) MOTORCYCLE, JPN, VIN# JH2ME080-4K900001 TO JH2ME080-4K959999 PEDAL Diagram

PEDAL ASSY., CHANGE

24700-KCE-A10

Unavailable

JOINT, KICK ARM

28241-KCE-670

$60.15

ARM ASSY., KICK STARTER

28300-KCE-670

Unavailable

SPRING, KICK STARTER

28333-KK0-000

$2.51

PEDAL, BRAKE

46500-KCE-A10

Unavailable

SPRING, BRAKE PEDAL

46514-KCZ-000

Unavailable

DUST SEAL (17X20X2.5)

46525-KK0-003

$5.05

BAR, SIDE STAND

50530-KCE-A10

Unavailable

SPRING, SIDE STAND

50535-KAE-730

$10.00

WASHER, BUSH

53312-657-000

$6.70

BOLT, KICK ARM

90101-MAC-680

$5.92

SCREW, SIDE STAND PIVOT

90108-KG0-000

$7.96

NUT, U (10MM) (FUSE RASHI)

90304-GE8-003

$3.67

DUST SEAL (15X20X3)

91251-MT4-003

$3.80

PIN, LOCK (16MM)

94251-16000

$1.49

BOLT, FLANGE (6X20)

95701-06020-07

$1.62

BALL, STEEL (#8) (1/4)

96211-08000

$1.49

BOLT, FLANGE (8X28)

96300-08028-00

$1.79
