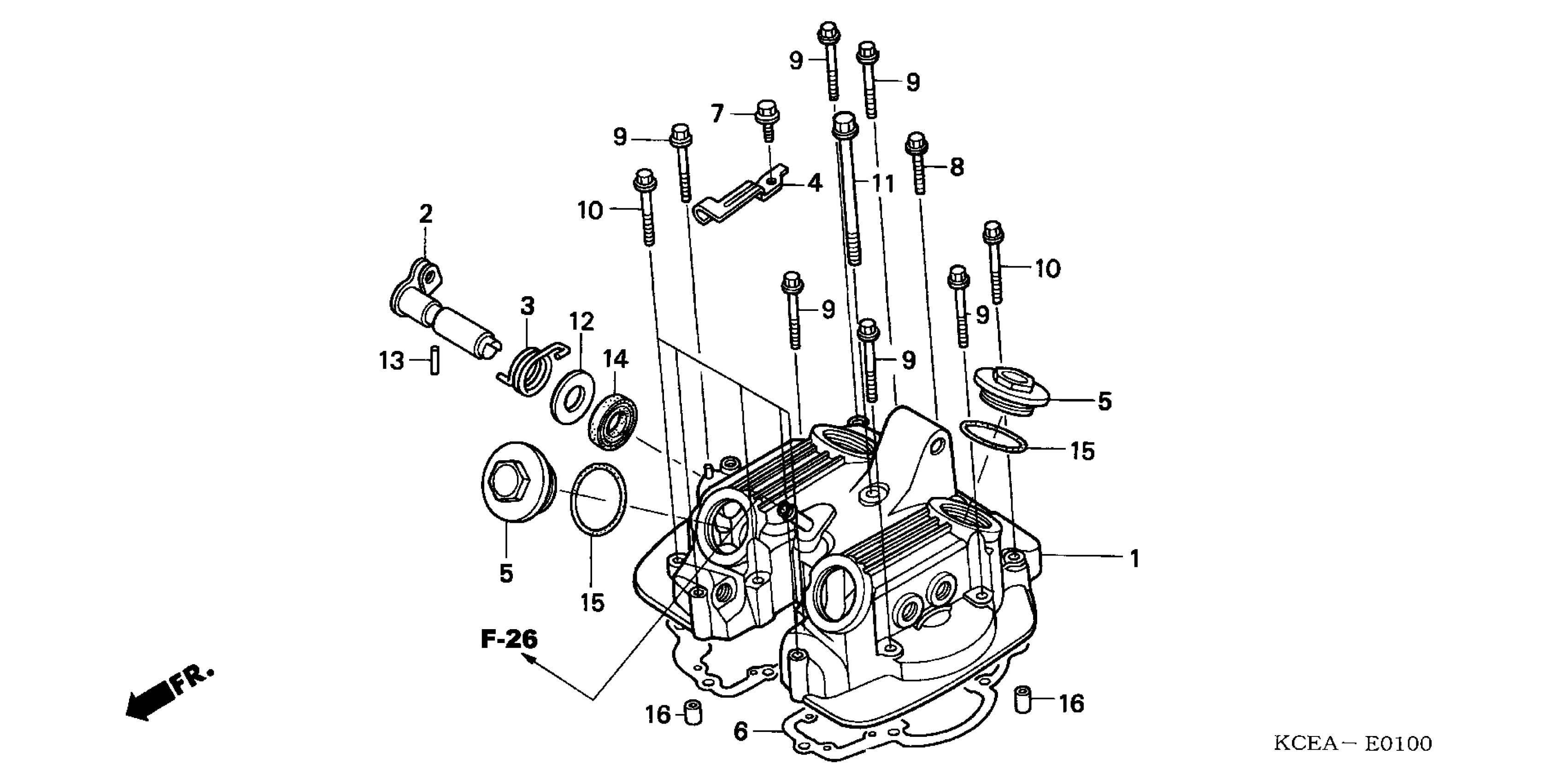

Honda XR250RA (04) MOTORCYCLE, JPN, VIN# JH2ME080-4K900001 TO JH2ME080-4K959999 CYLINDER HEAD COVER Diagram

COVER, CYLINDER HEAD

12310-KCE-671

Unavailable

LIFTER, VALVE

12320-KCE-670

Unavailable

SPRING, VALVE LIFTER

12321-KCE-670

Unavailable

RECEIVER, DECOMPRESSION CABLE

12326-KK1-000

Unavailable

CAP, TAPPET ADJUSTING HOLE This part replaces 12361-KK0-000.

12361-HP5-600

$18.50

GASKET, HEAD COVER

12391-KR6-010

$45.81

BOLT, FLANGE (6X16) (NSHF)

90004-GHB-630

$3.51

BOLT, FLANGE (6X25) (NSHF)

90004-GHB-670

$2.89

BOLT, FLANGE (6X35) (NSHF)

90004-GHB-700

$4.07

BOLT, FLANGE (6X40) (NSHF)

90004-GHB-710

$4.07

BOLT, FLANGE (8X75)

90017-KCZ-000

$9.48

WASHER (11MM)

90408-KK0-000

$2.81

PIN, DOWEL (4X37.5)

91101-KK0-000

Unavailable

OIL SEAL (11X16X5) (ARAI)

91202-MG3-003

$5.12

O-RING (35.5X3) (NOK)

91301-428-003

$2.21

PIN, DOWEL (8X14)

94301-08140

$2.25
