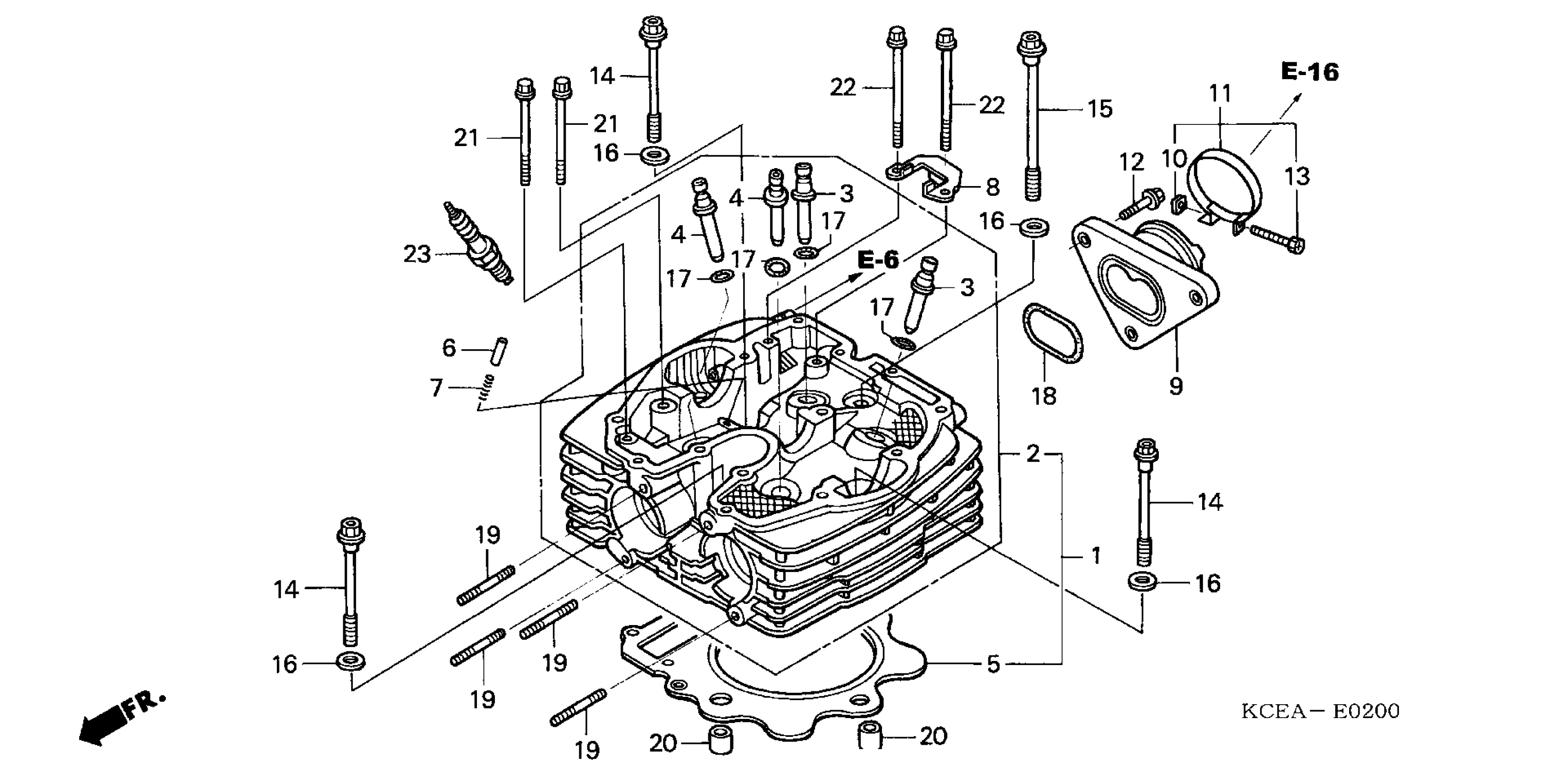

Honda XR250RA (04) MOTORCYCLE, JPN, VIN# JH2ME080-4K900001 TO JH2ME080-4K959999 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD This part replaces 12200-KCE-305.

12200-KCZ-305

Unavailable

1

CYLINDER HEAD

12200-KCZ-305

Unavailable

2

CYLINDER HEAD This part replaces 12200-KCE-672.

12200-KCZ-010

Unavailable

2

CYLINDER HEAD

12200-KCZ-010

Unavailable

3

GUIDE, VALVE (OVER SIZE)

12231-KCZ-305

$21.90

4

GUIDE, EX. VALVE (OVER SIZE)

12241-KCZ-305

$21.90

5

GASKET, CYLINDER HEAD

12251-KCZ-013

$27.94

6

PLUNGER, CAM SETTING

14125-KV2-940

$17.63

7

SPRING, PLUNGER

14126-KV2-940

$3.89

8

PLATE, TENSIONER SETTING

14515-KK0-010

Unavailable

9

INSULATOR, CARBURETOR

16211-KT1-013

$49.31

10

NUT, SQUARE (5MM)

16222-MV4-300

$2.15

11

BAND, INSULATOR

16223-KS5-000

$14.20

12

BOLT, FLANGE (6X22) (NSHF)

90004-GHB-660

$3.77

13

BOLT, RECESSED (5X28)

90023-MM5-000

$2.92

14

BOLT, FLANGE (10X81)

90081-KK0-000

$12.30

15

BOLT, FLANGE (10X100)

90081-KR0-000

$13.72

16

WASHER (10MM)

90410-KR0-000

$2.67

17

O-RING (10X1.6)

91301-200-000

$3.01

18

O-RING, CARBURETOR INSULATOR

91302-KR0-003

$11.69

19

BOLT, STUD (6X22)

92900-06022-0E

$1.49

20

PIN, DOWEL (12X20)

94301-12200

$2.29

21

BOLT, FLANGE (6X80)

96001-06080-00

$2.21

22

BOLT, FLANGE (6X90)

96001-06090-00

$1.95

23

SPARK PLUG (CR8EH9) (NGK) | (Optional).

98059-58916

$8.09

23

SPARK PLUG (CR9EH-9) (NGK) | (Optional). This part replaces 98059-58926.

98059-59916

$8.09

23

SPARK PLUG (CR9EH-9) (NGK) | (Optional). This part replaces 98059-59910.

98059-59916

$8.09

23

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-59910.

98059-59916

$8.09

23

SPARK PLUG (CR9EH-9) (NGK) | (Optional).

98059-59916

$8.09

23

SPARK PLUG (CR9EH-9) (NGK)

98059-59916

$8.09

23

SPARK PLUG (CR9EH-9) (NGK) | (Optional). This part replaces 98059-59926.

98059-59916

$8.09

23

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-59926.

98059-59916

$8.09
