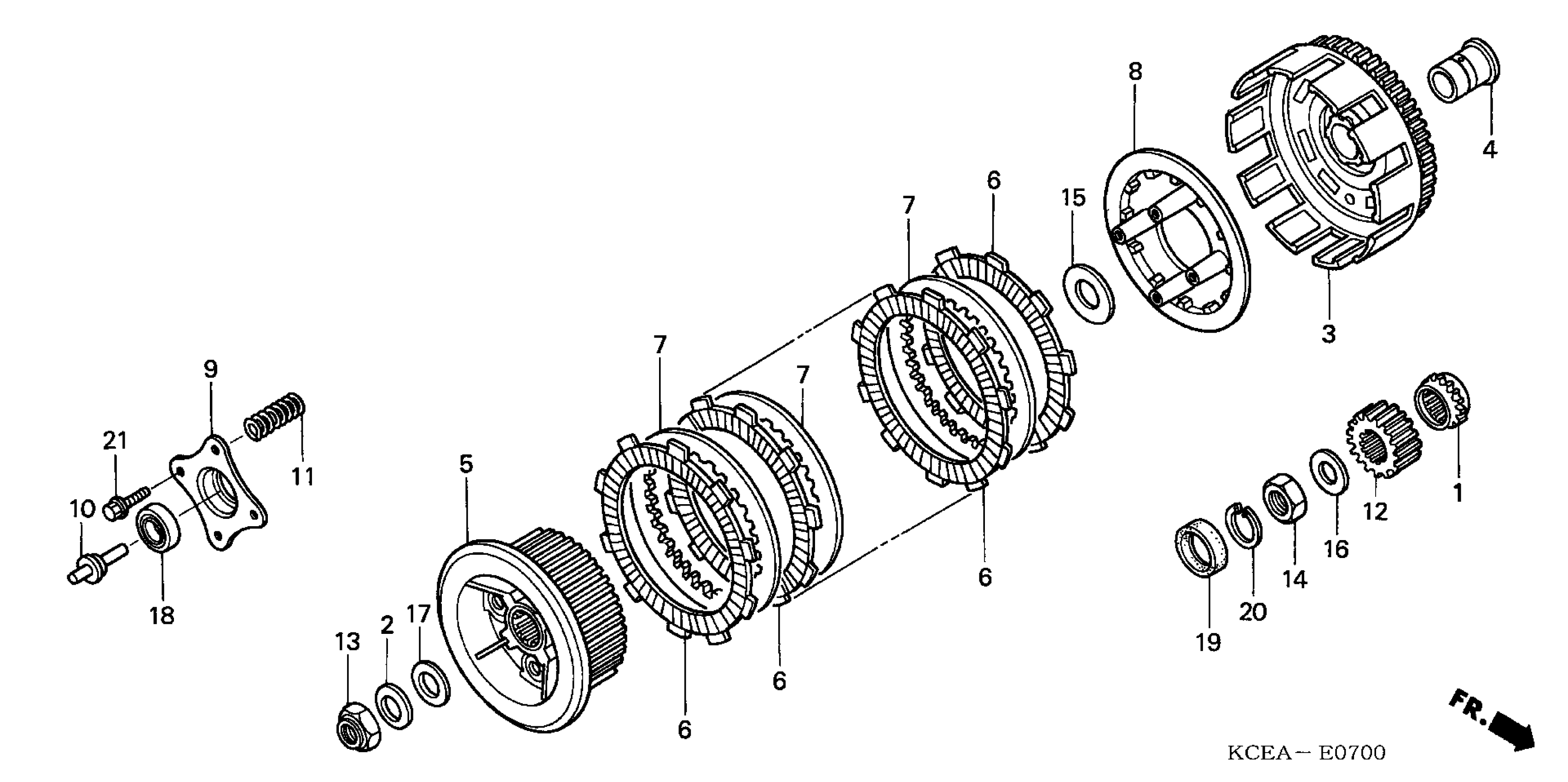

Honda XR250RA (04) MOTORCYCLE, JPN, VIN# JH2ME080-4K900001 TO JH2ME080-4K959999 CLUTCH Diagram

#

Description
Price

1

SPROCKET, TIMING (19T)

14312-KCZ-000

$49.11

2

WASHER, LOCK (16MM)

15451-KR3-601

$4.69

3

CLUTCH (OUTER)

22100-KCZ-000

Unavailable

4

GUIDE, CLUTCH (OUTER)

22116-KR0-010

Unavailable

5

CENTER, CLUTCH

22121-KCZ-000

$141.00

6

DISK, CLUTCH FRICTION

22201-MAL-600

$17.72

7

PLATE, CLUTCH

22321-KF0-770

$14.92

8

PLATE, CLUTCH PRESSURE This part replaces 22350-KF0-000.

22350-KW3-000

$71.20

8

PLATE, CLUTCH PRESSURE

22350-KW3-000

$71.20

9

CAP, CLUTCH LIFTER

22366-HC4-000

Unavailable

10

PIN, CLUTCH LIFTER

22366-KCZ-000

Unavailable

11

SPRING, CLUTCH

22401-HB5-000

$5.49

12

GEAR, PRIMARY DRIVE (20T)

23121-KCZ-950

$68.34

13

NUT, SPECIAL (16MM)

90201-KCZ-010

$6.82

14

NUT, LOCK (18MM)

90235-428-000

Unavailable

15

WASHER (20X37X2)

90404-KK0-000

$4.44

16

WASHER, LOCK

90432-KF0-000

$9.63

17

WASHER, THRUST (16MM)

90462-107-000

$2.11

18

BEARING, BALL (6903) (KOYO)

91008-HC4-004

$23.06

19

OIL SEAL (14X22X5) (ARAI) This part replaces 91201-KF0-000.

91201-HM3-A61

$2.99

19

OIL SEAL (14X22X5) (ARAI) This part replaces 91201-KF0-003.

91201-HM3-A61

$2.99

19

OIL SEAL (14X22X5) (ARAI) This part replaces 91201-KF0-004.

91201-HM3-A61

$2.99

19

OIL SEAL (14X22X5) (ARAI) This part replaces 91201-KF0-005.

91201-HM3-A61

$2.99

19

OIL SEAL (14X22X5) (ARAI) This part replaces 91203-KK0-003.

91201-HM3-A61

$2.99

20

CIRCLIP (INNER) (24MM)

94520-24000

$1.49

21

BOLT, FLANGE (6X22)

95701-06022-00

$1.80
