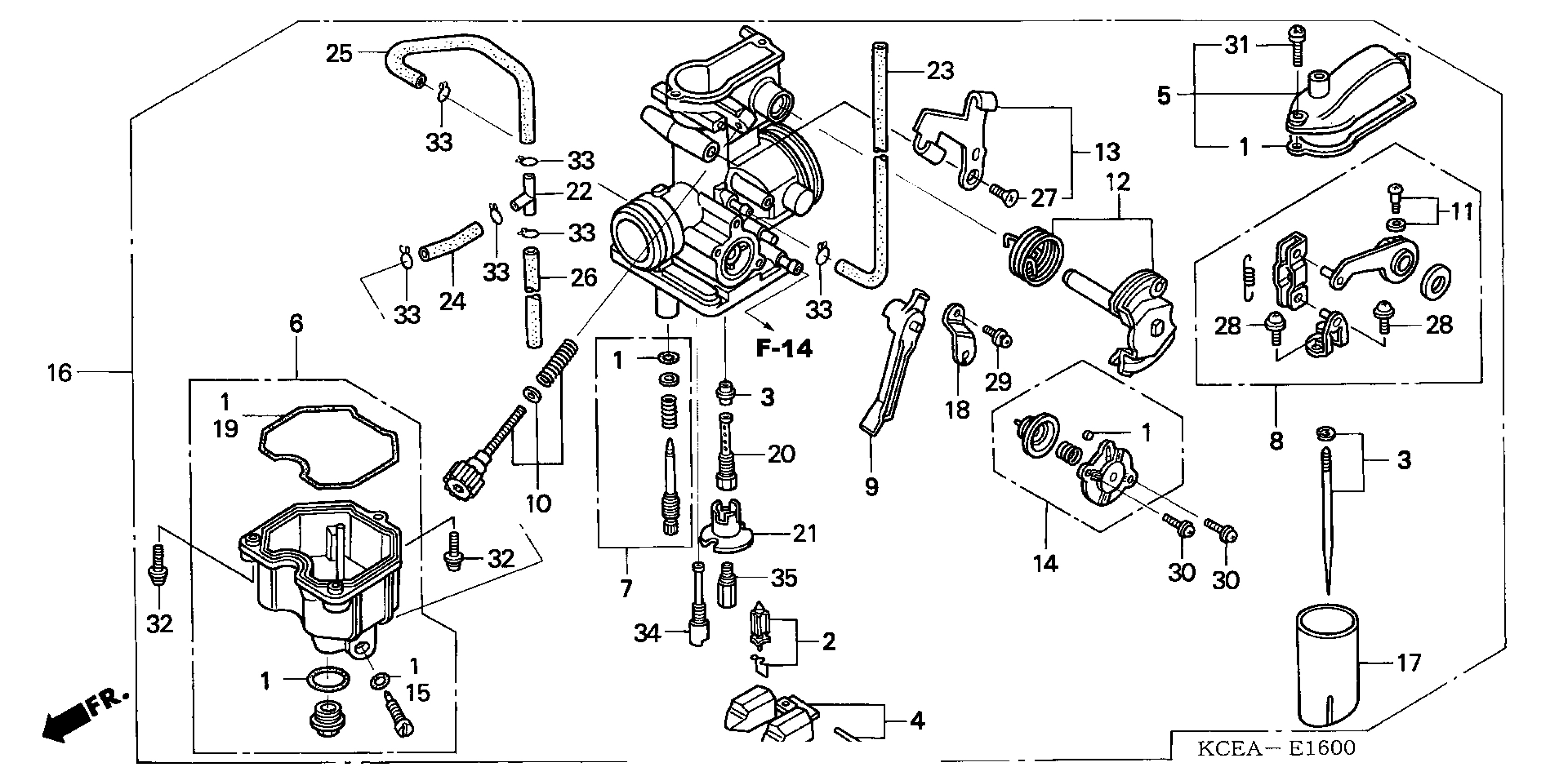

Honda XR250RA (04) MOTORCYCLE, JPN, VIN# JH2ME080-4K900001 TO JH2ME080-4K959999 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-KCE-670

$32.54

2

VALVE SET, FLOAT

16011-KN4-A10

$33.07

3

NEEDLE SET, JET

16012-KCE-670

Unavailable

4

FLOAT SET

16013-KN4-A10

$31.83

5

TOP SET

16014-KCE-771

Unavailable

6

CHAMBER SET, FLOAT

16015-KCE-671

Unavailable

7

SCREW SET A This part replaces 16016-KCT-690.

16016-KC2-970

$23.27

7

SCREW SET A

16016-KC2-970

$23.27

8

ARM SET, LINK

16018-KCE-771

Unavailable

9

LEVER, CHOKE

16019-KCE-671

Unavailable

10

SCREW SET B

16028-KBW-901

$21.06

11

SCREW SET C

16029-KCE-670

$10.44

12

LINK SET, THROTTLE

16032-KCE-670

Unavailable

13

STAY SET, WIRE

16037-KCE-670

$17.13

14

VALVE SET, AIR CUT

16048-KB7-901

$137.75

15

O-RING (1.3X4.3)

16075-GHB-640

$2.69

16

CARBURETOR ASSY. (PDG1A C)

16100-KCE-672

Unavailable

17

VALVE, THROTTLE

16111-KCE-670

Unavailable

18

PLATE, CHOKE LEVER SETTING

16119-429-771

$8.93

19

GASKET, FLOAT CHAMBER

16163-KCS-920

$10.93

20

HOLDER, NEEDLE JET

16165-427-771

Unavailable

21

HOLDER, JET

16168-382-014

$8.03

22

T-JOINT

16180-195-731

$11.88

23

TUBE, AIR VENT

16198-KCE-670

Unavailable

24

TUBE, AIR VENT This part replaces 16199-KCE-670.

16199-428-405

$2.95

24

TUBE, DRAIN

16199-428-405

$2.95

25

TUBE

16199-KR6-004

$10.18

26

TUBE, OVERFLOW

16199-435-771

$10.46

27

SCREW, FLAT (5X10)

93600-05010-0H

$0.90

27

SCREW, FLAT (5X10) This part replaces 93600-05010-1H.

93600-05010-0H

$0.90

28

SCREW-WASHER (3X8)

93892-03008-08

$1.13

28

SCREW-WASHER (3X8) This part replaces 93892-03008-18.

93892-03008-08

$1.13

29

SCREW-WASHER (4X10)

93892-04010-08

$1.13

29

SCREW-WASHER (4X10) This part replaces 93892-04010-18.

93892-04010-08

$1.13

30

SCREW-WASHER (4X12)

93892-04012-08

$0.75

30

SCREW-WASHER (4X12) This part replaces 93892-04012-18.

93892-04012-08

$0.75

31

SCREW-WASHER (4X14)

93892-04014-08

$1.09

31

SCREW-WASHER (4X14) This part replaces 93892-04014-18.

93892-04014-08

$1.09

32

SCREW-WASHER (4X16)

93892-04016-08

$0.90

32

SCREW-WASHER (4X16) This part replaces 93892-04016-18.

93892-04016-08

$0.90

33

CLIP, TUBE (B6.5)

95002-02659

$1.01

34

JET, SLOW (#48) | (Optional).

99103-KAE-0480

Unavailable

34

JET, SLOW (#45)

99103-KPS-0450

$10.35

34

JET, SLOW (#42) | (Optional).

99103-MV9-0420

$19.19

34

JET, SLOW (#42) | (Optional). This part replaces 99103-437-0420.

99103-MV9-0420

$19.19

34

JET, SLOW (#45) This part replaces 99103-437-0450.

99103-KPS-0450

$10.35

34

JET, SLOW (#48) | (Optional). This part replaces 99103-437-0480.

99103-KAE-0480

Unavailable

35

JET, MAIN (#135) | (Optional).

99101-KPS-1350

Unavailable

35

JET, MAIN (#115) | (Optional).

99101-357-1150

$17.17

35

JET, MAIN (#118) | (Optional).

99101-357-1180

$9.24

35

JET, MAIN (#122) | (Optional).

99101-357-1220

$16.52

35

JET, MAIN (#125) | (Optional).

99101-357-1250

$9.22

35

JET, MAIN (#128) | (Optional).

99101-357-1280

$8.38

35

JET, MAIN (#130) | (Optional).

99101-357-1300

$7.88

35

JET, MAIN (#138) | (Optional).

99101-357-1380

$8.53

35

JET, MAIN (#140) | (Optional).

99101-357-1400

$7.88

35

JET, MAIN (#145) | (Optional).

99101-357-1450

$8.38

35

JET, MAIN (#115) | (Optional). This part replaces 99113-GHB-1150.

99101-357-1150

$17.17

35

JET, MAIN (#118) | (Optional). This part replaces 99113-GHB-1180.

99101-357-1180

$9.24

35

JET, MAIN (#120) | (Optional).

99113-GHB-1200

$9.22

35

JET, MAIN (#122) | (Optional). This part replaces 99113-GHB-1220.

99101-357-1220

$16.52

35

JET, MAIN (#125) | (Optional). This part replaces 99113-GHB-1250.

99101-357-1250

$9.22

35

JET, MAIN (#128) | (Optional). This part replaces 99113-GHB-1280.

99101-357-1280

$8.38

35

JET, MAIN (#130) | (Optional). This part replaces 99113-GHB-1300.

99101-357-1300

$7.88

35

JET, MAIN (#132)

99113-GHB-1320

Unavailable

35

JET, MAIN (#135) | (Optional). This part replaces 99113-GHB-1350.

99101-KPS-1350

Unavailable

35

JET, MAIN (#138) | (Optional). This part replaces 99113-GHB-1380.

99101-357-1380

$8.53

35

JET, MAIN (#140) | (Optional). This part replaces 99113-GHB-1400.

99101-357-1400

$7.88

35

JET, MAIN (#142) | (Optional).

99113-GHB-1420

$8.91

35

JET, MAIN (#145) | (Optional). This part replaces 99113-GHB-1450.

99101-357-1450

$8.38

35

JET, MAIN (#148) | (Optional).

99113-GHB-1480

$8.38
