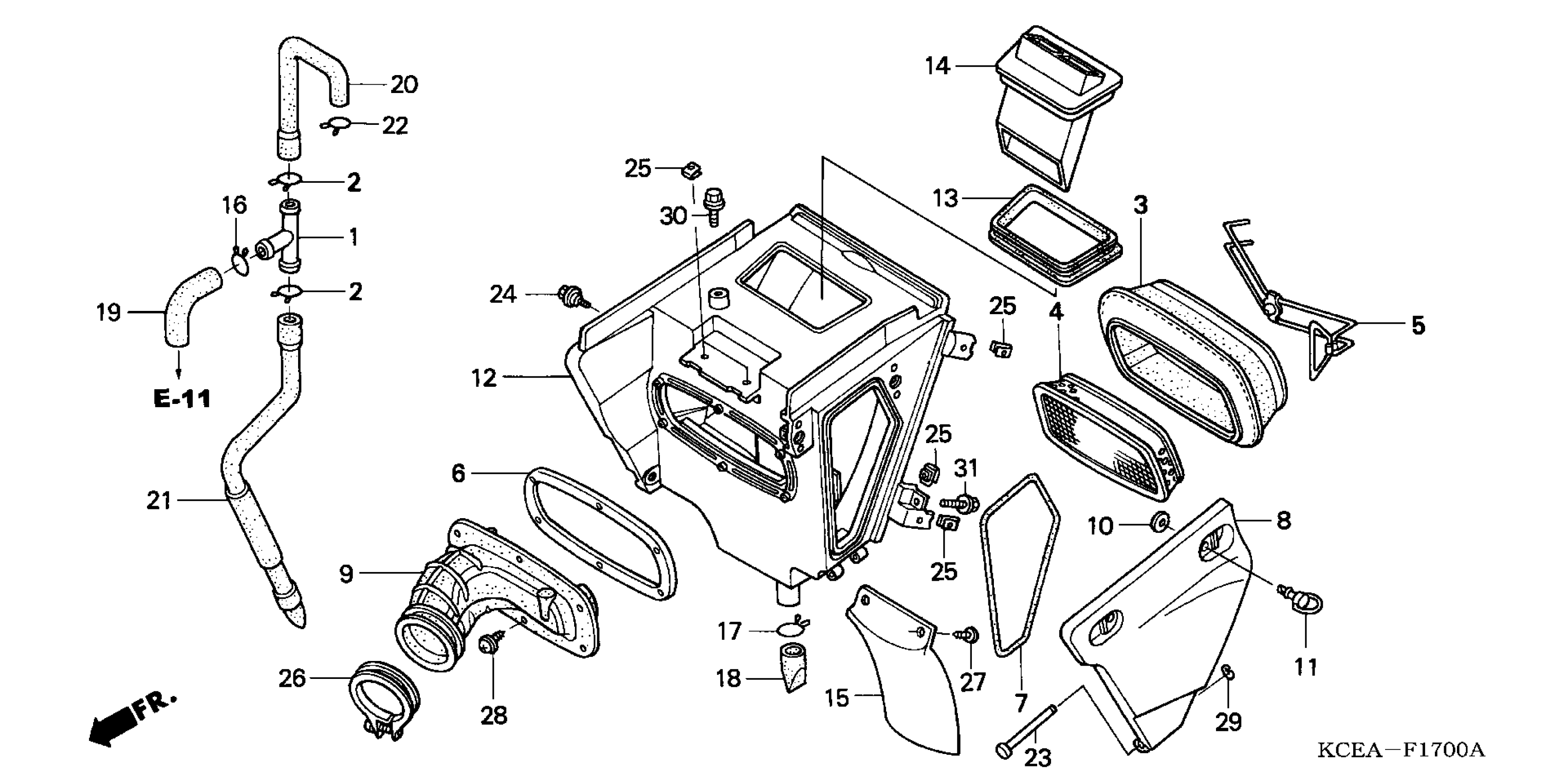

Honda XR250RA (04) MOTORCYCLE, JPN, VIN# JH2ME080-4K900001 TO JH2ME080-4K959999 AIR CLEANER (A) Diagram

#

Description
Price

1

JOINT, BREATHER THREE WAY

15772-KK0-000

$12.13

2

CLIP B, BREATHER TUBE

15772-MN1-670

$2.90

3

ELEMENT, AIR CLEANER This part replaces 17213-KF0-000.

17213-MN1-670

$29.00

3

ELEMENT, AIR CLEANER

17213-MN1-670

$29.00

4

HOLDER, ELEMENT

17214-MN1-670

$66.09

5

SPRING, ELEMENT HOLDING

17216-KCZ-000

Unavailable

6

PLATE, HOLDER

17217-KCZ-000

Unavailable

7

SEAL, AIR CLEANER COVER

17219-KCZ-000

Unavailable

8

LID, AIR CLEANER MAINTENANCE *NH1* (BLACK) This part replaces 17220-KCZ-000ZB.

17220-KCZ-010ZB

Unavailable

8

LID, AIR CLEANER MAINTENANCE *NH1* (BLACK)

17220-KCZ-010ZB

Unavailable

9

TUBE, AIR CLEANER CONNECTING

17222-KCE-670

Unavailable

10

WASHER, AIR CLEANER COVER SETTING

17224-KN5-670

$1.49

11

STUD (6X21) This part replaces 17225-KN5-670.

17225-KN5-671

$6.99

11

STUD (6X21)

17225-KN5-671

$6.99

12

HOUSING, AIR CLEANER *NH1* (BLACK) This part replaces 17230-KCZ-010ZB.

17230-KCZ-020ZB

Unavailable

12

HOUSING, AIR CLEANER *NH1* (BLACK)

17230-KCZ-020ZB

Unavailable

13

DUCT, AIR CLEANER IN.

17240-KCY-670

Unavailable

14

CAP, IN. DUCT

17241-KCE-671

Unavailable

15

SPLASH GUARD, AIR CLEANER

17245-KCZ-000

$25.59

16

CLIP A, BREATHER TUBE

17316-MN1-670

$2.33

17

CLIP, BREATHER TUBE

17316-611-000

$9.23

18

TUBE, DRAIN

17359-KK0-000

$7.30

19

TUBE A, BREATHER

17371-KCE-670

Unavailable

20

TUBE B, BREATHER

17372-KCE-670

Unavailable

21

TUBE C, BREATHER

17373-KCE-670

Unavailable

22

CLIP, SUB-TANK HOSE

17724-MN1-670

$3.15

23

PIN, VISOR HINGE

64308-GG2-000

$8.07

24

BOLT, FLANGE (6MM)

90116-ME9-000

$3.35

25

NUT, CLIP (6MM)

90311-MT3-000

$5.78

26

BAND, AIR CLEANER CONNECTING TUBE (52)

95018-52250

$5.14

27

SCREW, TAPPING (5X16)

93903-25310

$1.49

28

SCREW, TAPPING (5X10) (PO)

93913-25180

$1.49

29

E-RING (3MM)

94540-03010

$1.49

30

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

31

BOLT, FLANGE (6X16)

96300-06016-00

$1.49
