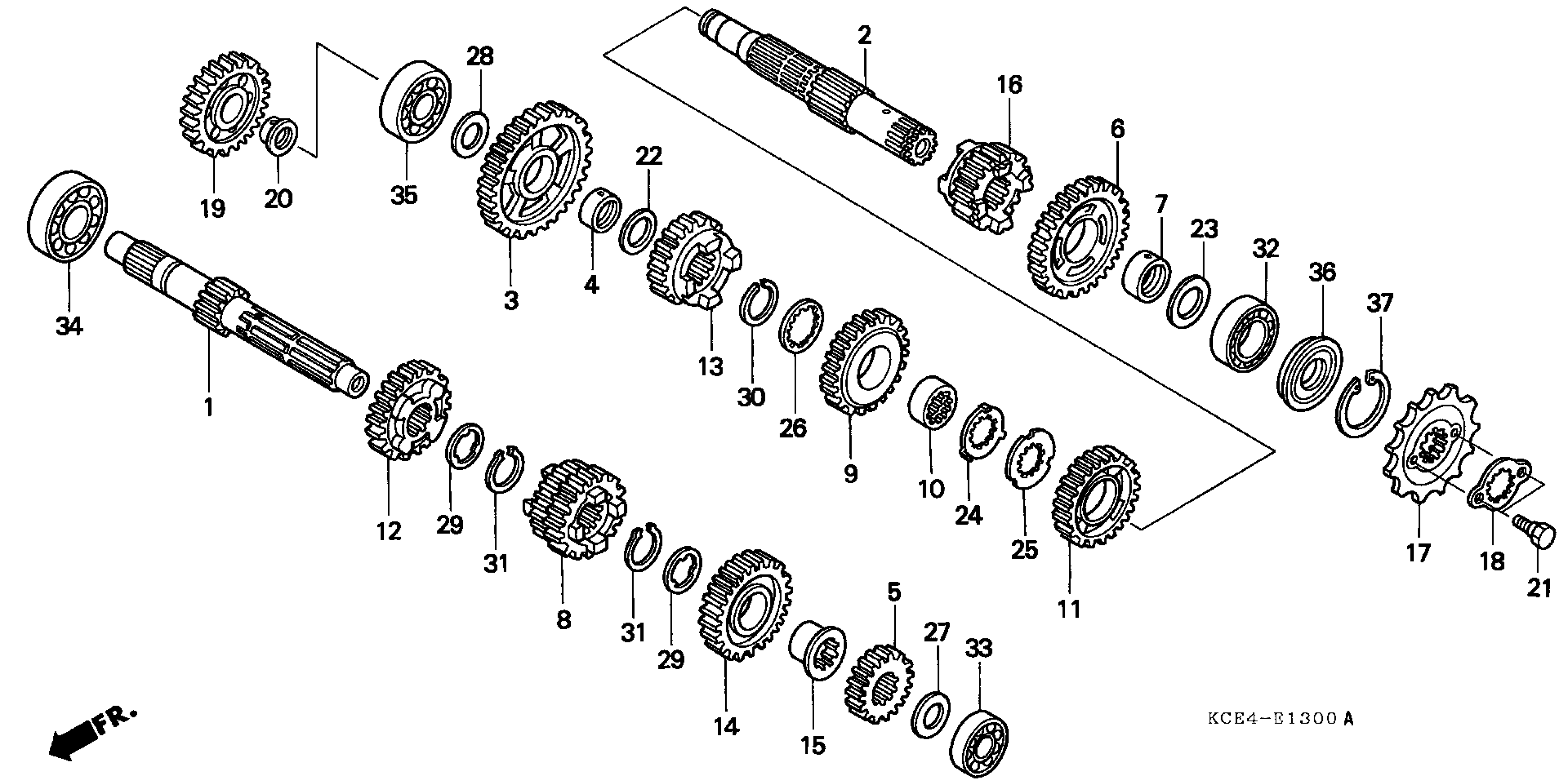

Honda XR250RA (03) MOTORCYCLE, JPN, VIN# JH2ME080-3M800001 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT (13T)

23210-KW3-010

$204.61

2

COUNTERSHAFT

23220-KCZ-000

Unavailable

3

GEAR, COUNTERSHAFT LOW (36T)

23411-KCZ-000

$150.18

4

BUSH (18X23X9.5)

23412-KCZ-000

$16.56

5

GEAR, MAINSHAFT SECOND (17T)

23421-KCE-670

Unavailable

6

GEAR, COUNTERSHAFT SECOND (33T)

23431-KCE-670

Unavailable

7

BUSH (22X25X10)

23432-KCZ-000

$8.98

8

GEAR, MAINSHAFT THIRD & FOURTH (20T/23T)

23441-KCE-670

Unavailable

9

GEAR, COUNTERSHAFT THIRD (29T)

23451-KCZ-000

Unavailable

10

COLLAR, SPLINE (22X25X9)

23452-KW3-000

$19.00

11

GEAR, COUNTERSHAFT FOURTH (27T)

23471-KCE-670

Unavailable

12

GEAR, MAINSHAFT FIFTH (25T)

23481-KCE-670

Unavailable

13

GEAR, COUNTERSHAFT FIFTH (24T)

23491-KCZ-000

Unavailable

14

GEAR, MAINSHAFT SIXTH (27T)

23501-KCZ-000

$127.77

15

COLLAR, SPLINE (23MM)

23505-KW3-000

$22.84

16

GEAR, COUNTERSHAFT SIXTH (22T)

23511-KCZ-010

$162.11

17

SPROCKET, DRIVE (13T)

23801-KCE-670

Unavailable

18

PLATE, FIXING

23802-KW3-010

$5.30

19

GEAR, KICK STARTER IDLE (24T)

28221-KCE-670

Unavailable

20

BUSH (15MM)

28222-KK0-000

$34.48

21

BOLT, DRIVE SPROCKET FIXING

90084-041-000

$4.62

22

WASHER, THRUST (18MM)

90401-KCZ-000

$1.89

23

WASHER, THRUST (22.2MM)

90401-KE7-000

$4.20

24

WASHER, LOCK INVOLUTE (22X27X0.8)

90402-KW3-000

$2.48

25

WASHER, THRUST INVOLUTE (22X30X1.6)

90403-KW3-000

$4.25

26

WASHER, THRUST INVOLUTE (22X21X1)

90404-KW3-000

$3.87

27

WASHER, THRUST (15MM)

90451-107-000

$1.49

28

WASHER, THRUST (17MM)

90454-KF0-000

$4.39

29

WASHER A, SPLINE (20MM)

90455-107-000

$1.92

30

CIRCLIP (OUTER) (22MM)

90601-437-000

$3.20

31

SET-RING (20MM)

90605-200-000

$2.92

32

BEARING, BALL (62/22) (KOYO)

91004-KW3-004

$31.42

33

BEARING, BALL (6202) (NTN)

91005-KK0-003

$37.11

34

BEARING, BALL (6204) (NTN)

91006-KK0-003

$25.94

35

BEARING, RADIAL BALL (17X42X12) (NTN)

91007-KK0-000

$27.33

36

OIL SEAL (21.5X32X3.5) (ARAI)

91201-KCZ-003

$9.96

37

CIRCLIP (INNER) (37MM)

94520-37100

$2.30
