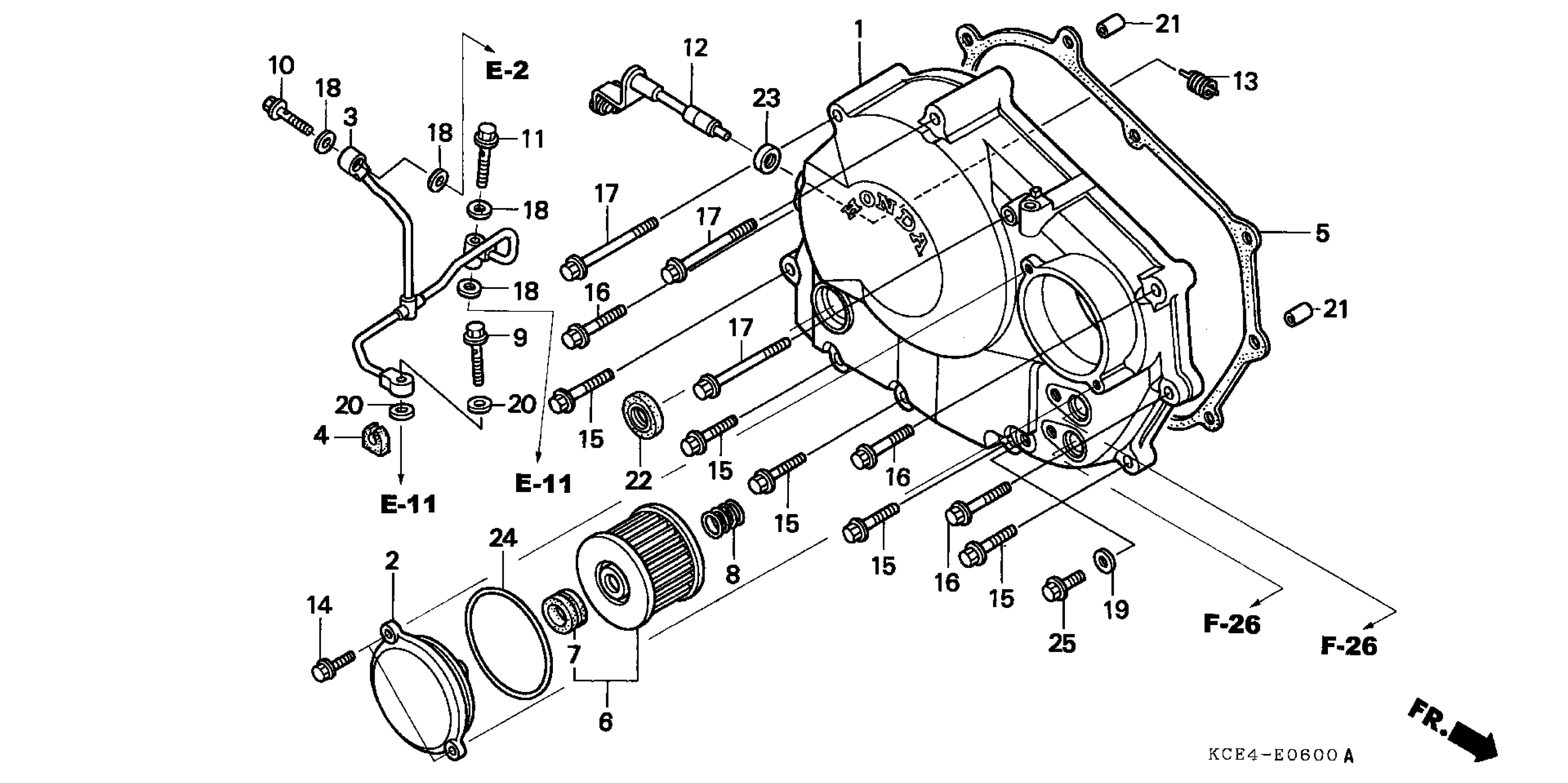

Honda XR250RA (03) MOTORCYCLE, JPN, VIN# JH2ME080-3M800001 RIGHT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, R. CRANKCASE | Use up to Engine SN 2720000 This part replaces 11330-KCE-670.

11330-KCE-671

Unavailable

1

COVER, R. CRANKCASE

11330-KCE-671

Unavailable

2

COVER, OIL FILTER

11333-KCZ-000

Unavailable

3

PIPE, OIL PASSAGE

11335-KCE-670

Unavailable

4

RUBBER, OIL PASSAGE PIPE

11338-KK0-000

Unavailable

5

GASKET, R. CRANKCASE COVER

11394-KCZ-000

$27.46

6

ELEMENT, OIL FILTER This part replaces 15410-KF0-305.

15410-KF0-315

$5.54

6

ELEMENT, OIL FILTER

15410-KF0-315

$5.54

6

ELEMENT, OIL FILTER This part replaces 15412-KF0-010.

15410-KF0-315

$5.54

7

RUBBER, FILTER

15413-MC8-000

$3.35

8

SPRING, OIL FILTER ELEMENT SETTING

15414-KF0-000

$4.24

9

BOLT, FLANGE (8X28)

15532-KK0-770

$7.00

10

BOLT, FLANGE (7X25)

15533-KK0-000

$7.20

11

BOLT, FLANGE (7X38)

15534-KCE-670

Unavailable

12

LEVER, CLUTCH

22810-KCZ-000

Unavailable

13

SPRING, CLUTCH LEVER

22815-KM7-700

$4.17

14

BOLT, FLANGE (6X16) (NSHF)

90004-GHB-630

$3.51

15

BOLT, FLANGE (6X28) (NSHF)

90004-GHB-680

$3.33

16

BOLT, FLANGE (6X40) (NSHF)

90004-GHB-710

$4.07

17

BOLT, FLANGE (6X65) (NSHF)

90004-GHB-760

$5.57

18

WASHER, SEALING (7MM)

90441-MC0-000

$2.39

19

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

20

WASHER C (8MM)

90475-703-000

$1.49

21

PIN, DOWEL (8X14)

90704-KL4-000

Unavailable

22

OIL SEAL (18X29X7) (ARAI)

91202-KK0-003

$9.13

23

OIL SEAL (12X18X5) (ARAI)

91204-KK0-003

$5.05

24

O-RING (54X2.4) (ARAI)

91302-KF0-003

$3.47

25

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
