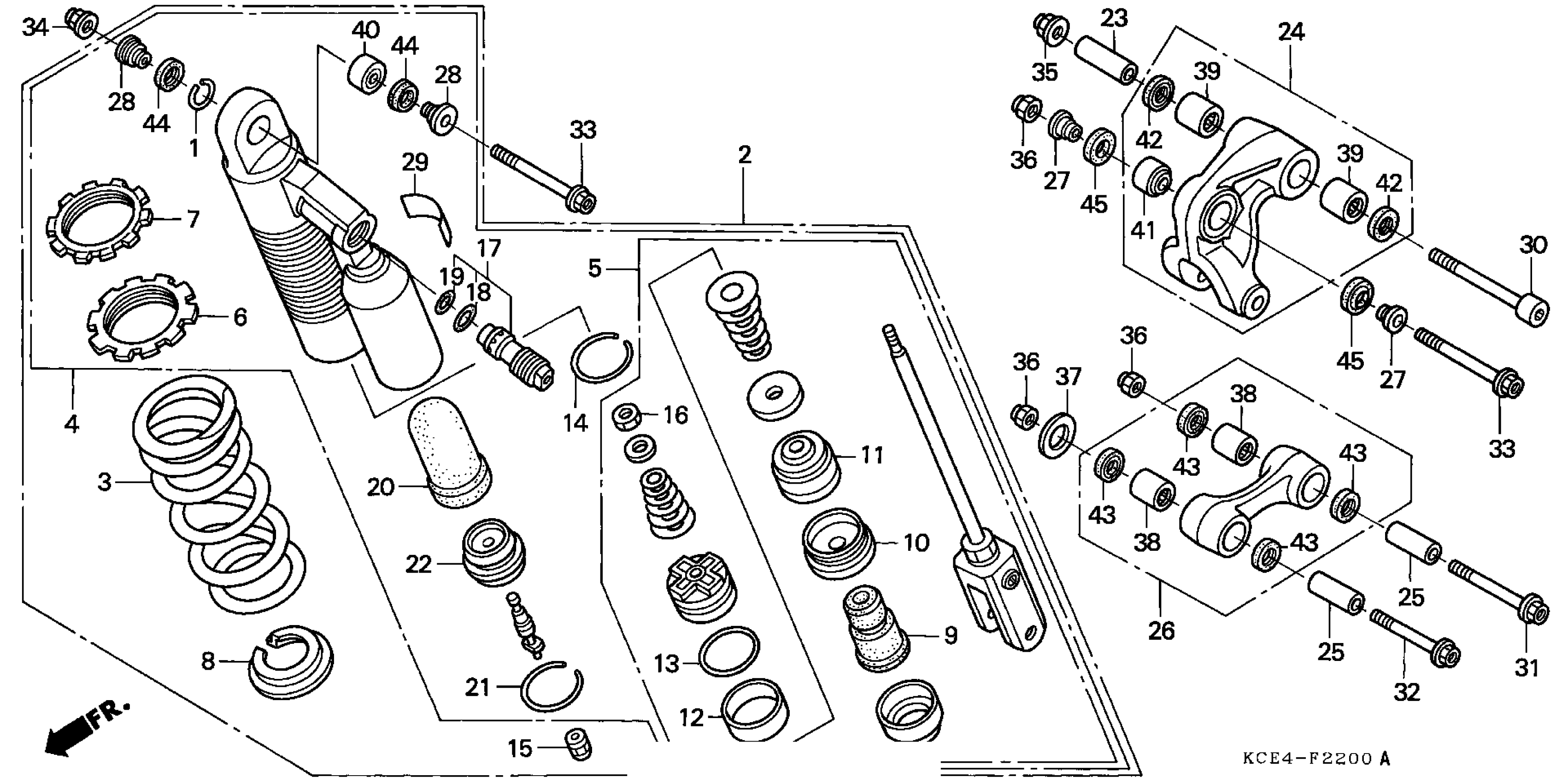

Honda XR250RA (03) MOTORCYCLE, JPN, VIN# JH2ME080-3M800001 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

RING, STOPPER

41405-HA7-670

$2.97

2

SHOCK ABSORBER ASSY., RR. (KAYABA)

52400-KCE-721

Unavailable

3

SPRING, RR. SHOCK ABSORBER (KAYABA)

52401-KCE-721

Unavailable

4

DAMPER, RR.

52410-KCE-721

Unavailable

5

ROD, PISTON

52421-KCE-721

Unavailable

6

SEAT, SPRING (UPPER)

52422-KS6-701

Unavailable

7

NUT, ADJUSTER

52423-KS6-701

Unavailable

8

SEAT, SPRING (LOWER)

52424-KS6-701

Unavailable

9

RUBBER, BUMPER

52427-KT1-671

$17.61

10

CAP, CASE

52428-KS6-701

Unavailable

11

CASE, ROD GUIDE

52429-KS6-831

$35.59

12

RING, PISTON

52431-KS6-831

Unavailable

13

O-RING (35.5X2.0) (KAYABA) (USE P/N: 52437-KS6-701) (N/A: USE 52437-KS6-701)

52432-KS6-831

Unavailable

14

RING, SNAP (KAYABA)

52435-ML3-791

Unavailable

15

CAP, AIR VALVE

52436-KA3-731

Unavailable

16

NUT, HEX. (12MM)

52438-KA3-731

$3.10

17

ADJUSTER, COMPRESSION DAMPING FORCE

52440-KCE-671

Unavailable

18

O-RING (17.8X2.4) (KAYABA)

52447-KS6-701

$2.98

19

O-RING (15.5X1.5) (KAYABA)

52448-KS6-701

Unavailable

20

BLADDER

52451-KZ4-003

$30.00

21

RING, SNAP

52452-KZ4-003

Unavailable

22

CAP, BLADDER

52453-KZ4-003

Unavailable

23

COLLAR, CUSHION ARM PIVOT

52463-KCZ-000

Unavailable

24

ARM SUB-ASSY., SHOCK ABSORBER

52469-KCZ-000

Unavailable

25

COLLAR, CUSHION CONNECTING ROD

52473-KZ9-710

$15.97

26

ROD SUB-ASSY., SHOCK CONNECTING

52479-KCZ-000

Unavailable

27

COLLAR, DAMPER

52486-KN5-000

$8.57

28

COLLAR, SHOCK ABSORBER (UPPER)

52486-KS6-004

Unavailable

29

LABEL, RR. DAMPER

87516-KCE-670

Unavailable

30

BOLT, SOCKET (12X90)

90128-KCZ-000

Unavailable

31

BOLT, FLANGE (10X74)

90129-KCZ-000

$5.69

32

BOLT, FLANGE (10X69) This part replaces 90151-KF0-000.

90151-KV6-910

Unavailable

32

BOLT, FLANGE (10X69)

90151-KV6-910

Unavailable

33

BOLT, FLANGE (10X55)

90153-KF0-000

$9.92

34

NUT, U (10MM) (FUSE RASHI)

90304-GE8-003

$3.67

35

NUT, FLANGE (12MM) (FUSERASHI)

90306-KF0-003

$3.85

36

NUT, U (10MM)

90306-KZ4-711

$3.74

37

WASHER (10MM)

90410-HC4-000

$3.81

38

BEARING, NEEDLE (KOYO)

91071-KV3-005

$24.88

39

BEARING, NEEDLE (20X26X20)

91072-MY1-005

$18.51

40

BEARING, SPHERICAL (14MM)

91077-KA3-831

Unavailable

41

BEARING, SPHERICAL (14MM)

91077-KN5-004

$22.62

42

DUST SEAL (20X26X4.5) (ARAI)

91254-KS6-003

$9.19

43

DUST SEAL (17X24X5) (ARAI)

91262-KV3-831

$6.21

44

DUST SEAL, RR. SHOCK (UPPER)

91351-KA3-831

$6.85

45

DUST SEAL B

91351-KN5-004

$4.06
