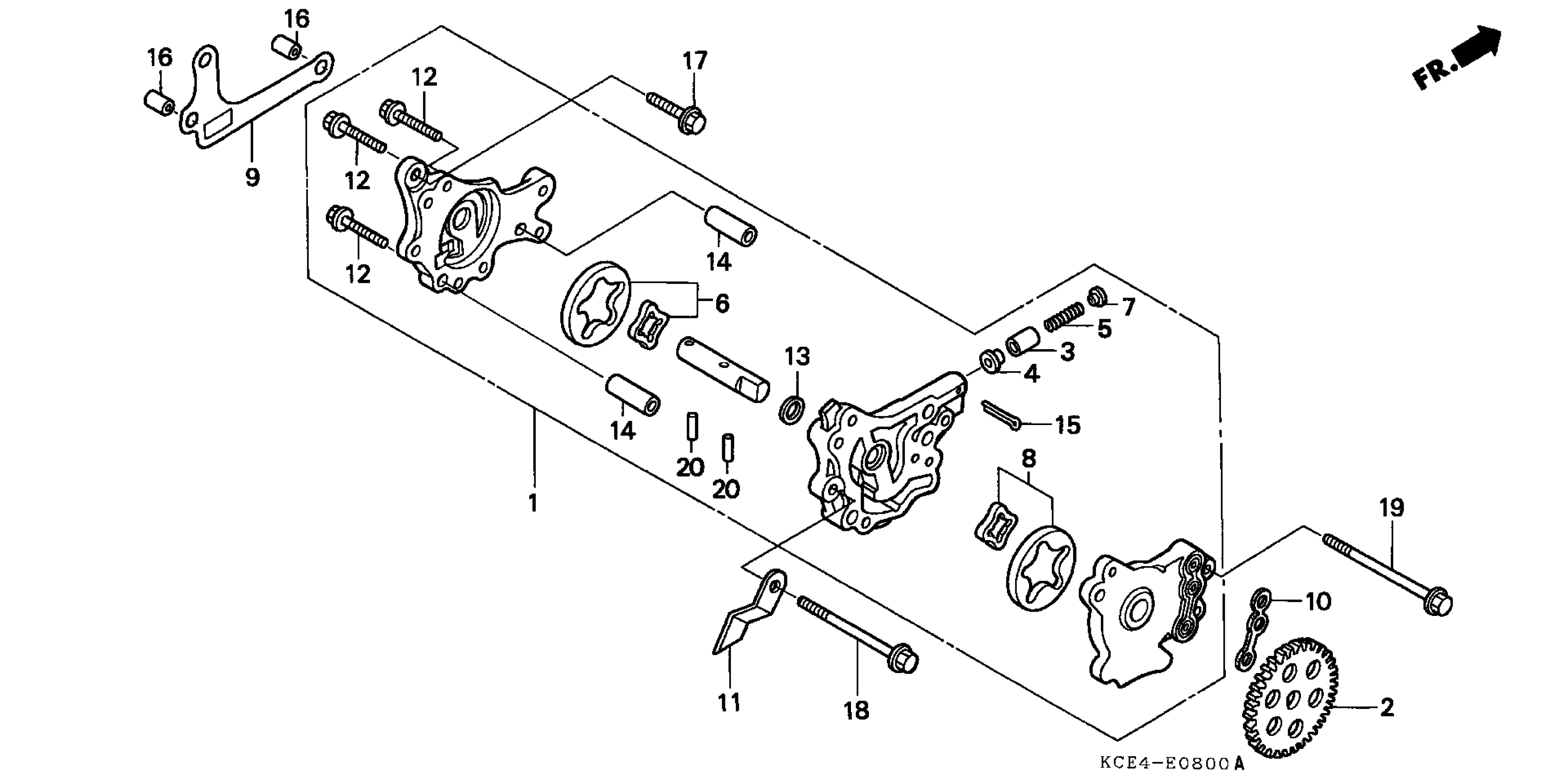

Honda XR250RA (03) MOTORCYCLE, JPN, VIN# JH2ME080-3M800001 OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY., OIL

15100-KCZ-950

Unavailable

2

GEAR, OIL PUMP DRIVEN (26T)

15105-KCZ-950

$85.07

3

VALVE, OIL LEAK STOPPER

15106-MG3-000

$16.97

4

OIL SEAL, LEAK STOPPER

15107-MG3-000

$4.53

5

SPRING, OIL LEAK STOPPER

15108-MG3-000

$3.80

6

ROTOR SET A, OIL PUMP

15110-KCZ-950

Unavailable

7

SEAT B, SPRING

15111-MG3-000

$2.92

8

ROTOR SET B, OIL PUMP

15120-KCZ-950

Unavailable

9

SEAT, OIL PUMP

15151-KCZ-000

Unavailable

10

SEAL, RUBBER

15152-KCZ-000

$5.60

11

STOPPER, SCREEN

15422-KCZ-000

Unavailable

12

BOLT, FLANGE (5X25) (CT200)

90014-KCZ-000

$1.97

13

WASHER, THRUST (11MM)

90456-333-000

$2.53

14

PIN, DOWEL (8X23)

90701-KCZ-000

$4.70

15

PIN, COTTER (3.0X45) This part replaces 94201-30200.

94201-30450

$1.49

15

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

15

PIN, COTTER (3.0X45) This part replaces 94201-30280.

94201-30450

$1.49

15

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

15

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

15

PIN, SPLIT (3.0X45)

94201-30450

$1.49

16

PIN, DOWEL (8X14)

94301-08140

$2.25

17

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

18

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

18

BOLT, FLANGE (6X45)

95701-06045-07

$2.06

19

BOLT, FLANGE (6X50)

95701-06050-00

$2.06

20

ROLLER (4X15.8)

96220-40158

$1.49
