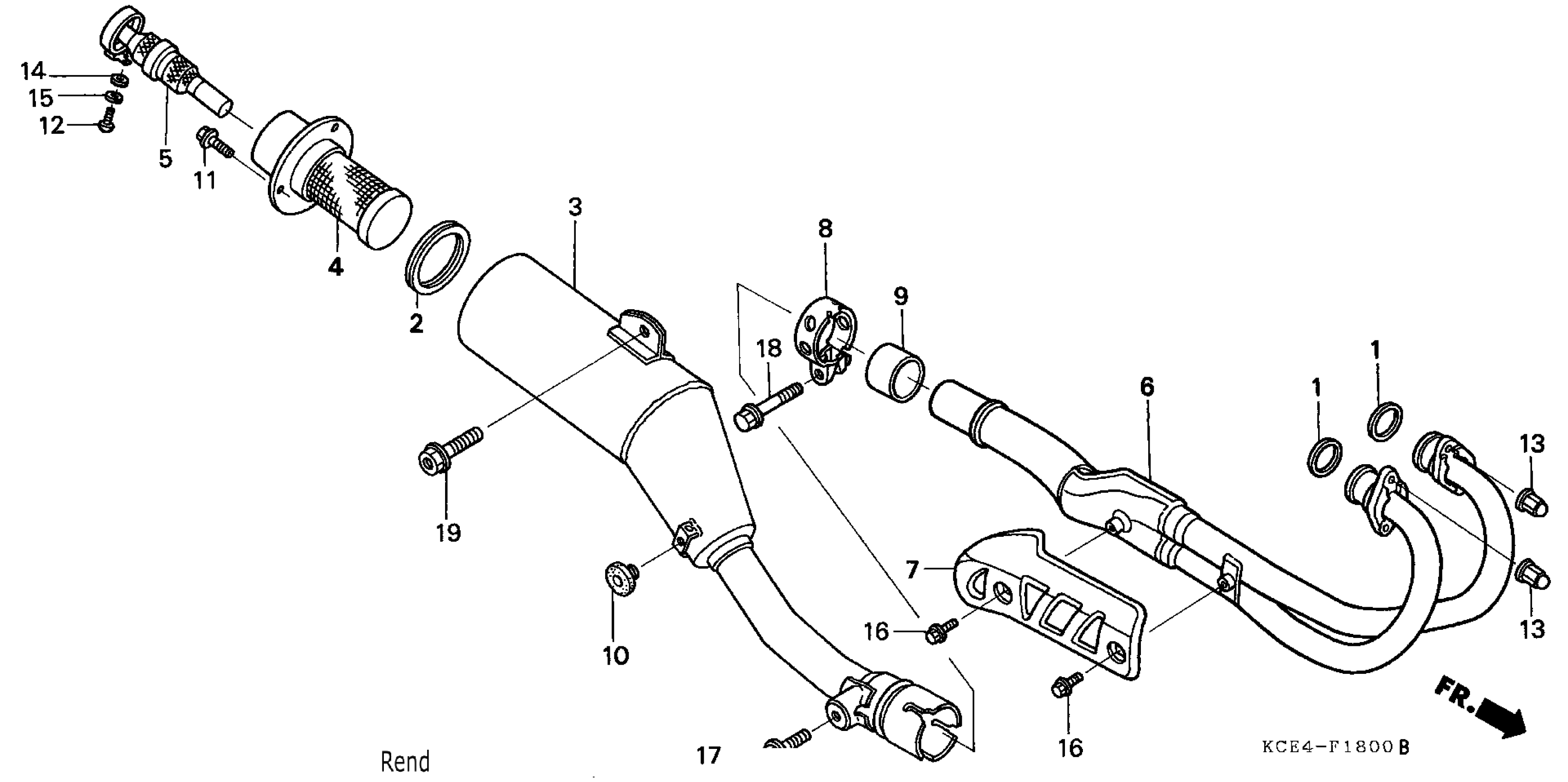

Honda XR250RA (03) MOTORCYCLE, JPN, VIN# JH2ME080-3M800001 MUFFLER Diagram

#

Description
Price

1

GASKET, EX. PIPE

18291-KZ1-670

$5.21

2

GASKET, MUFFLER

18292-MV4-000

$7.99

3

MUFFLER

18310-KCE-671

$474.88

4

ARRESTER, SPARK

18317-KCE-660

Unavailable

5

DIFFUSER, TAIL

18319-KCE-660

Unavailable

6

PIPE, EX.

18320-KCE-671

Unavailable

7

PROTECTOR, EX. PIPE

18325-KCY-670

$33.49

8

BAND, R. MUFFLER

18373-KE8-000

$26.30

8

BAND, R. MUFFLER This part replaces 18374-MG7-701.

18373-KE8-000

$26.30

9

GASKET, MUFFLER

18392-MK4-000

$12.54

10

RUBBER, SIDE COVER

83512-KA4-700

$4.37

11

BOLT, FLANGE (6X10) This part replaces 90101-KCE-000.

96001-06010-07

$1.63

11

BOLT, FLANGE (6X10)

96001-06010-07

$1.63

12

BOLT, TORX (4X10)

90102-KCY-670

Unavailable

13

NUT, CAP (6MM)

90304-438-000

$6.81

14

WASHER, PLAIN (4MM)

94101-04000

$0.91

14

WASHER, PLAIN (4MM) This part replaces 94101-04400.

94101-04000

$0.91

15

WASHER, SPRING (4MM)

94111-04400

$0.63

16

BOLT, FLANGE (6X8)

96001-06008-02

$1.43

17

BOLT, FLANGE (8X16)

96300-08016-00

$1.29

18

BOLT, FLANGE (8X40)

96300-08040-00

$1.97

19

BOLT, FLANGE (8X28)

96400-08028-00

$1.71
