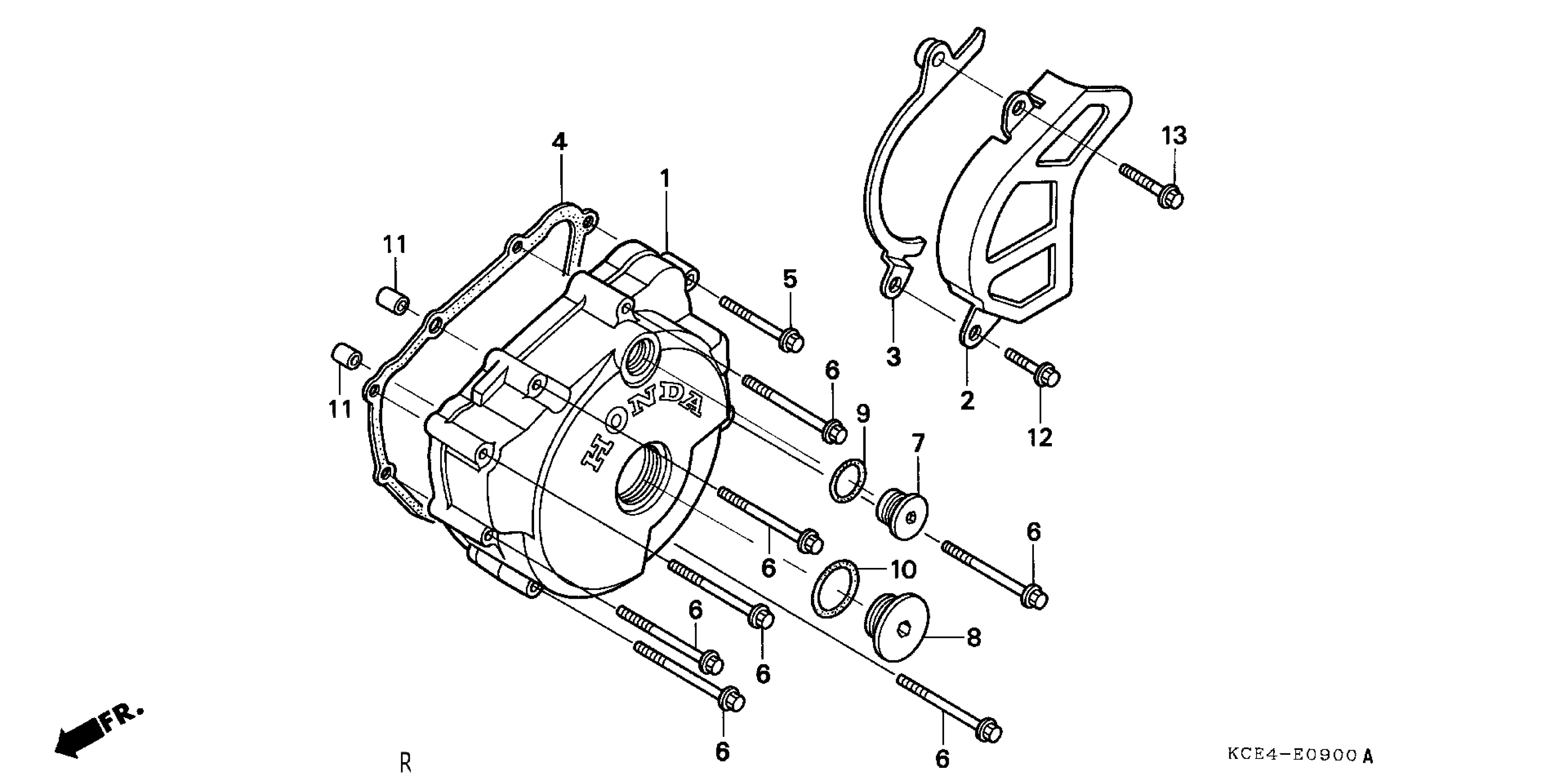

Honda XR250RA (03) MOTORCYCLE, JPN, VIN# JH2ME080-3M800001 LEFT CRANKCASE COVER Diagram

#

Description

Price

1

COVER, L. CRANKCASE

11341-KCE-670

Unavailable

2

COVER, DRIVE SPROCKET

11351-KCE-670

$24.85

3

GUIDE, DRIVE CHAIN

11352-KK0-000

$20.33

4

GASKET, L. This part replaces 11395-KW3-880.

11395-KW3-882

$15.22

4

GASKET, L. This part replaces 11395-KW3-881.

11395-KW3-882

$15.22

5

BOLT, FLANGE (6X32) (NSHF)

90004-GHB-690

$3.85

6

BOLT, FLANGE (6X50) (NSHF)

90004-GHB-730

$4.25

7

CAP (14MM)

90084-MN8-010

$12.82

8

CAP (30MM)

90087-HB5-000

$16.69

9

O-RING (13.8X2.5)

91303-377-000

$3.42

10

O-RING (27X2) (ARAI)

91305-KF0-003

$2.92

11

PIN, DOWEL (8X14)

94301-08140

$2.25

12

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

13

BOLT, FLANGE (6X22)

96001-06022-00

$1.49
