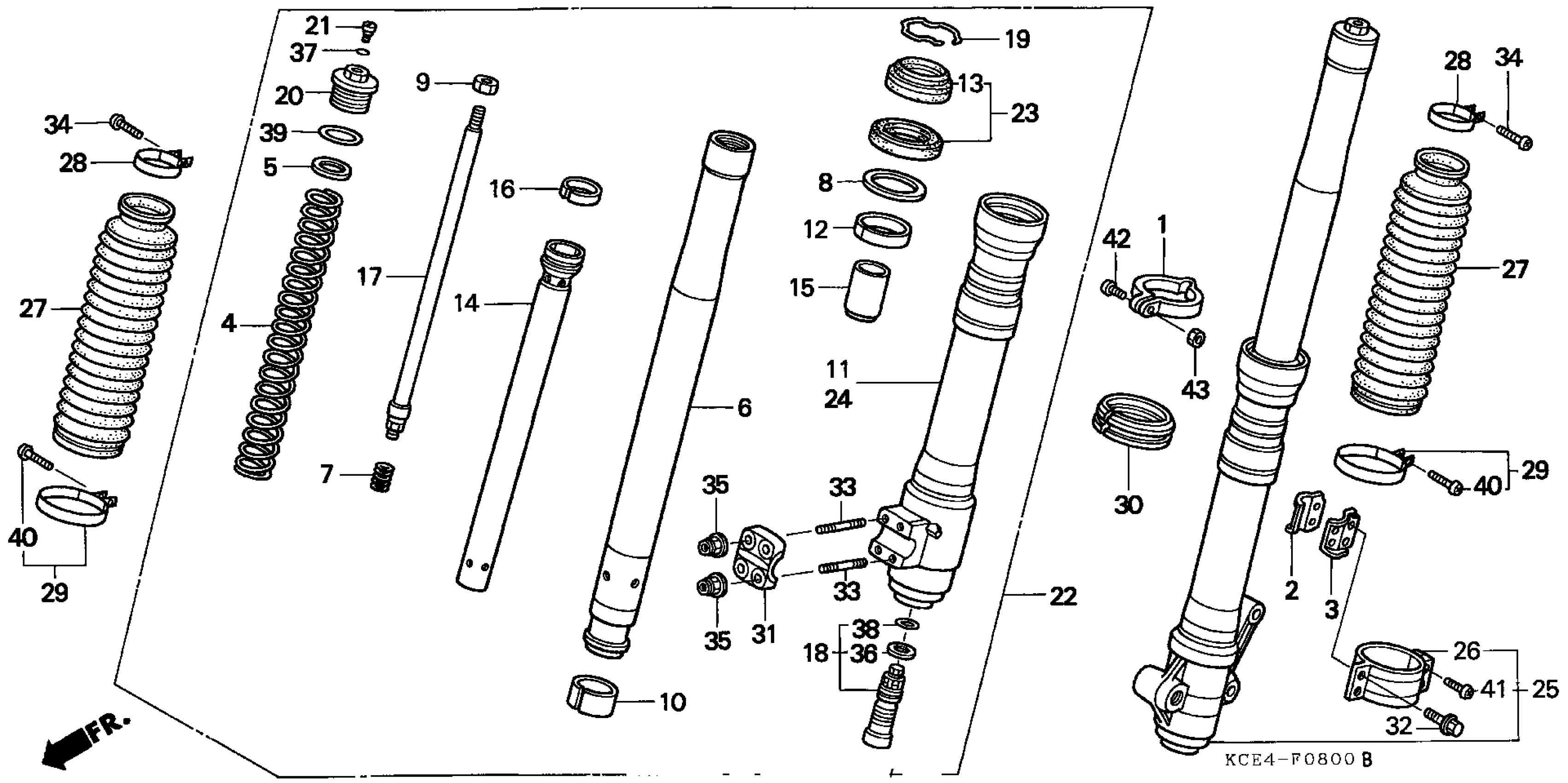

Honda XR250RA (03) MOTORCYCLE, JPN, VIN# JH2ME080-3M800001 FRONT FORK Diagram

#

Description
Price

1

CLAMP, SPEEDOMETER CABLE

44832-KCZ-000

$8.98

2

CLAMP A, FR. BRAKE CABLE

45461-KG0-000

Unavailable

3

CLAMP B, FR. BRAKE CABLE

45462-KG0-000

Unavailable

4

SPRING, FR. FORK

51401-KCE-721

Unavailable

5

WASHER

51405-KCZ-003

Unavailable

6

PIPE, FR. FORK

51410-KCZ-003

Unavailable

7

SPRING, FR. REBOUND

51411-KCZ-003

Unavailable

8

WASHER

51412-KA4-004

$6.75

9

NUT, HEX. (17MM)

51415-KCZ-003

$8.97

10

SLEEVE, FORK PIPE

51415-KZ1-671

$17.49

11

CASE, R. (LOWER)

51420-KCZ-003

Unavailable

12

BUSH, FORK PIPE

51424-KZ1-671

$22.15

13

DUST SEAL, FR. FORK

51425-KT1-671

Unavailable

14

CYLINDER

51430-KCE-671

Unavailable

15

PIECE, OIL LOCK

51432-KCE-721

Unavailable

16

RING, PISTON

51437-KT1-671

Unavailable

17

ROD, PISTON

51440-KCE-721

Unavailable

18

BOLT, CENTER (KAYABA)

51441-KCE-721

Unavailable

19

RING, SNAP

51447-KA4-004

$4.24

20

BOLT, FR. FORK

51450-KCZ-003

Unavailable

21

BOLT, PLUG

51456-KZ4-711

Unavailable

22

FORK SUB-ASSY., R. FR. (KAYABA)

51480-KCE-721

Unavailable

23

SEAL SET, FR. FORK

51490-KZ1-671

$31.58

24

CASE, L. (LOWER)

51520-KCZ-003

$434.38

25

FORK SUB-ASSY., L. FR. (KAYABA)

51580-KCE-721

Unavailable

26

HOLDER, BRAKE HOSE CLAMP

51610-KCZ-003

Unavailable

27

BOOT,FR.FORK*NH1* This part replaces 51611-KT1-671ZE.

51611-KT1-305ZE

$44.40

28

BAND, BOOT (UPPER)

51612-KT1-671

Unavailable

29

BAND, BOOT (LOWER)

51613-KA3-711

Unavailable

30

GUIDE, FR. FORK BOOT

51614-KCZ-003

Unavailable

31

HOLDER, AXLE

51634-KT0-671

Unavailable

32

BOLT, FLANGE (6MM)

90113-KZ3-000

$2.70

33

BOLT, STUD (6X34)

90136-KA3-831

$4.51

34

SCREW, PAN (4X16)

90202-KA4-004

$2.48

34

SCREW, PAN (4X26) This part replaces 93500-04014.

93500-04016-0A

$1.49

34

SCREW, PAN (4X26) This part replaces 93500-04016.

93500-04016-0A

$1.49

34

SCREW, PAN (4X16)

93500-04016-0A

$1.49

34

SCREW, PAN (4X26) This part replaces 93500-04016-1A.

93500-04016-0A

$1.49

35

NUT, U (6MM)

90301-473-003

$4.07

36

WASHER (KAYABA)

90544-KS6-004

$3.19

37

O-RING (2.8X1.9)

91260-KZ4-711

$2.92

38

O-RING (17.5X1.5)

91261-KCZ-003

$3.19

39

O-RING (31.7X3.5)

91356-KT1-671

$3.13

40

SCREW, PAN (4X16)

93500-04016-0A

$1.49

41

SCREW, PAN (4X20)

93500-04020-0A

$1.49

41

SCREW, PAN (4X20) This part replaces 93500-04020-1A.

93500-04020-0A

$1.49

42

SCREW, PAN (5X20)

93500-05020-0G

$1.49

43

NUT, HEX. (5MM)

94001-05070-0S

$1.49
