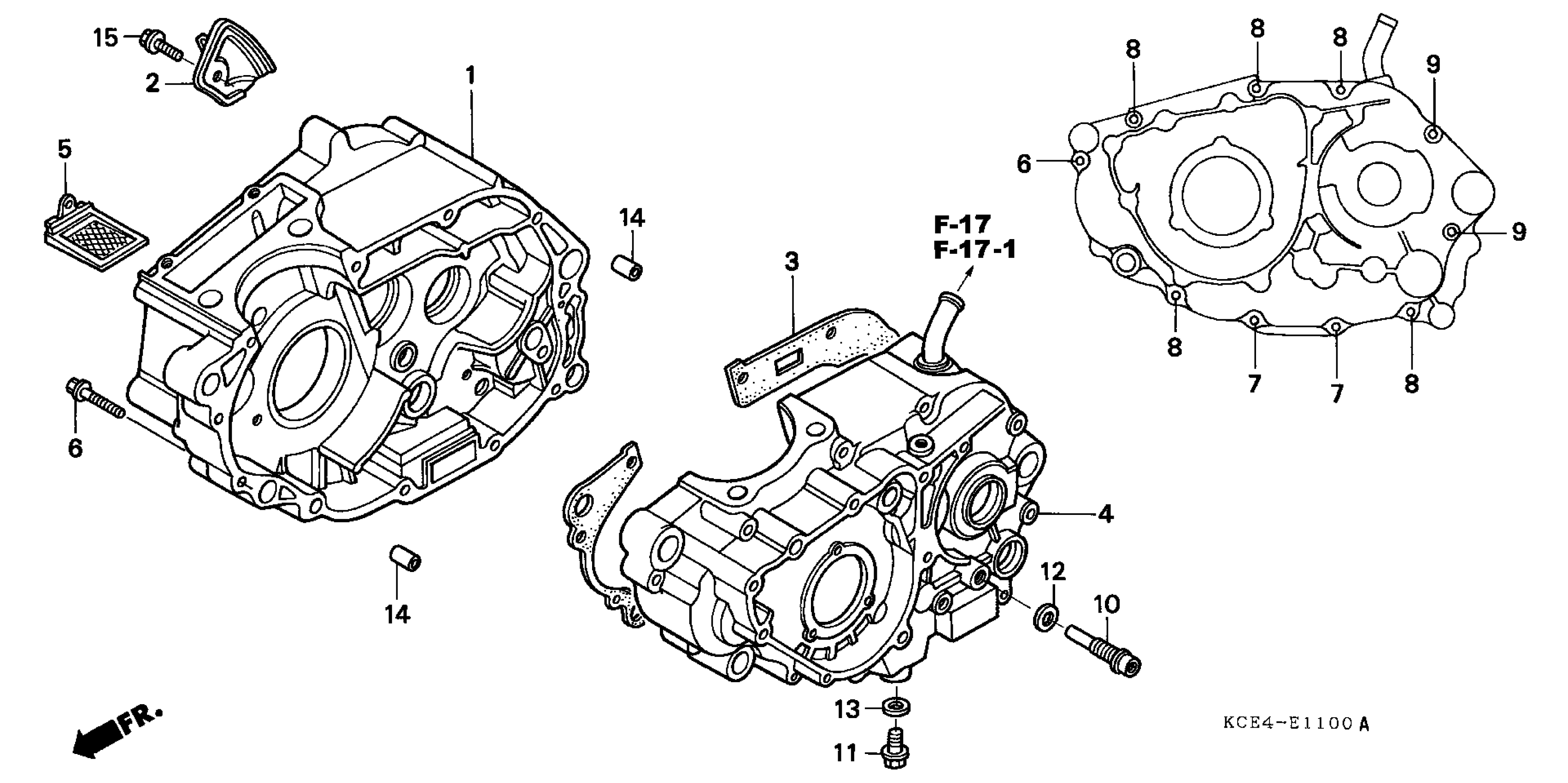

Honda XR250RA (03) MOTORCYCLE, JPN, VIN# JH2ME080-3M800001 CRANKCASE Diagram

CRANKCASE, R.

11100-KCE-670

Unavailable

PLATE, BREATHER

11110-KK0-770

$27.68

GASKET, CRANKCASE

11191-KCZ-000

Unavailable

CRANKCASE, L.

11200-KCE-670

Unavailable

SCREEN, OIL FILTER (KOYO)

15421-MN1-671

$10.13

BOLT, FLANGE (6X35) (NSHF)

90004-GHB-700

$3.89

BOLT, FLANGE (6X55) (NSHF)

90004-GHB-740

$4.65

BOLT, FLANGE

90004-GHB-770

$5.20

BOLT, FLANGE (6X90) (NSHF)

90004-GHB-810

$5.28

BOLT, GEARSHIFT RETURN SPRING STOPPER

90021-KW3-010

$6.79

BOLT, DRAIN PLUG (12X15) This part replaces 90131-883-000.

90131-896-650

$2.03

BOLT, DRAIN PLUG (12X15)

90131-896-650

$2.03

WASHER, SEALING (10MM)

90441-329-000

$3.44

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.13

PIN, DOWEL (8X14)

94301-08140

$2.76

BOLT, FLANGE (6X12)

95701-06012-00

$2.03
