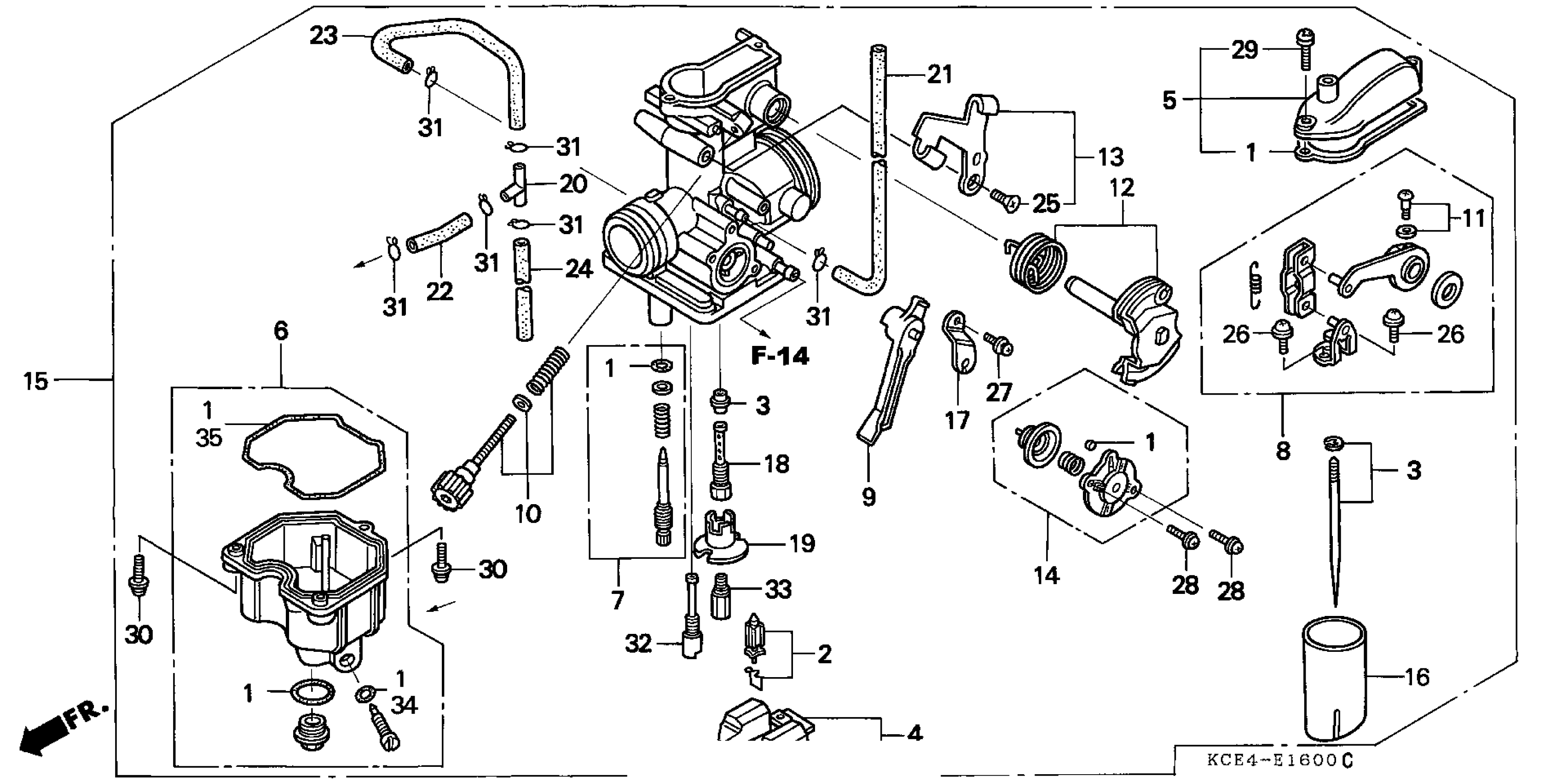

Honda XR250RA (03) MOTORCYCLE, JPN, VIN# JH2ME080-3M800001 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-KCE-670

$31.83

2

VALVE SET, FLOAT

16011-KN4-A10

$32.11

3

NEEDLE SET, JET

16012-KCE-670

Unavailable

4

FLOAT SET

16013-KN4-A10

$31.14

5

TOP SET

16014-KCE-771

Unavailable

6

CHAMBER SET, FLOAT

16015-KCE-671

Unavailable

7

SCREW SET A This part replaces 16016-KCT-690.

16016-KC2-970

$22.75

7

SCREW SET A

16016-KC2-970

$22.75

8

ARM SET, LINK

16018-KCE-771

Unavailable

9

LEVER, CHOKE

16019-KCE-671

Unavailable

10

SCREW SET B

16028-KBW-901

$20.75

11

SCREW SET C

16029-KCE-670

$10.29

12

LINK SET, THROTTLE

16032-KCE-670

Unavailable

13

STAY SET, WIRE

16037-KCE-670

$16.88

14

VALVE SET, AIR CUT

16048-KB7-901

$135.75

15

CARBURETOR ASSY. (PDG1A C)

16100-KCE-672

Unavailable

16

VALVE, THROTTLE

16111-KCE-670

Unavailable

17

PLATE, CHOKE LEVER SETTING

16119-429-771

$8.80

18

HOLDER, NEEDLE JET

16165-427-771

Unavailable

19

HOLDER, JET

16168-382-014

$8.03

20

T-JOINT

16180-195-731

$11.63

21

TUBE, AIR VENT

16198-KCE-670

Unavailable

22

TUBE, AIR VENT This part replaces 16199-KCE-670.

16199-428-405

$2.88

22

TUBE, DRAIN

16199-428-405

$2.88

23

TUBE

16199-KR6-004

$10.03

24

TUBE, OVERFLOW

16199-435-771

$10.22

25

SCREW, FLAT (5X10)

93600-05010-0H

$0.61

25

SCREW, FLAT (5X10) This part replaces 93600-05010-1H.

93600-05010-0H

$0.61

26

SCREW-WASHER (3X8)

93892-03008-08

$1.04

26

SCREW-WASHER (3X8) This part replaces 93892-03008-18.

93892-03008-08

$1.04

27

SCREW-WASHER (4X10)

93892-04010-08

$1.04

27

SCREW-WASHER (4X10) This part replaces 93892-04010-18.

93892-04010-08

$1.04

28

SCREW-WASHER (4X12)

93892-04012-08

$0.58

28

SCREW-WASHER (4X12) This part replaces 93892-04012-18.

93892-04012-08

$0.58

29

SCREW-WASHER (4X14)

93892-04014-08

$1.00

29

SCREW-WASHER (4X14) This part replaces 93892-04014-18.

93892-04014-08

$1.00

30

SCREW-WASHER (4X16)

93892-04016-08

$0.67

30

SCREW-WASHER (4X16) This part replaces 93892-04016-18.

93892-04016-08

$0.67

31

CLIP, TUBE (B6.5)

95002-02659

$1.00

32

JET, SLOW (#45) This part replaces 99103-437-0450.

99103-KPS-0450

$10.12

32

JET, SLOW (#48) | (Optional).

99103-KAE-0480

Unavailable

32

JET, SLOW (#45)

99103-KPS-0450

$10.12

32

JET, SLOW (#42) | (Optional).

99103-MV9-0420

$18.77

32

JET, SLOW (#42) | (Optional). This part replaces 99103-437-0420.

99103-MV9-0420

$18.77

32

JET, SLOW (#48) | (Optional). This part replaces 99103-437-0480.

99103-KAE-0480

Unavailable

33

JET, MAIN (#122) | (Optional).

99101-357-1220

$16.15

33

JET, MAIN (#122) | (Optional). This part replaces 99113-GHB-1220.

99101-357-1220

$16.15

33

JET, MAIN (#132)

99113-GHB-1320

Unavailable

33

JET, MAIN (#135) | (Optional).

99101-KPS-1350

Unavailable

33

JET, MAIN (#115) | (Optional).

99101-357-1150

$16.79

33

JET, MAIN (#118) | (Optional).

99101-357-1180

$9.10

33

JET, MAIN (#125) | (Optional).

99101-357-1250

$9.09

33

JET, MAIN (#128) | (Optional).

99101-357-1280

$8.26

33

JET, MAIN (#130) | (Optional).

99101-357-1300

$7.68

33

JET, MAIN (#138) | (Optional).

99101-357-1380

$8.31

33

JET, MAIN (#140) | (Optional).

99101-357-1400

$7.68

33

JET, MAIN (#145) | (Optional).

99101-357-1450

$8.26

33

JET, MAIN (#115) | (Optional). This part replaces 99113-GHB-1150.

99101-357-1150

$16.79

33

JET, MAIN (#118) | (Optional). This part replaces 99113-GHB-1180.

99101-357-1180

$9.10

33

JET, MAIN (#120) | (Optional).

99113-GHB-1200

$9.09

33

JET, MAIN (#125) | (Optional). This part replaces 99113-GHB-1250.

99101-357-1250

$9.09

33

JET, MAIN (#128) | (Optional). This part replaces 99113-GHB-1280.

99101-357-1280

$8.26

33

JET, MAIN (#130) | (Optional). This part replaces 99113-GHB-1300.

99101-357-1300

$7.68

33

JET, MAIN (#135) | (Optional). This part replaces 99113-GHB-1350.

99101-KPS-1350

Unavailable

33

JET, MAIN (#138) | (Optional). This part replaces 99113-GHB-1380.

99101-357-1380

$8.31

33

JET, MAIN (#140) | (Optional). This part replaces 99113-GHB-1400.

99101-357-1400

$7.68

33

JET, MAIN (#142) | (Optional).

99113-GHB-1420

$8.78

33

JET, MAIN (#145) | (Optional). This part replaces 99113-GHB-1450.

99101-357-1450

$8.26

33

JET, MAIN (#148) | (Optional).

99113-GHB-1480

$8.17

34

O-RING (1.3X4.3)

16075-GHB-640

$2.65

35

GASKET, FLOAT CHAMBER

16163-KCS-920

$10.69
