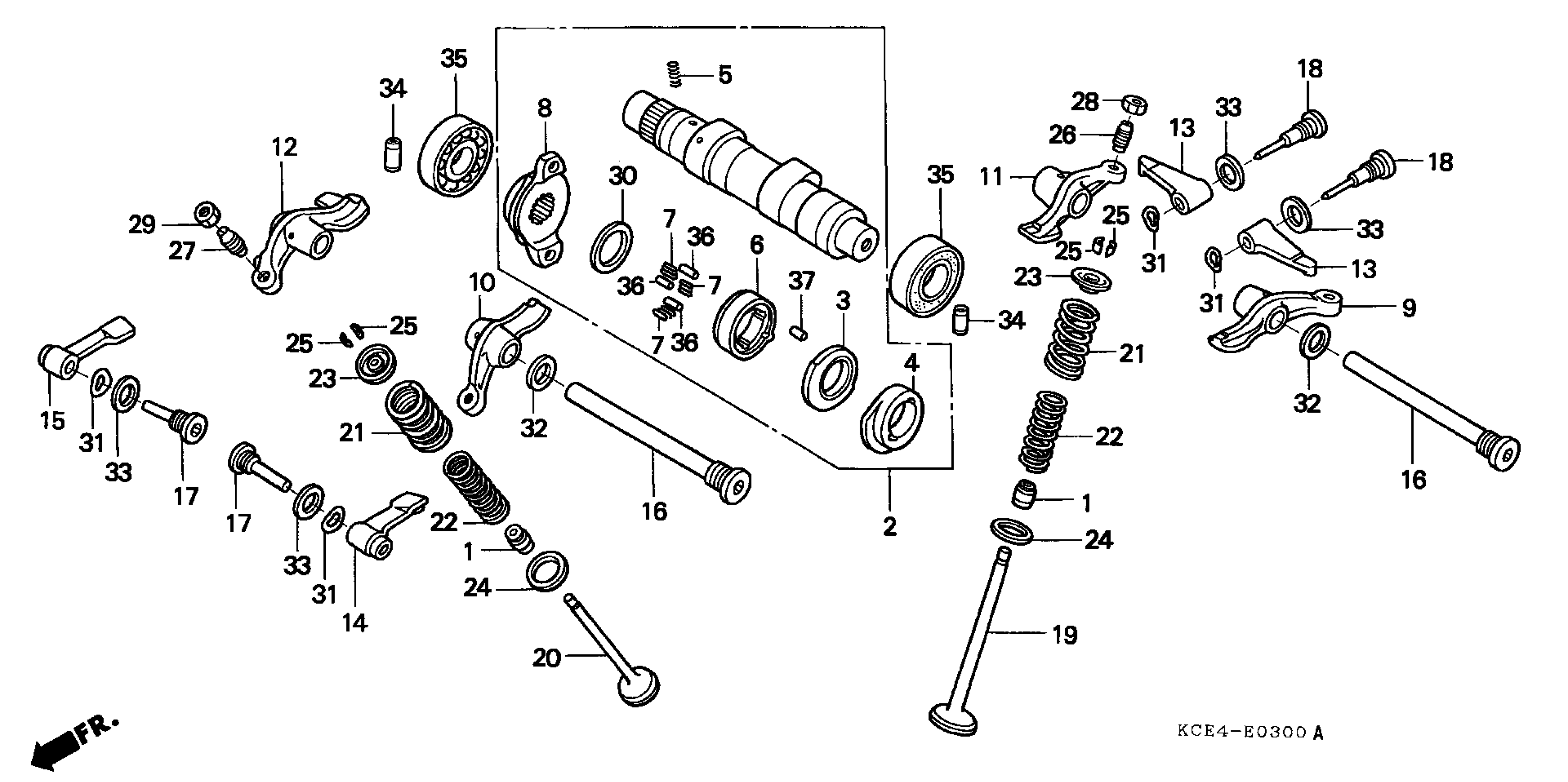

Honda XR250RA (03) MOTORCYCLE, JPN, VIN# JH2ME080-3M800001 CAMSHAFT Diagram

#

Description
Price

1

SEAL, VALVE STEM (NOK)

12209-GB4-681

$6.32

2

CAMSHAFT ASSY.

14000-KCE-670

Unavailable

3

CAM, REVERSE

14102-MN1-670

$66.31

4

PLATE, DECOMPRESSION CAM

14105-KCZ-300

Unavailable

5

SPRING, DECOMPRESSION

14106-MN1-670

$2.97

6

CLUTCH, DECOMPRESSION (OUTER)

14121-KCZ-300

Unavailable

7

SPRING, ROLLER

14122-KV2-940

$5.30

8

FLANGE, CAM SPROCKET

14325-KV2-942

$41.13

9

ARM A, ROCKER

14411-KCZ-000

$70.46

10

ARM B, ROCKER

14421-KCZ-000

$70.46

11

ARM C, ROCKER

14431-KCZ-000

$70.46

12

ARM D, ROCKER

14441-KCZ-000

$66.42

13

ARM, IN. VALVE SUB-ROCKER

14445-KK0-000

$37.29

14

ARM A, SUB-ROCKER EX.

14446-KK0-000

$29.59

15

ARM B, SUB-ROCKER EX.

14447-KK0-000

$29.59

16

BOLT, ROCKER ARM SHAFT

14451-KK0-010

Unavailable

17

SHAFT A, SUB-ROCKER ARM

14455-KK0-000

Unavailable

18

SHAFT B, SUB-ROCKER ARM

14456-KK0-010

Unavailable

19

VALVE, IN.

14711-KCZ-000

$45.77

20

VALVE, EX.

14721-KCZ-000

$84.16

21

SPRING, VALVE (OUTER)

14751-KCZ-003

$12.38

22

SPRING, VALVE (INNER)

14761-KCZ-003

$8.52

23

RETAINER, VALVE SPRING

14771-ML7-920

$14.70

24

SEAT, VALVE SPRING (OUTER)

14775-KCZ-000

Unavailable

25

COTTER, VALVE

14781-MA6-000

$2.92

26

SCREW, TAPPET ADJUSTING

90012-KR0-000

$9.07

27

SCREW, TAPPET ADJUSTING

90012-MK2-000

$7.93

28

NUT, TAPPET ADJUSTING

90206-590-000

$4.83

29

NUT, TAPPET ADJUSTING

90206-657-000

$4.83

30

WASHER, THRUST (17X22X0.75)

90401-MN1-670

$3.64

31

WASHER, WAVE

90406-KF0-003

$2.92

32

WASHER, SEALING (14MM)

90544-KF0-000

$3.26

33

WASHER (12MM)

90545-KF0-000

$3.26

34

PIN, DOWEL (8X17.5)

90701-KK0-000

$5.81

35

BEARING, BALL (6003U)

91001-KS5-000

$34.68

36

ROLLER, DECOMPRESSION CLUTCH

91101-KV2-940

$3.44

37

ROLLER (4X9)

96220-40090

$1.49
