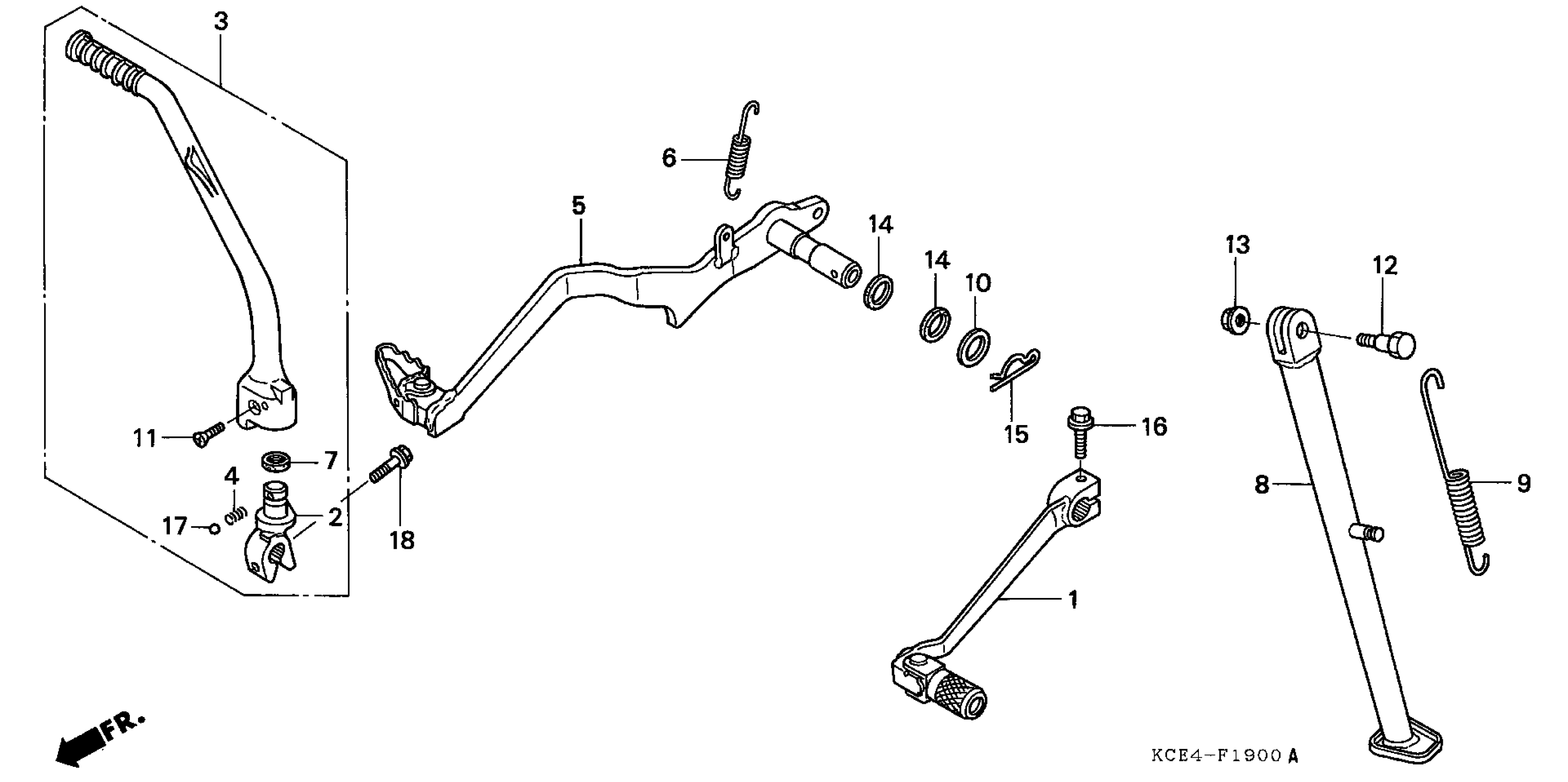

Honda XR250RA (02) MOTORCYCLE, JPN, VIN# JH2ME080-2K700001 PEDAL Diagram

#

Description
Price

1

PEDAL ASSY., CHANGE

24700-KCE-A10

Unavailable

2

JOINT, KICK ARM

28241-KCE-670

$60.15

3

ARM ASSY., KICK STARTER

28300-KCE-670

Unavailable

4

SPRING, KICK STARTER

28333-KK0-000

$2.51

5

PEDAL, BRAKE

46500-KCE-A10

Unavailable

6

SPRING, BRAKE PEDAL

46514-KCZ-000

Unavailable

7

DUST SEAL (17X20X2.5)

46525-KK0-003

$5.05

8

BAR, SIDE STAND

50530-KCE-A10

Unavailable

9

SPRING, SIDE STAND

50535-KAE-730

$10.00

10

WASHER, BUSH

53312-657-000

$6.70

11

BOLT, KICK ARM

90101-MAC-680

$5.92

12

SCREW, SIDE STAND PIVOT

90108-KG0-000

$7.96

13

NUT, U (10MM) (FUSE RASHI)

90304-GE8-003

$3.67

14

DUST SEAL (15X20X3) This part replaces 91251-MT4-000.

91251-MT4-003

$3.80

14

DUST SEAL (15X20X3)

91251-MT4-003

$3.80

15

PIN, LOCK (16MM)

94251-16000

$1.49

16

BOLT, FLANGE (6X20)

95701-06020-07

$1.62

17

BALL, STEEL (#8) (1/4)

96211-08000

$1.49

18

BOLT, FLANGE (8X28)

96300-08028-00

$1.79
