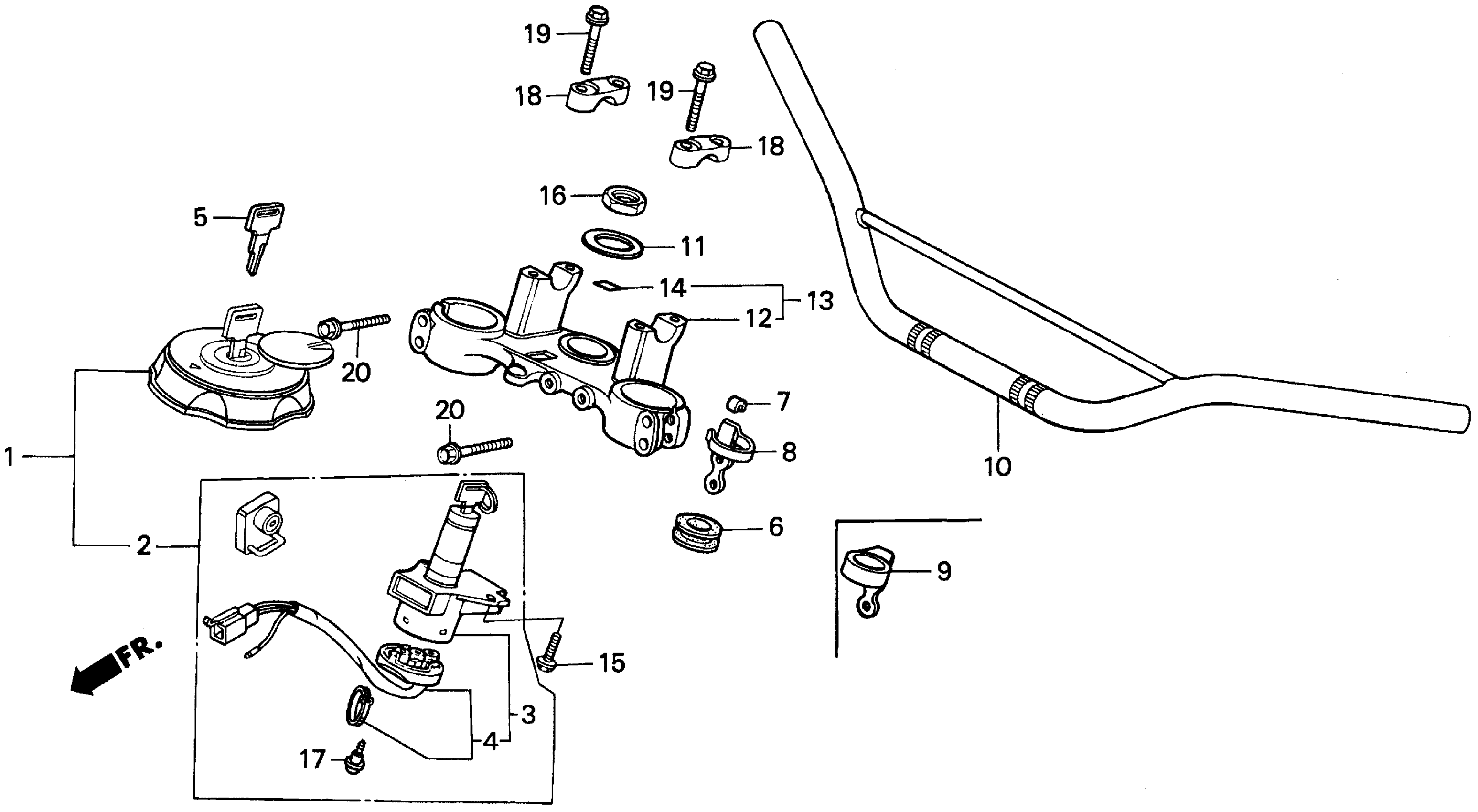

Honda XR250LAC (96) MOTORCYCLE, JPN, VIN# JH2MD221-TM500001 HANDLEBAR Diagram

LOCK SET

35010-KV6-680

Unavailable

SWITCH ASSY., COMBINATION & LOCK

35100-KV6-670

Unavailable

BASE, CONTACT

35101-KV6-670

Unavailable

KEY, BLANK (TYPE2) | (Optional).

35122-KW3-771

$10.10

GUIDE, BRAKE HOSE

45470-KBR-000

$24.28

HANDLEBAR *NH333* (CHALK WHITE)

53100-KV6-670ZB

Unavailable

WASHER, DUST SEAL

53215-GF8-000

$4.17

BRIDGE, FORK TOP

53300-KV6-610

Unavailable

MARK, WING

87122-KW3-770

$8.68

BOLT, SOCKET (8X25)

90100-KAE-000

$4.10

NUT, STEERING STEM

90304-KA3-710

$15.77

SCREW, TAPPING (3X16)

91059-KY2-711

$2.97

HOLDER B2, HANDLEBAR (UPPER)

95014-22200

$12.13

BOLT, FLANGE (8X35)

96300-08035-00

$1.95

BOLT, FLANGE (8X45)

90103-KF0-000

$3.81
