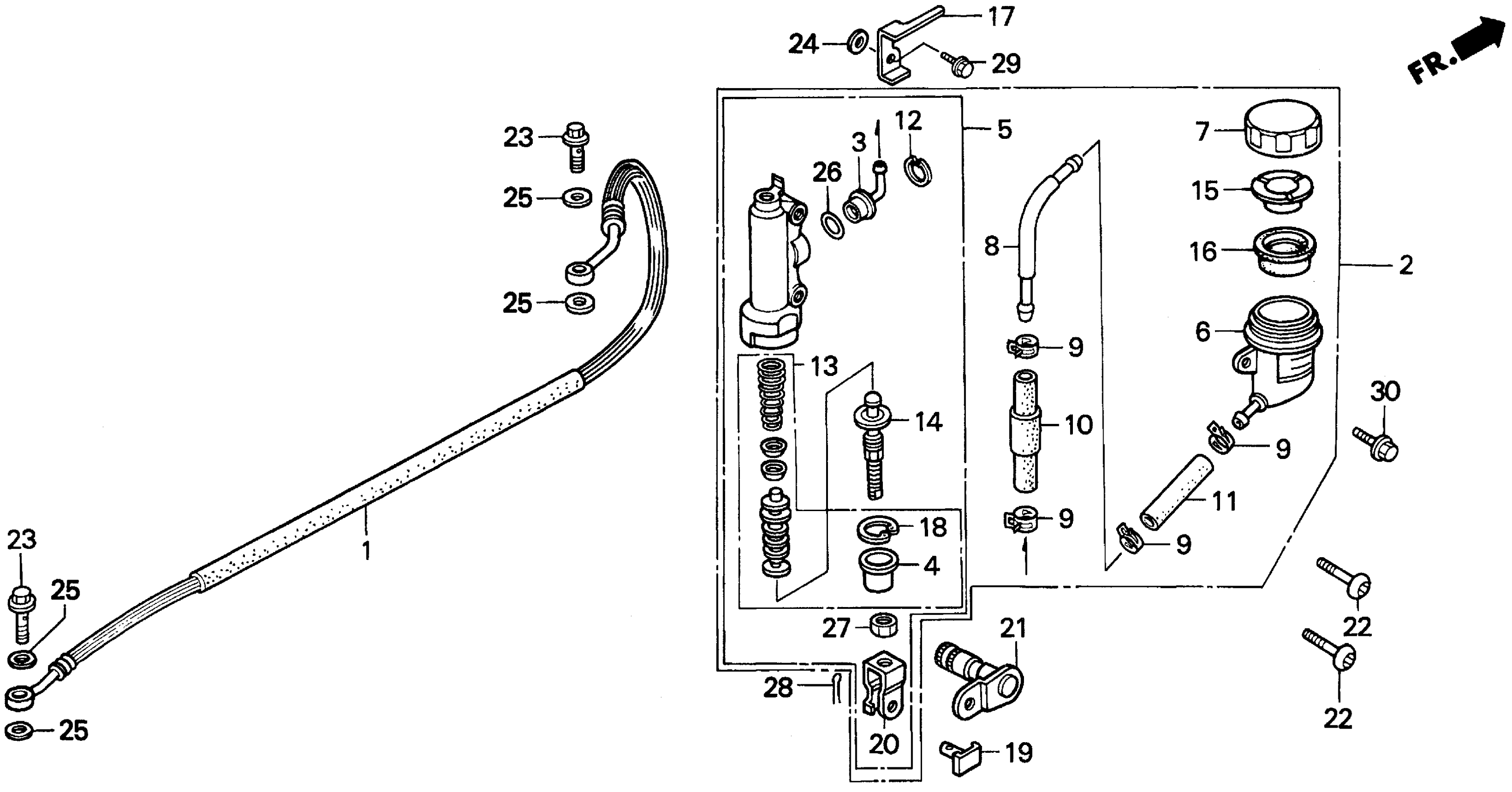

Honda XR250LAC (91) MOTORCYCLE, JPN, VIN# JH2MD221-MK000004 TO JH2MD221-MK000649 REAR BRAKE MASTER CYLINDER Diagram

HOSE, RR. BRAKE

43125-KV6-671

Unavailable

MASTER CYLINDER ASSY., RR. BRAKE

43500-KV6-671

Unavailable

CONNECTOR

43503-KS6-701

$10.26

BOOT

43504-MB2-006

$10.04

CUP, MASTER CYLINDER OIL | Use up to Frame SN MK000303 This part replaces 43511-KS6-701.

43511-KS6-702

$25.90

CUP, MASTER CYLINDER OIL

43511-KS6-702

$25.90

CAP, MASTER CYLINDER

43513-KS6-701

$14.57

PIPE, OIL

43513-KZ9-000

Unavailable

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$13.12

JOINT, HOSE (A)

43515-KZ9-006

Unavailable

JOINT, HOSE (B)

43516-KZ9-006

Unavailable

CIRCLIP, RR. MASTER CYLINDER

43517-KS6-701

$3.81

PISTON SET, MASTER CYLINDER (NISSIN) This part replaces 43520-MB2-305.

43520-MB2-315

$46.51

ROD, PUSH

43530-MM5-006

$27.69

PLATE, DIAPHRAGM

45518-GM9-711

$4.48

DIAPHRAGM

45520-GM9-711

$9.15

HOLDER, MASTER CYLINDER

45535-KZ9-000

Unavailable

CIRCLIP, MASTER CYLINDER

46182-500-013

$4.90

PIN D, JOINT This part replaces 46503-KW3-000.

95015-54000

$4.24

PIN D, JOINT

95015-54000

$4.24

JOINT, BRAKE ROD This part replaces 46504-KV6-701.

46504-KV6-702

$7.84

JOINT, BRAKE ROD

46504-KV6-702

$7.84

SHAFT, RR. BRAKE

46515-KV6-700

Unavailable

BOLT, RR. MASTER CYLINDER

90109-KZ9-000

$3.92

BOLT, OIL (10X22) This part replaces 90145-MS9-611.

90145-MS9-612

$7.54

BOLT, OIL (10X22)

90145-MS9-612

$7.54

WASHER, RR. BRAKE ARM

90525-001-000

$1.95

WASHER, OIL BOLT

90545-300-000

$3.99

O-RING (14.8X2.4)

91212-422-006

$2.56

NUT, HEX. (8MM)

94002-08000-0S

$1.49

PIN, COTTER (2.0X12)

94201-20120

$1.49

BOLT, FLANGE (6X10)

96300-06010-07

Unavailable

BOLT, FLANGE (6X10) This part replaces 96500-06010-07.

96300-06010-07

Unavailable

BOLT, FLANGE (6X12) This part replaces 96500-06012-00.

96300-06012-00

$1.49

BOLT, FLANGE (6X12)

96300-06012-00

$1.49
