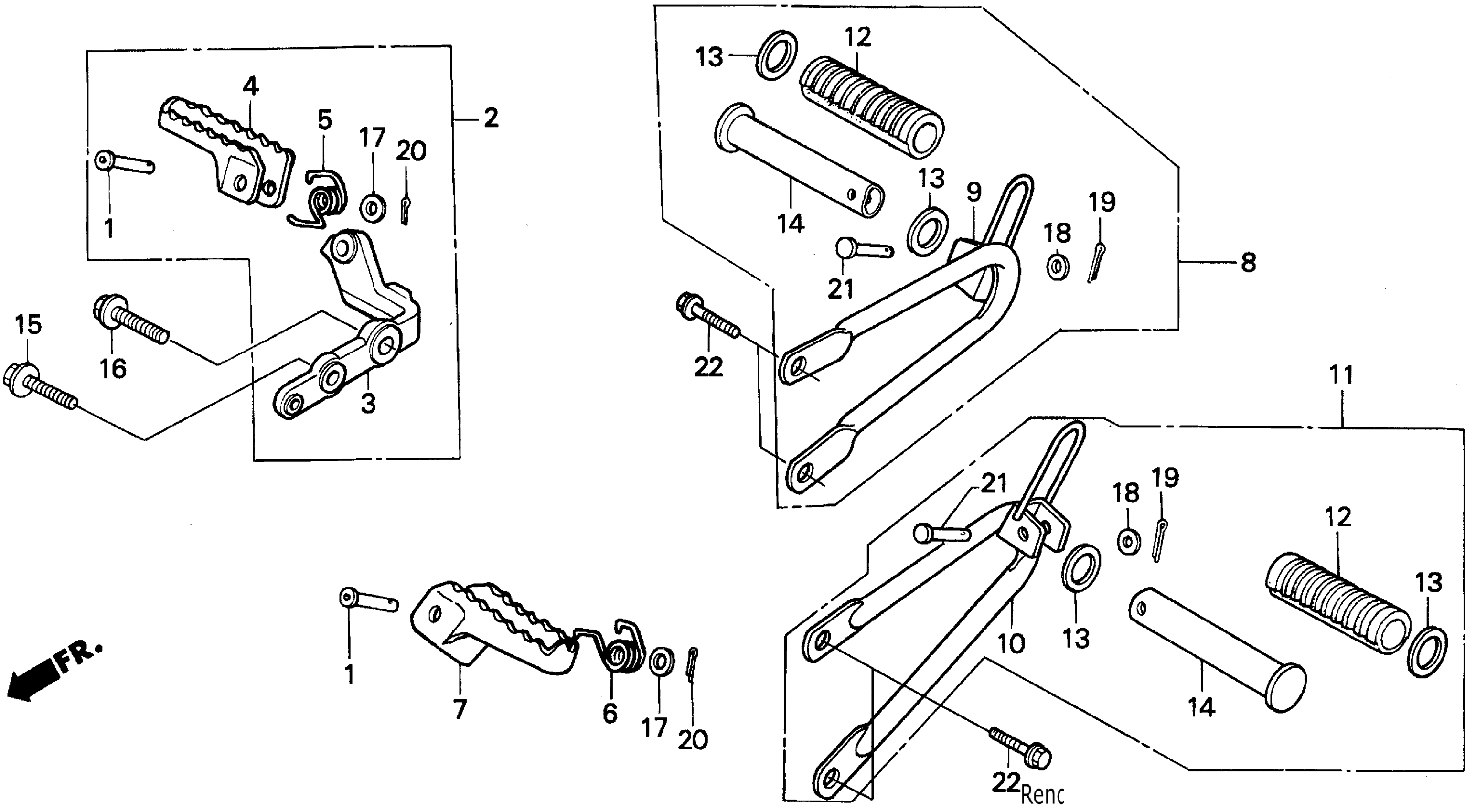

Honda XR250LA (96) MOTORCYCLE, JPN, VIN# JH2MD220-TM500001 STEP Diagram

#

Description
Price

1

PIN, STEP BAR JOINT

50603-KV6-000

Unavailable

3

ARM, R. STEP

50615-KT1-671

Unavailable

4

STEP, R.

50616-KZ1-600

Unavailable

5

SPRING, R. STEP RETURN

50617-KT1-670

Unavailable

6

SPRING, L. STEP RETURN

50618-KT1-670

Unavailable

7

STEP, L.

50626-KZ1-600

Unavailable

9

BRACKET, R. PILLION STEP

50701-KBR-000

$111.13

10

BRACKET, L. PILLION STEP

50702-KBR-000

Unavailable

12

RUBBER, PILLION STEP This part replaces 50710-KB7-000.

50710-MK5-000

$6.58

12

RUBBER, PILLION STEP

50710-MK5-000

$6.58

13

PLATE, PILLION FOOTPEG SIDE

50713-KC1-700

$3.04

14

BAR, PILLION STEP

50715-KB7-000

$27.44

15

BOLT, FLANGE (10X40)

90211-KT1-670

Unavailable

16

BOLT, FLANGE (12X40)

90212-KT1-670

Unavailable

17

WASHER (10.2MM)

90401-430-000

$1.64

18

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

18

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

18

WASHER, PLAIN (6MM)

94101-06800

$1.49

19

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

19

PIN, COTTER (1.6X25)

94201-16250

$1.49

20

PIN, COTTER (2.0X15)

94201-20150

$1.49

21

PIN A, PILLION STEP

95015-81000

$2.21

22

BOLT, FLANGE (8X16)

96300-08016-07

$1.49
