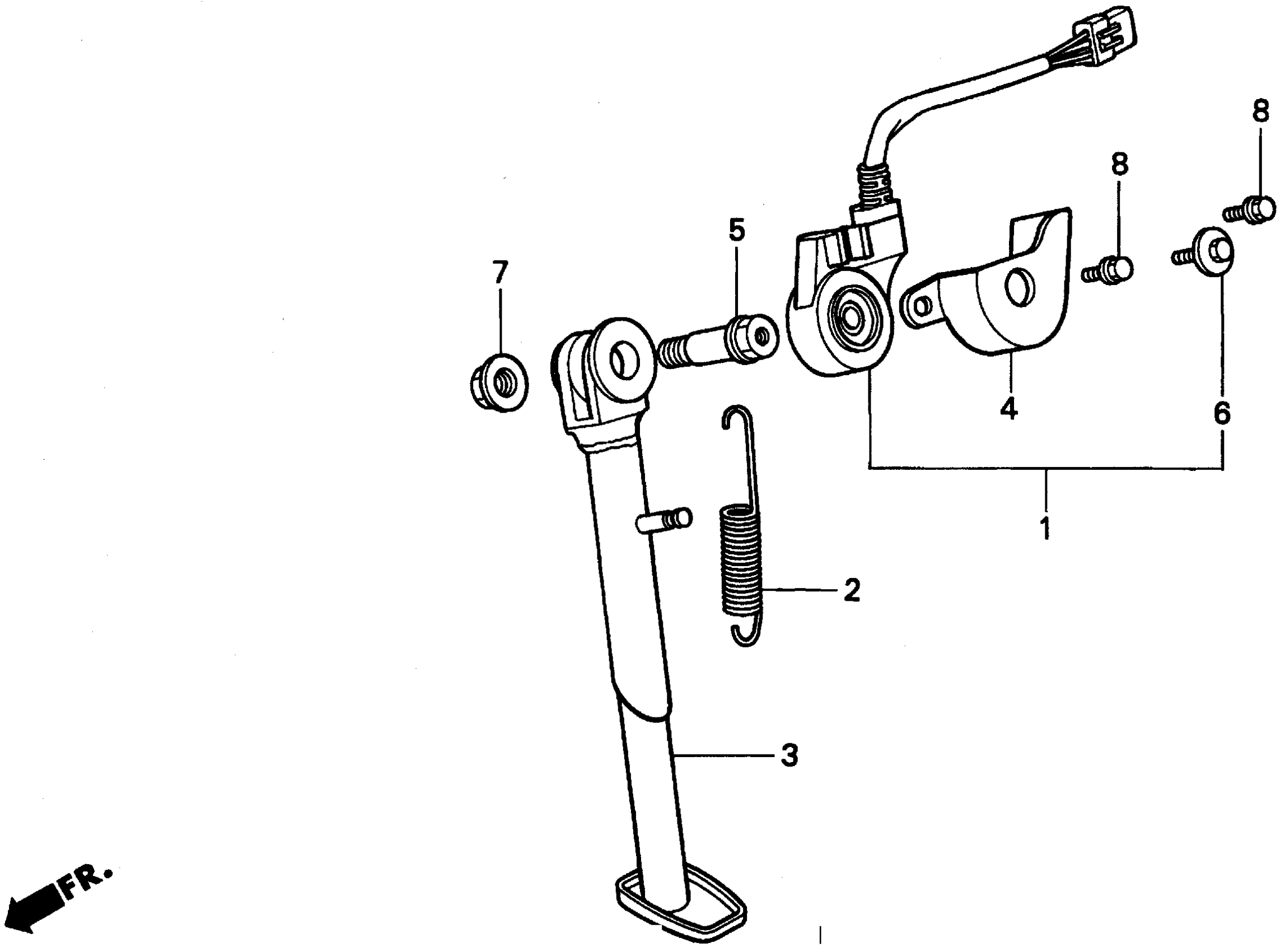

Honda XR250LA (96) MOTORCYCLE, JPN, VIN# JH2MD220-TM500001 STAND Diagram

#

Description
Price

1

SWITCH SET, SIDE STAND

35700-KV6-305

Unavailable

2

SPRING, MAIN STAND

50522-KM3-000

$9.96

3

BAR, SIDE STAND

50530-KV6-670

Unavailable

4

GUARD, SIDE STAND SWITCH

50547-KAE-000

$11.71

5

BOLT, SIDE STAND PIVOT

90108-MK6-670

$7.25

6

BOLT, SPECIAL (6X16)

90147-MCE-950

$0.51

6

BOLT, SPECIAL (6X16) This part replaces 90147-MK6-671.

90147-MCE-950

$0.51

7

NUT, SIDE STAND

90203-MF9-710

$3.41

8

BOLT, FLANGE (6X10)

96001-06010-07

$1.48
