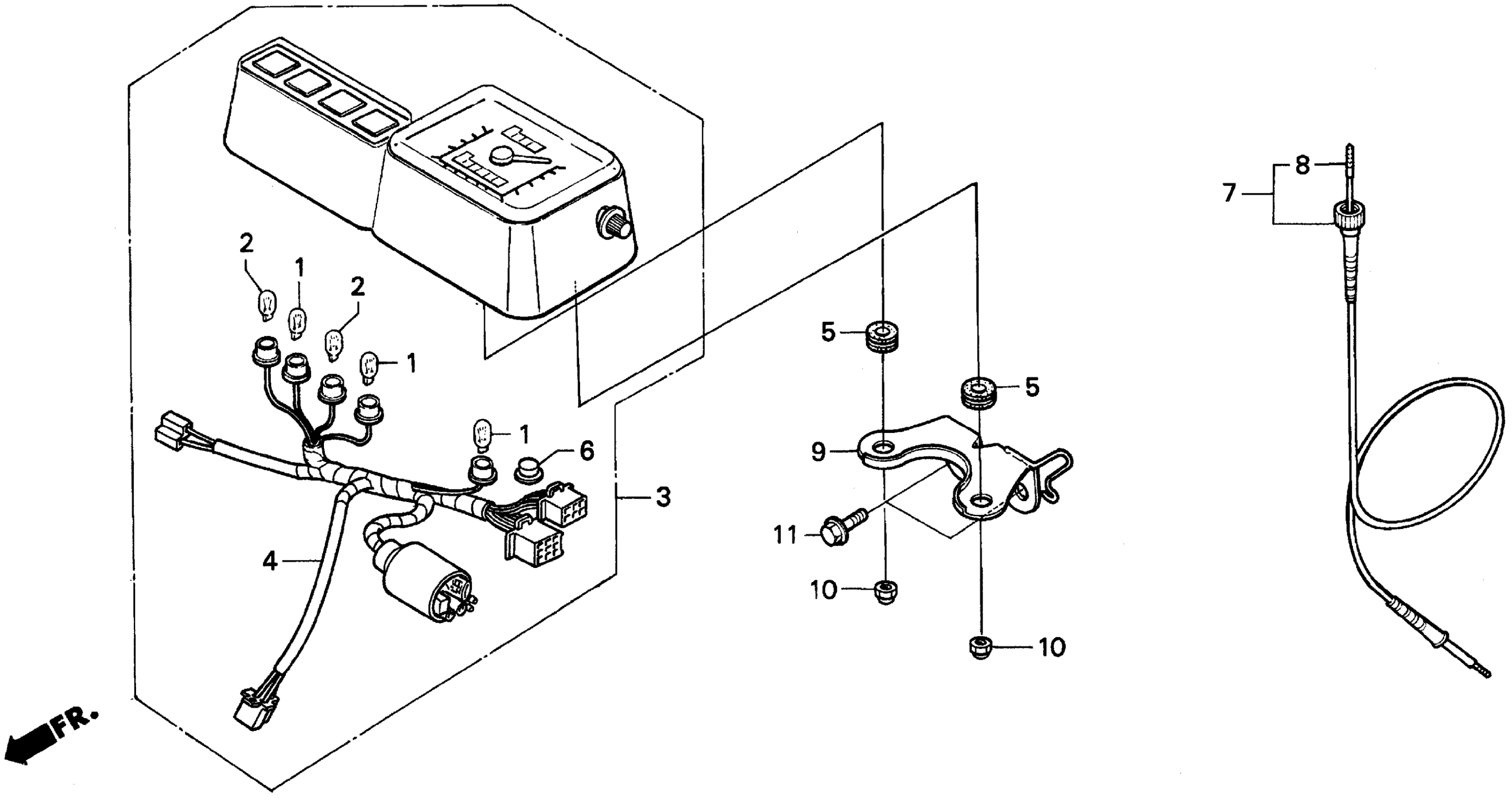

Honda XR250LA (96) MOTORCYCLE, JPN, VIN# JH2MD220-TM500001 SPEEDOMETER Diagram

#

Description
Price

1

BULB (14V 3.4W) (NS) This part replaces 34908-GA7-701.

37237-SA5-003

$3.99

1

BULB (14V 3.4W) (NS) This part replaces 37102-567-009.

37237-SA5-003

$3.99

1

BULB (12V3.4W2CP) (158) (NS)

37237-SA5-003

$3.99

1

BULB (14V 3.4W) (NS) This part replaces 37237-SA5-004.

37237-SA5-003

$3.99

2

BULB, WEDGE BASE (12V1.7W) (NIPPON SEIKI)

34908-MB9-871

$2.69

3

SPEEDOMETER ASSY. (MPH/KPH)

37200-KV6-671

Unavailable

4

SOCKET

37223-KV6-671

Unavailable

5

RUBBER, SPEEDOMETER SETTING

37243-MG2-000

$4.02

6

CAP, SPEED ALARM WIRE

37618-MB2-008

$2.06

7

CABLE ASSY., SPEEDOMETER

44830-MG3-010

$29.27

8

CABLE (INNER)

44831-GBJ-000

$6.72

8

CABLE (INNER) This part replaces 44831-MG3-000.

44831-GBJ-000

$6.72

8

CABLE (INNER) This part replaces 44831-MK5-000.

44831-GBJ-000

$6.72

9

STAY, SPEEDOMETER

61315-KR5-000

$22.21

10

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$2.07

10

NUT, CAP (6MM)

94021-06020

$2.07

10

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$2.07

10

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$2.07

11

BOLT, FLANGE (8X16)

95701-08016-00

$1.66
