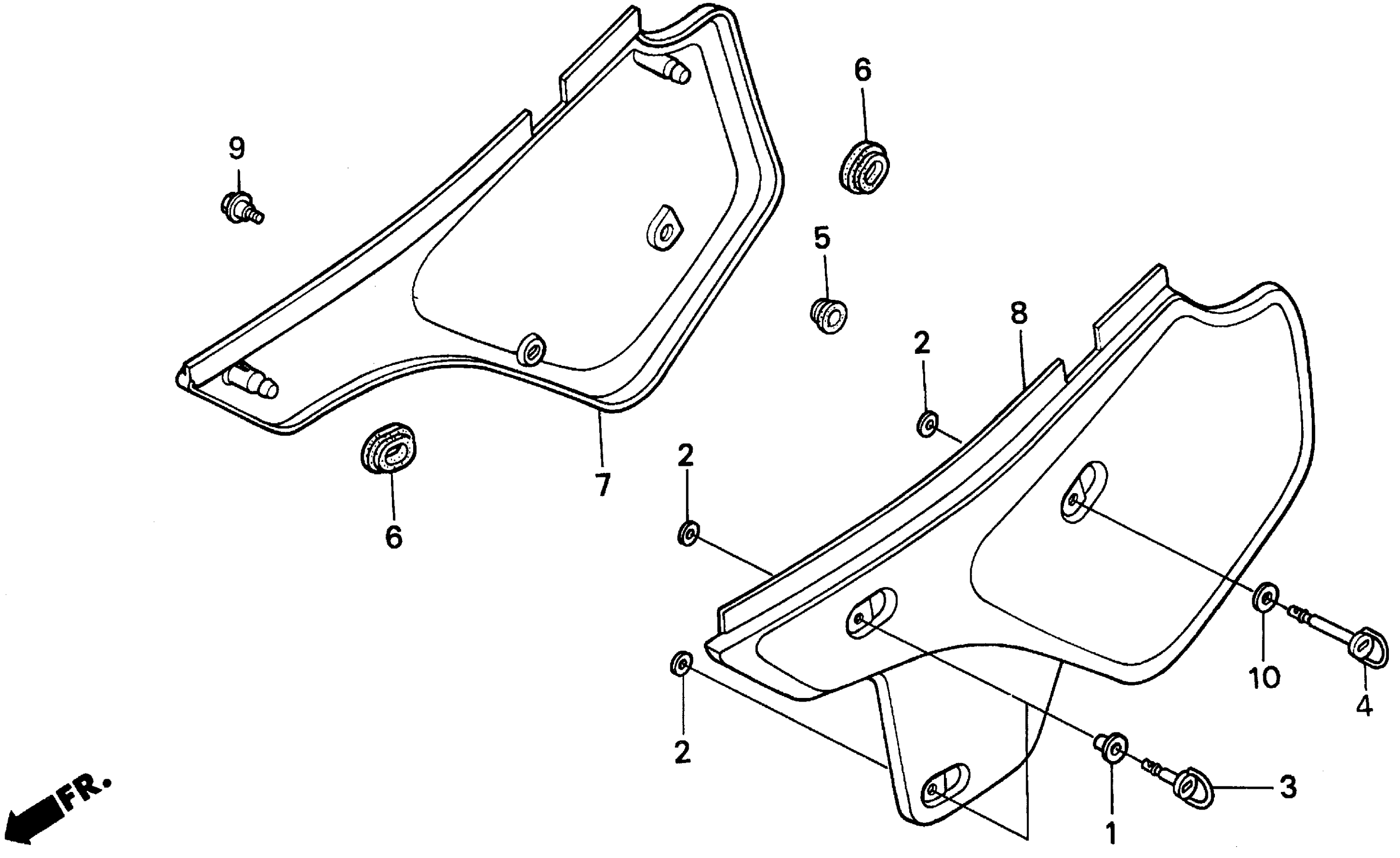

Honda XR250LA (96) MOTORCYCLE, JPN, VIN# JH2MD220-TM500001 SIDE COVER Diagram

COLLAR, AIR CLEANER COVER SETTING

17223-KN5-670

$2.97

WASHER, AIR CLEANER COVER SETTING

17224-KN5-670

$1.49

STUD (6X21) This part replaces 17225-KN5-670.

17225-KN5-671

$6.99

STUD (6X55)

17226-KV6-670

Unavailable

RUBBER, SIDE COVER (PD)

83512-KA4-700

$4.57

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

COVER SET, R. SIDE *NH138* (SHASTA WHITE)

83601-KV6-860ZB

Unavailable

COVER, AIR CLEANER HOUSING SET *NH138* (WL) (SHASTA WHITE)

83603-KV6-860ZB

Unavailable

BOLT, FLANGE (6MM)

90111-KM1-000

$4.24

WASHER, PLAIN (7MM)

90501-KV6-670

$1.87
