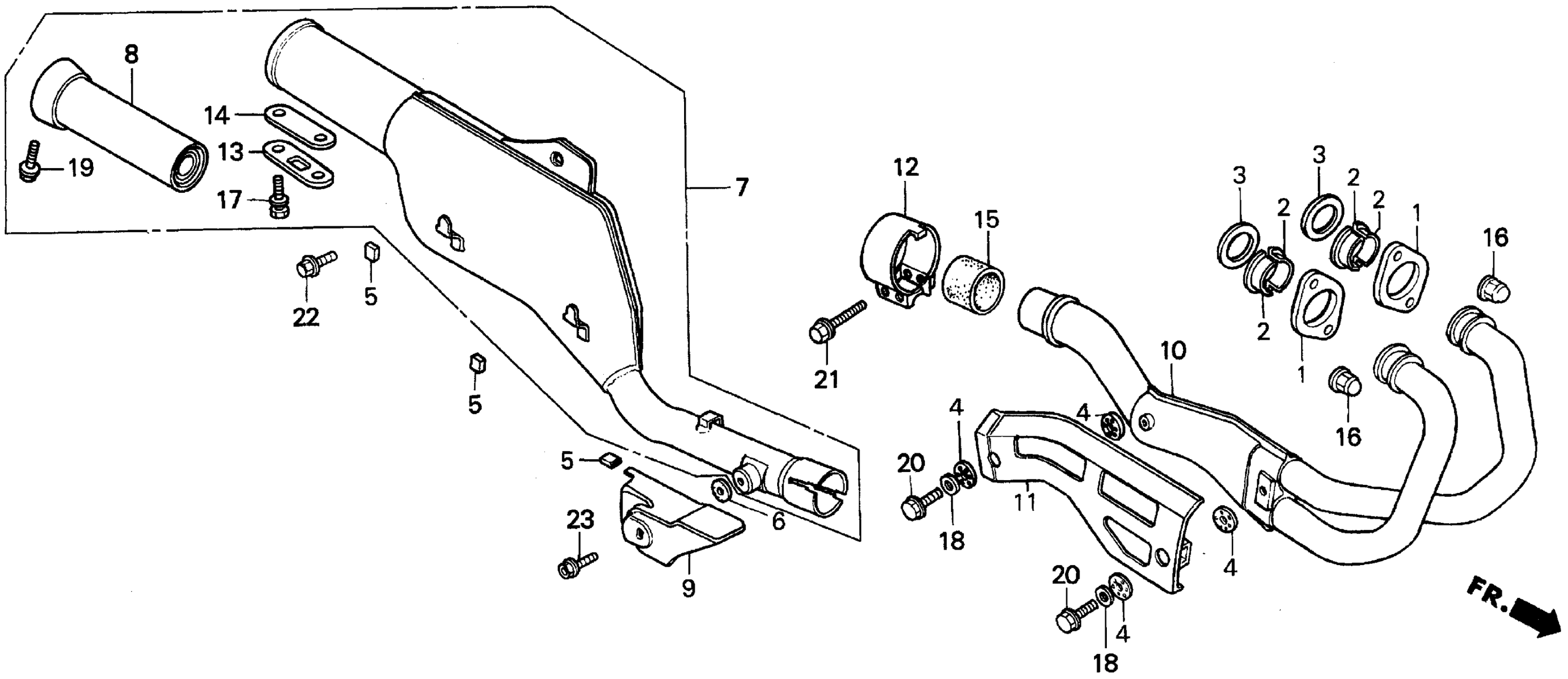

Honda XR250LA (96) MOTORCYCLE, JPN, VIN# JH2MD220-TM500001 MUFFLER Diagram

#

Description
Price

1

JOINT, EX. PIPE

18231-KK0-000

Unavailable

2

COLLAR, EX. PIPE JOINT

18233-437-000

$8.41

3

GASKET, EX. PIPE

18291-KZ1-670

$5.07

4

GASKET, PROTECTOR

18292-KBR-000

$3.21

5

RUBBER, PROTECTOR GASKET

18293-147-000

$3.75

5

RUBBER, PROTECTOR GASKET This part replaces 18293-GE8-000.

18293-147-000

$3.75

6

GASKET B, MUFFLER This part replaces 18295-KZ1-670.

18295-KV6-920

Unavailable

7

MUFFLER

18310-KV6-690

Unavailable

8

PIPE, TAIL

18311-MA0-010

$60.25

9

PLATE, HEAT GUARD

18315-KZ9-000

Unavailable

10

PIPE, EX.

18320-KV6-000

Unavailable

11

PROTECTOR, EX. PIPE

18325-KZ9-000

Unavailable

12

BAND, MUFFLER

18371-KG1-000

Unavailable

13

LID, MUFFLER

18373-429-010

$8.22

14

GASKET, MUFFLER LID

18374-MN1-880

$3.90

15

GASKET, EX.

18392-ML0-000

Unavailable

16

NUT, CAP (6MM)

90304-438-000

$6.64

17

BOLT-WASHER (6X12)

93401-06012-07

Unavailable

18

WASHER, PLAIN (6MM)

94101-06700

$0.86

19

BOLT, FLANGE (6X8)

96001-06008-07

$0.86

20

BOLT, FLANGE (6X12)

96001-06012-07

Unavailable

21

BOLT, FLANGE (8X40)

96300-08040-07

$1.84

22

BOLT, FLANGE (10X25) This part replaces 96300-10020-00.

96300-10025-00

$2.17

22

BOLT, FLANGE (10X25)

96300-10025-00

$2.17

23

BOLT, FLANGE (8X22)

96300-08022-00

$1.97
