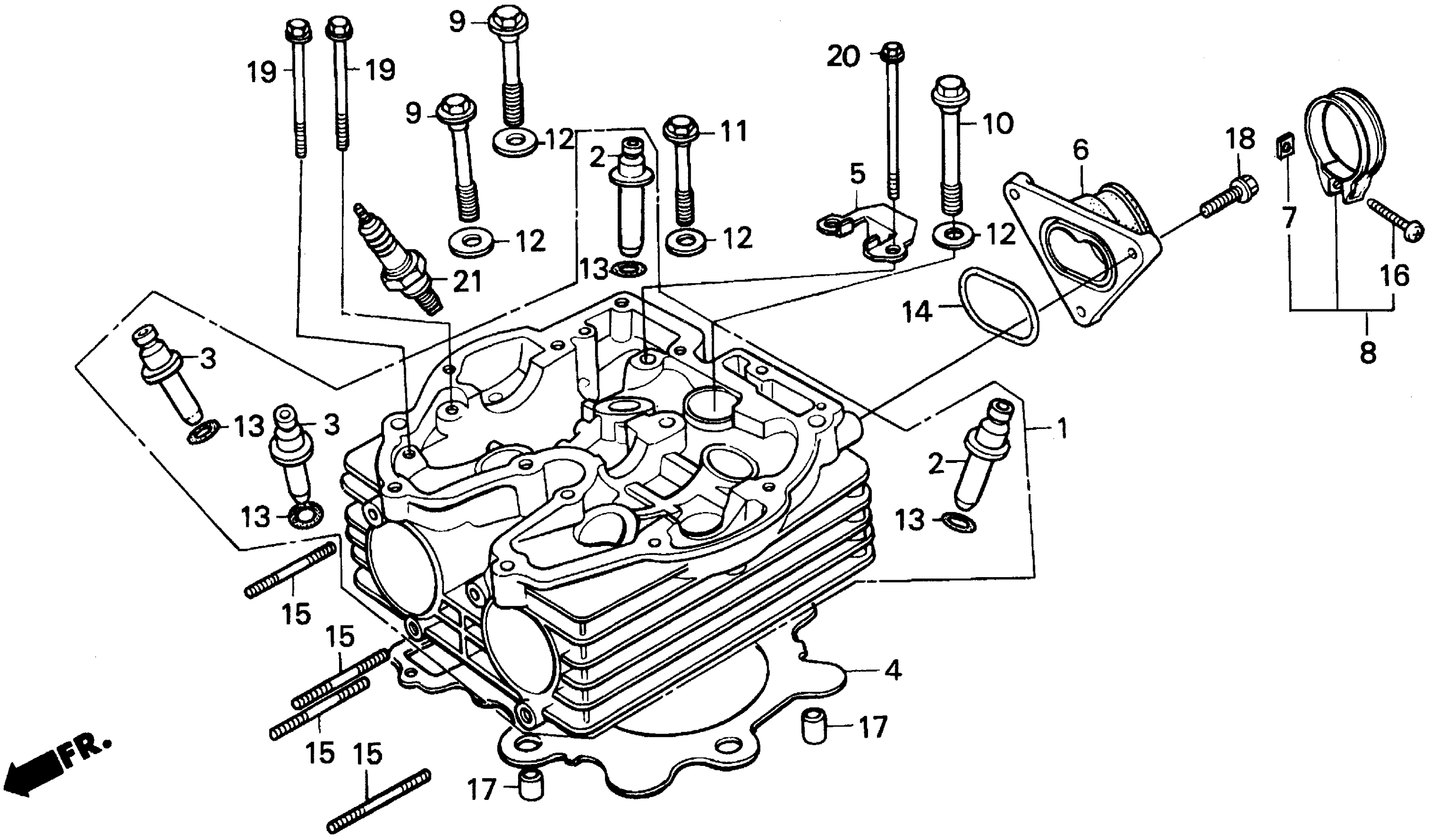

Honda XR250LA (96) MOTORCYCLE, JPN, VIN# JH2MD220-TM500001 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD

12200-KT1-780

Unavailable

2

GUIDE, VALVE

12231-KK0-305

Unavailable

3

GUIDE, EX. VALVE

12241-KK0-305

Unavailable

4

GASKET, CYLINDER HEAD

12251-KV6-003

$33.58

5

PLATE, TENSIONER SETTING

14515-KK0-010

Unavailable

6

INSULATOR, CARBURETOR

16211-KT1-013

$49.31

7

NUT, SQUARE (5MM)

16222-MV4-300

$2.15

8

BAND, INSULATOR

16223-KS5-000

$14.20

9

BOLT, FLANGE (10X81)

90081-KK0-000

$12.30

10

BOLT, FLANGE (10X100)

90081-KR0-000

$13.72

11

BOLT, FLANGE (10X72)

90082-KK0-000

Unavailable

12

WASHER (10MM)

90410-KR0-000

$2.67

13

O-RING (10X1.6)

91301-200-000

$3.01

14

O-RING, CARBURETOR INSULATOR

91302-KR0-003

$11.69

15

BOLT 2, STUD (6X22)

92900-06022-0E

$1.49

16

BOLT, RECESSED (5X28)

90023-MM5-000

$2.92

17

PIN A, DOWEL (12X20)

94301-12200

$2.29

18

BOLT, FLANGE (6X22)

95701-06022-07

$1.49

19

BOLT, FLANGE (6X80)

96001-06080-00

$2.21

20

BOLT, FLANGE (6X90)

96001-06090-00

$1.95

21

SPARK PLUG (DPR7Z) (NGK) | (Optional).

98061-57616

$3.54

21

SPARK PLUG (X22GPR-U) (DENSO) | (Optional).

98061-57626

Unavailable

21

SPARK PLUG (DPR8Z) (NGK)

98061-58616

$3.21

21

SPARK PLUG (X24GPR-U) (DENSO)

98061-58626

$3.39

21

SPARK PLUG (DPR9Z) (NGK) | (Optional).

98061-59616

$3.21

21

SPARK PLUG (X27GPR-U) (DENSO) | (Optional).

98061-59626

$3.39
