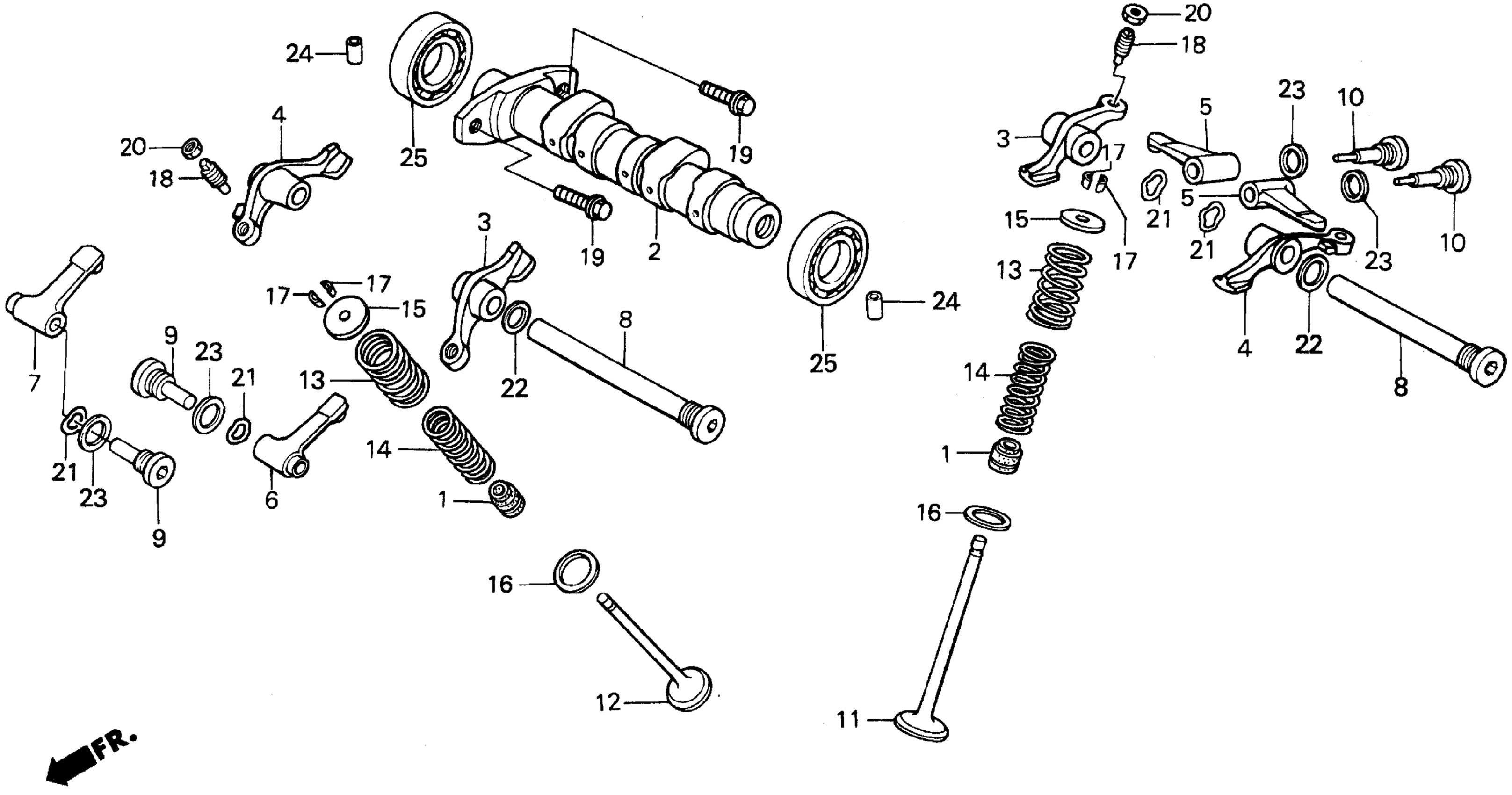

Honda XR250LA (96) MOTORCYCLE, JPN, VIN# JH2MD220-TM500001 CAMSHAFT Diagram

#

Description
Price

1

SEAL, VALVE STEM

12209-KL4-005

$7.81

2

CAMSHAFT

14100-KR6-000

Unavailable

3

ARM A, ROCKER

14431-KR0-000

$64.83

4

ARM B, ROCKER

14441-KR0-000

$64.83

5

ARM, VALVE SUB-ROCKER IN.

14445-KK0-000

$37.29

6

ARM, EX. VALVE SUB-ROCKER

14446-KK0-000

$29.59

7

ARM B, SUB-ROCKER EX.

14447-KK0-000

$29.59

8

BOLT, ROCKER ARM SHAFT

14451-KK0-010

Unavailable

9

SHAFT A, SUB-ROCKER ARM

14455-KK0-000

Unavailable

10

SHAFT B, SUB-ROCKER ARM

14456-KK0-010

Unavailable

11

VALVE, IN.

14711-KK1-000

$46.81

12

VALVE, EX.

14721-KR6-000

$71.00

13

SPRING, VALVE (OUTER)

14751-KK0-003

$13.03

14

SPRING, VALVE (OUTER)

14761-KK0-003

$9.89

15

RETAINER, VALVE SPRING

14771-459-000

Unavailable

16

SEAT, VALVE SPRING (OUTER)

14775-KK0-000

Unavailable

17

COTTER, VALVE

14781-MB4-000

$3.19

18

SCREW, TAPPET ADJUSTING

90012-KR0-000

$9.07

19

BOLT, FLANGE KNOCK (7X12)

90081-426-000

Unavailable

20

NUT, TAPPET ADJ.

90206-590-000

$4.83

21

WASHER, SUB-ROCKER ARM SIDE WAVE

90406-KF0-003

$2.92

22

WASHER, SEALING (14MM)

90544-KF0-000

$3.26

23

WASHER (12MM)

90545-KF0-000

$3.26

24

PIN, DOWEL (8X17.5)

90701-KK0-000

$5.81

25

BEARING, BALL (6003U)

91001-KS5-000

$34.68
