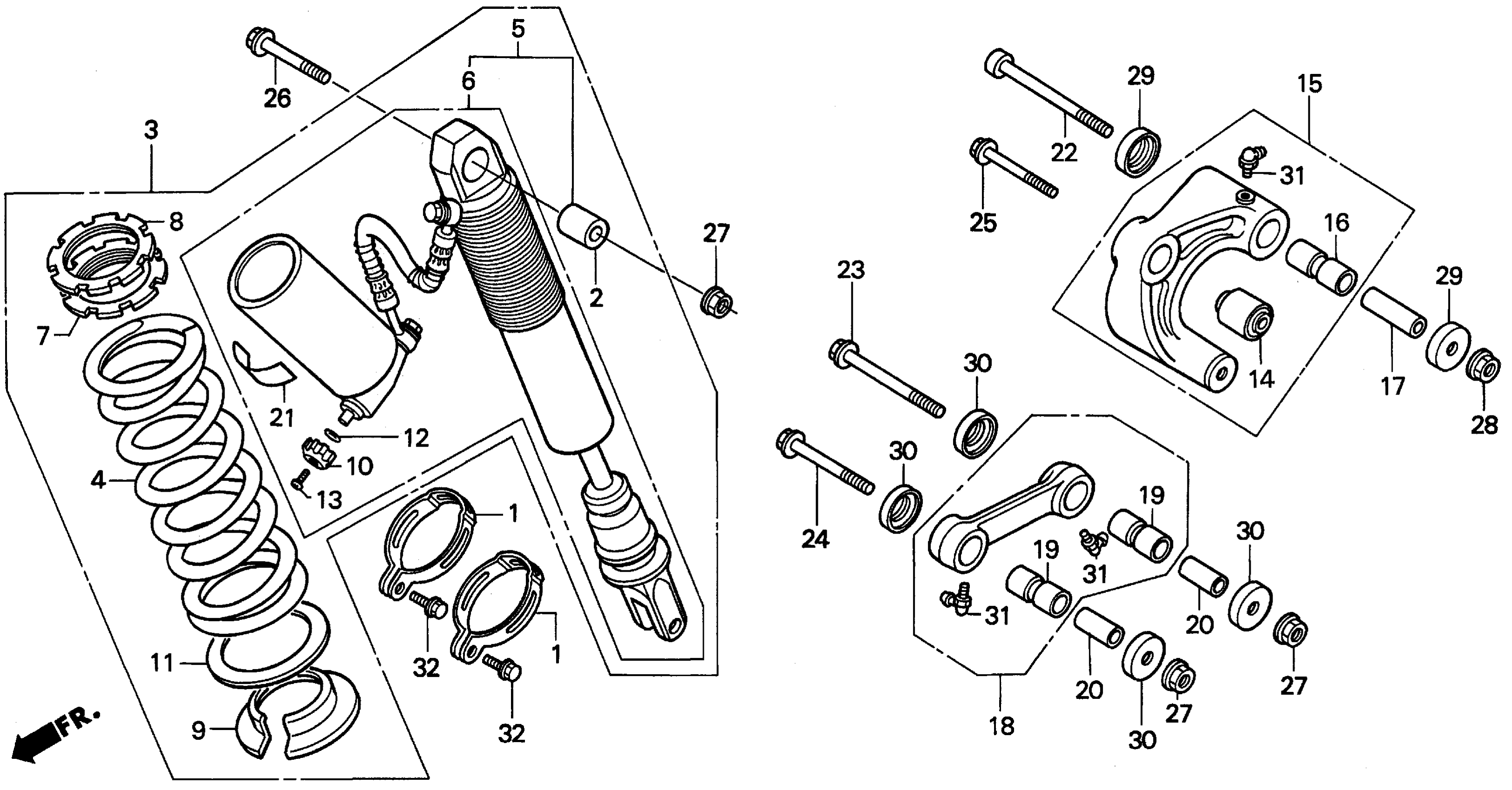

Honda XR250LA (94) MOTORCYCLE, JPN, VIN# JH2MD220-RM300001 TO JH2MD220-RM301835 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

BAND, SUB-TANK

50252-KT1-670

Unavailable

2

COLLAR, FR. SHOCK ABSORBER (LOWER)

51486-HC0-004

Unavailable

3

SHOCK ABSORBER ASSY., RR.

52400-KV6-611

Unavailable

4

SPRING, RR. SHOCK ABSORBER (KAYABA)

52401-KV6-671

Unavailable

5

DAMPER SET, RR.

52409-KV6-306

Unavailable

7

SEAT, SPRING (UPPER) (KAYABA)

52422-KS6-004

Unavailable

8

NUT, ADJUSTER (KAYABA)

52423-KS6-004

Unavailable

9

SEAT, SPRING (LOWER) (KAYABA)

52424-KS6-701

Unavailable

10

DIAL, SUB-TANK

52433-KK0-004

Unavailable

11

WASHER, SPRING SEAT (KAYABA)

52445-KA3-831

Unavailable

12

O-RING (2.4X10.8)

52447-KA3-731

Unavailable

13

SCREW, PAN (3X8)

52448-KS6-004

Unavailable

14

BUSH, SHOCK ABSORBER (LOWER)

52451-MA0-000

$15.12

15

ARM ASSY., SHOCK ABSORBER

52460-KV6-000

Unavailable

16

BUSH, CUSHION ARM

52462-KF0-003

Unavailable

17

COLLAR, CUSHION ARM PIVOT

52463-KF0-000

Unavailable

18

ROD ASSY., RUBBER CONNECTING

52470-KR6-000

Unavailable

19

BUSH, RUBBER CONNECTING ROD

52472-MA0-013

$29.48

20

COLLAR, CONNECTING ROD PIVOT This part replaces 52473-MA0-010.

52473-MA0-020

$16.68

20

COLLAR, CONNECTING ROD PIVOT

52473-MA0-020

$16.68

21

LABEL, RR. SHOCK ABSORBER

87516-KV6-610

$4.93

22

BOLT, SOCKET (12X97)

90128-KR6-000

Unavailable

23

BOLT, FLANGE (10X77)

90129-KF0-000

$14.86

24

BOLT, FLANGE (10X69) This part replaces 90151-KF0-000.

90151-KV6-910

Unavailable

25

BOLT, FLANGE (10X48)

90153-KA3-730

Unavailable

26

BOLT, SPECIAL FLANGE (10X58)

90153-965-000

$6.87

26

BOLT, SPECIAL FLANGE (10X58) This part replaces 90153-965-010.

90153-965-000

$6.87

27

NUT, U (10MM)

90304-GE8-003

$3.67

28

NUT, FLANGE (12MM)

90306-KF0-003

$3.85

29

SEAL, CUSHION ARM PIVOT (ARAI) This part replaces 91261-KA3-712.

91262-KR8-750

Unavailable

30

SEAL, RUBBER CONNECTING ROD PIVOT (ARAI)

91262-KA3-712

$11.62

31

FITTING, GREASE (B.76S)

96201-80000

$2.56

32

BOLT, FLANGE (6X25)

96300-06025-00

$1.49

32

BOLT, FLANGE (6X25) This part replaces 96400-06025-00.

96300-06025-00

$1.49

32

BOLT, FLANGE (6X25) This part replaces 96500-06025-00.

96300-06025-00

$1.49
