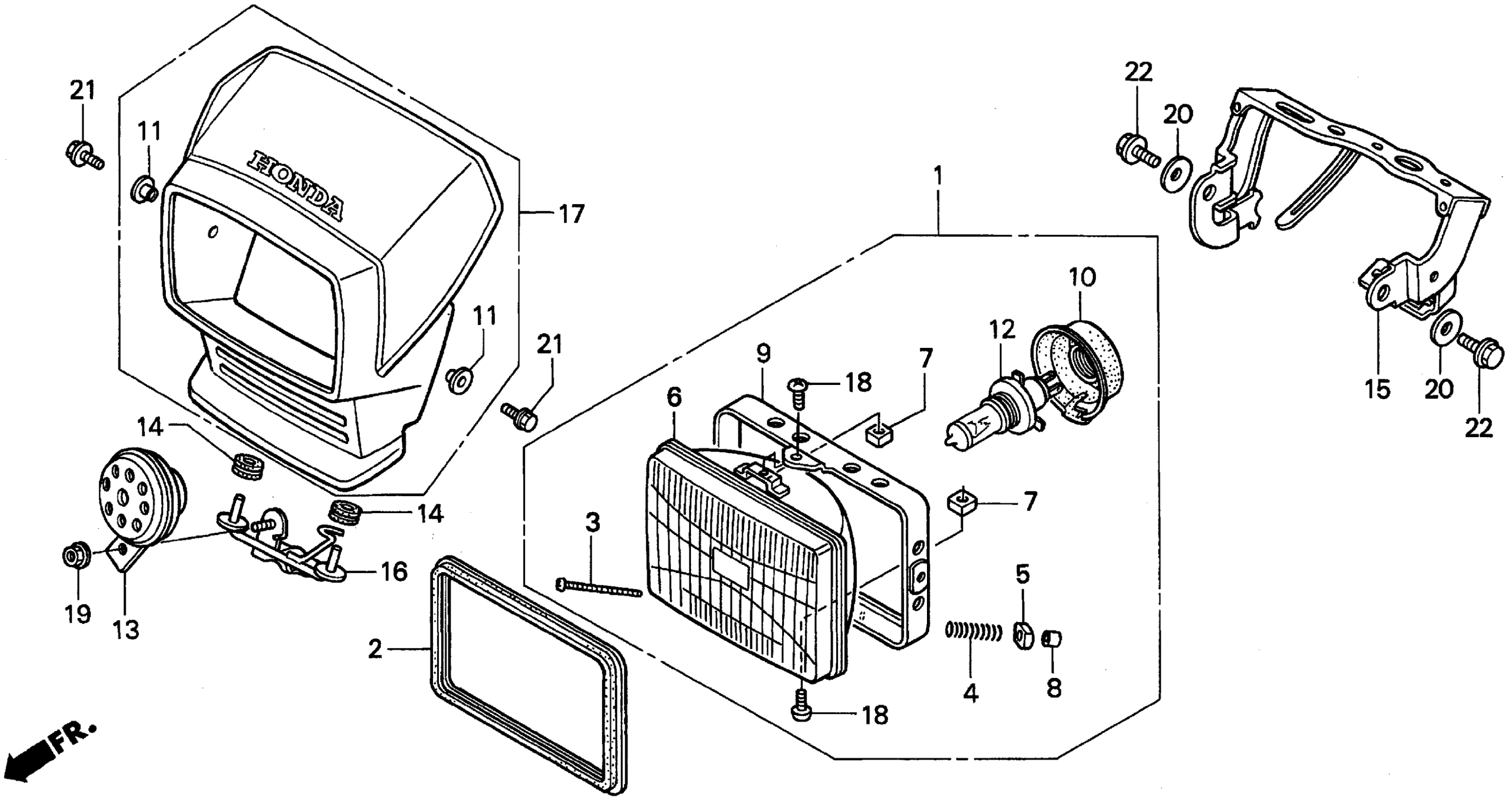

Honda XR250LA (94) MOTORCYCLE, JPN, VIN# JH2MD220-RM300001 TO JH2MD220-RM301835 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT ASSY. (12V 60/55W) (COO) This part replaces 33100-KV6-671.

33100-MGW-305

$177.36

1

HEADLIGHT ASSY. (12V 60/55W) (COO) This part replaces 33100-KV6-672.

33100-MGW-305

$177.36

2

GASKET, HEADLIGHT

33102-MG2-000

$29.33

3

SCREW, BEAM ADJ.

33103-MG2-671

$5.21

4

SPRING, HEADLIGHT BEAM ADJUSTING

33107-MG2-671

$2.92

5

NUT, BEAM ADJUSTING (STANLEY)

33117-415-003

$2.23

6

HEADLIGHT UNIT (COO) This part replaces 33120-KV6-671.

33120-MGW-305

$70.28

6

HEADLIGHT UNIT (COO) This part replaces 33120-KV6-672.

33120-MGW-305

$70.28

7

NUT, UNIT HOLDER

33128-471-003

$1.62

8

COVER, SCREW

33136-426-830

$1.89

9

RING, SETTING

33153-KV6-671

$40.05

10

COVER, RUBBER

33180-471-902

$11.93

11

COLLAR A, TAILLIGHT

33712-GC2-000

$3.04

12

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601.

34901-MC7-602

$37.18

12

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601AH.

34901-MC7-602

$37.18

13

HORN

38110-KF0-651

Unavailable

14

GROMMET, IGNITION COVER

53133-KB4-000

$2.26

15

BRACKET, HEADLIGHT

61315-KV6-670

Unavailable

16

STAY, FR. VISOR (LOWER)

61318-KV6-670

$31.26

17

VISOR SET, FR. *NH138* (WL) (SHASTA WHITE)

87125-MY6-700ZA

Unavailable

18

SCREW, PAN (5X10)

93500-05010-0G

$1.49

19

NUT, FLANGE (8MM)

94050-08070

$1.49

20

WASHER, PLAIN (8MM)

94103-08700

$1.49

21

BOLT, FLANGE (6X14)

96300-06014-00

$1.49

22

BOLT, FLANGE (8X12)

96300-08012-00

$2.84
