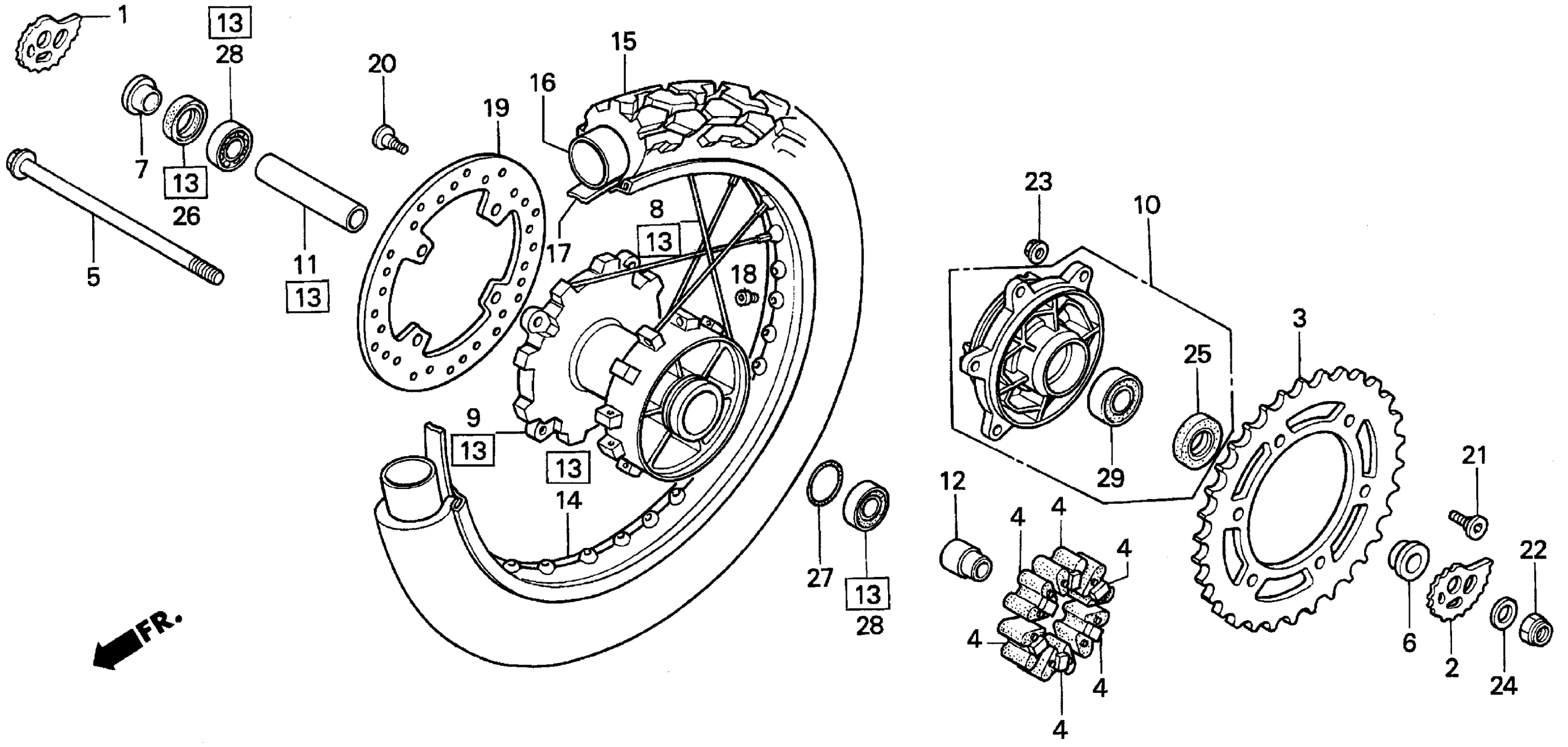

Honda XR250LA (92) MOTORCYCLE, JPN, VIN# JH2MD220-NM100005 TO JH2MD220-NM101850 REAR WHEEL Diagram

#

Description
Price

1

ADJUSTER, R. CHAIN

40544-MN1-670

$12.19

2

ADJUSTER, L. CHAIN

40545-MN1-670

$12.91

3

SPROCKET, FINAL DRIVEN (40T) This part replaces 41201-KR6-000.

41201-KR6-505

Unavailable

3

SPROCKET, FINAL DRIVEN (40T)

41201-KR6-505

Unavailable

4

RUBBER, RR. WHEEL DAMPER

41241-KB7-000

$11.02

5

AXLE, RR. WHEEL

42301-KZ9-000

Unavailable

6

COLLAR, L. RR. WHEEL

42311-KZ9-000

Unavailable

7

COLLAR, RR. WHEEL (B)

42312-KW3-000

$21.34

8

SPOKE SET A, RR. (A10X223) This part replaces 426A0-KZ1-670.

42610-KZ1-405

Unavailable

8

SPOKE SET A, RR. (A10X223) This part replaces 426A0-KZ9-003.

42610-KZ1-405

Unavailable

8

SPOKE SET A, RR. (A10X223)

42610-KZ1-405

Unavailable

9

HUB, RR. WHEEL

42601-KZ9-020

Unavailable

10

FLANGE, FINAL DRIVEN

42610-KZ9-000

$232.27

11

COLLAR, RR. AXLE DISTANCE

42620-KZ9-000

Unavailable

12

COLLAR B, RR. AXLE DISTANCE This part replaces 42625-MC4-000.

42625-MAN-620

$19.64

14

RIM, RR. WHEEL

42701-KZ9-003

Unavailable

15

TIRE, RR. (4.60-18 63P) (BS) This part replaces 42711-KV6-009.

42711-KCZ-003

Unavailable

15

TIRE, RR. (4.60-18 63P) (BS)

42711-KCZ-003

Unavailable

15

TIRE, RR. (4.60-18) (4PR/63P K360) (DUNLOP) (NOT AVAILABLE)

42711-KV6-004

Unavailable

16

TUBE, TIRE This part replaces 42712-KS7-641.

42712-KT1-673

$37.60

16

TUBE, TIRE This part replaces 42712-KT1-671.

42712-KT1-673

$37.60

16

TUBE, TIRE This part replaces 42712-KV6-009.

42712-KT1-673

$37.60

16

TUBE, TIRE This part replaces 42712-300-004.

42712-KT1-673

$37.60

16

TUBE, TIRE This part replaces 42712-400-003.

42712-KT1-673

$37.60

17

FLAP, TIRE (2.15-18) (BS) (NOT AVAILABLE) This part replaces 42713-KV6-009.

42713-300-003

$5.69

17

FLAP, TIRE (2.15-18) (DUNLOP)

42713-300-004

$6.14

18

CAP, RIM HOLE

42717-329-000

$4.21

19

DISK, RR. BRAKE

43351-KZ1-770

$174.82

20

BOLT, DISK (8X22)

90105-MK5-010

$4.94

21

BOLT, SPROCKET FIXING

90128-KL4-000

$9.21

22

NUT, AXLE (16MM)

90305-KE8-003

$8.64

23

NUT, FLANGE (8MM)

90309-GE2-000

$3.74

23

NUT, FLANGE (8MM) This part replaces 90309-KT1-771.

90309-GE2-000

$3.74

23

NUT, FLANGE (8MM) This part replaces 90309-KZ9-003.

90309-GE2-000

$3.74

24

WASHER, PLAIN (16MM)

90559-469-000

$5.35

25

OIL SEAL (28X47.2X7) (ARAI) This part replaces 91252-MC4-005.

91252-MC4-013

$6.98

25

OIL SEAL (28X47.2X7) (ARAI) This part replaces 91252-MC4-003.

91252-MC4-013

$6.98

25

OIL SEAL (28X47.2X7) (ARAI)

91252-MC4-013

$6.98

26

OIL SEAL (25X40X7)

91216-729-921

$7.46

26

OIL SEAL (25X40X7) This part replaces 91252-428-000.

91216-729-921

$7.46

27

O-RING (54X2) This part replaces 91302-317-700.

91307-MB0-003

$3.23

27

O-RING (54X2) This part replaces 91307-MB0-000.

91307-MB0-003

$3.23

27

O-RING (54X2)

91307-MB0-003

$3.23

28

BEARING, RADIAL BALL (6203U)

96140-62030-10

$11.91

29

BEARING, RADIAL BALL (6204U)

96140-62040-10

$21.84
