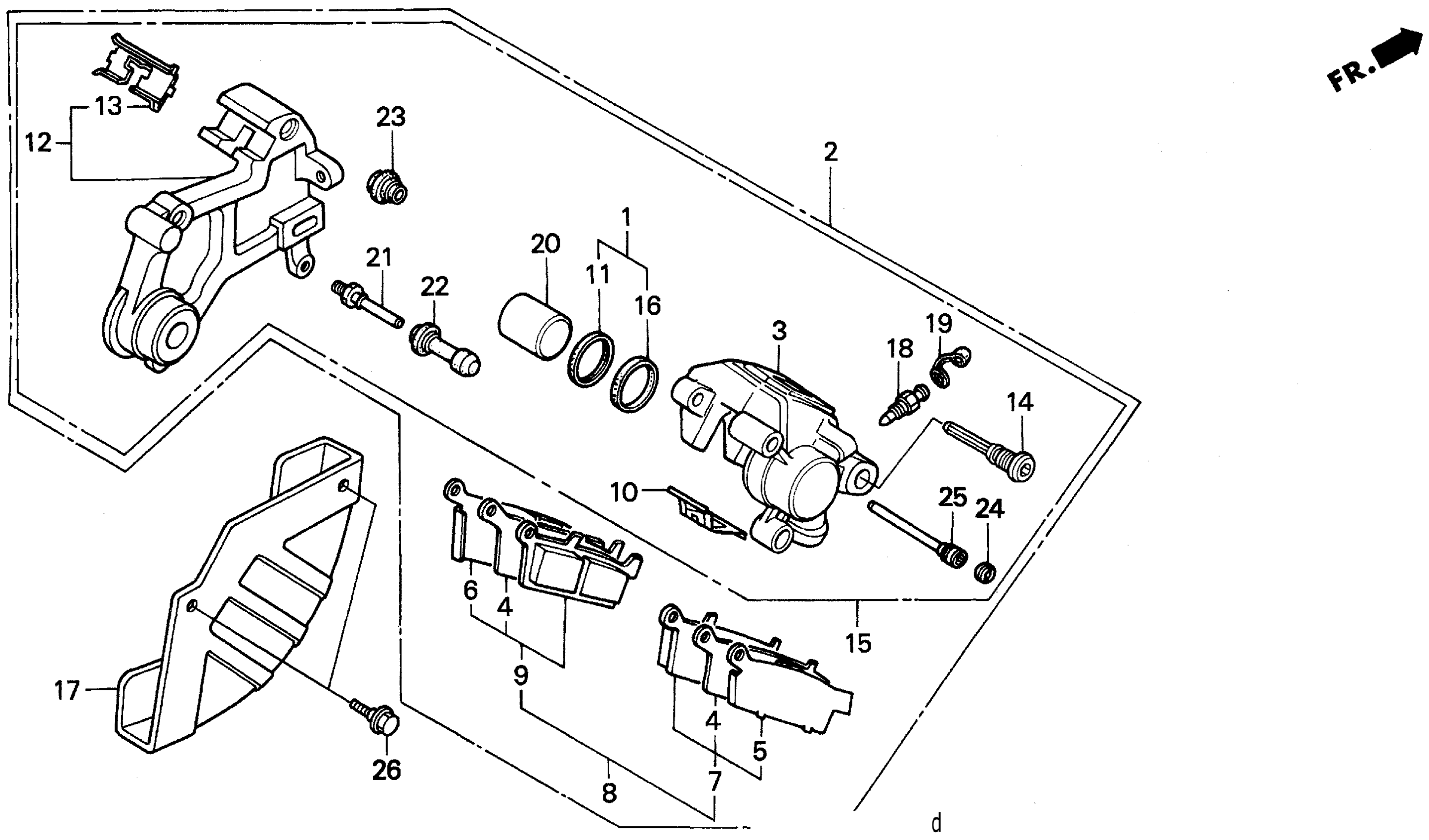

Honda XR250LA (92) MOTORCYCLE, JPN, VIN# JH2MD220-NM100005 TO JH2MD220-NM101850 REAR BRAKE CALIPER Diagram

#

Description
Price

NI

PAD SET, RR. BRAKE This part replaces 43105-KZ1-405.

43105-KZ1-415

$38.49

2

CALIPER ASSY., RR. (NISSIN)

43100-KV6-671

Unavailable

3

BODY, RR. CALIPER

43101-KZ1-671

Unavailable

4

INSULATOR

43102-KS6-701

Unavailable

5

RETAINER A, PAD

43103-KS6-702

Unavailable

6

RETAINER B, PAD

43104-KS6-702

Unavailable

7

PAD A

43105-KS6-702

Unavailable

9

PAD B

43106-KS6-702

Unavailable

10

SPRING, PAD

43108-MY6-671

$5.28

11

DUST SEAL

43109-MA3-006

$5.73

12

BRACKET, RR.

43110-KV6-671

Unavailable

13

RETAINER

43112-KS6-701

$6.07

14

BOLT, PIN

43131-KW3-006

$10.29

16

SEAL, PISTON

43209-MA3-006

$7.04

17

COVER, RR. DISK

43330-KZ9-000

Unavailable

18

SCREW, BLEEDER

43352-568-003

$7.95

19

CAP, BLEEDER

43353-461-771

$5.05

20

PISTON (NISSIN)

45107-ML4-006

$37.87

21

PIN, BOLT

45131-166-016

$7.63

22

BUSH, PIN

45132-166-016

$5.46

23

BOOT B

45133-MA3-006

$5.46

24

PLUG, PIN

45203-MG3-016

$5.12

25

PIN, HANGER

45215-KA3-732

$11.52

26

BOLT, FLANGE (6MM)

90111-GJ5-000

$4.24
