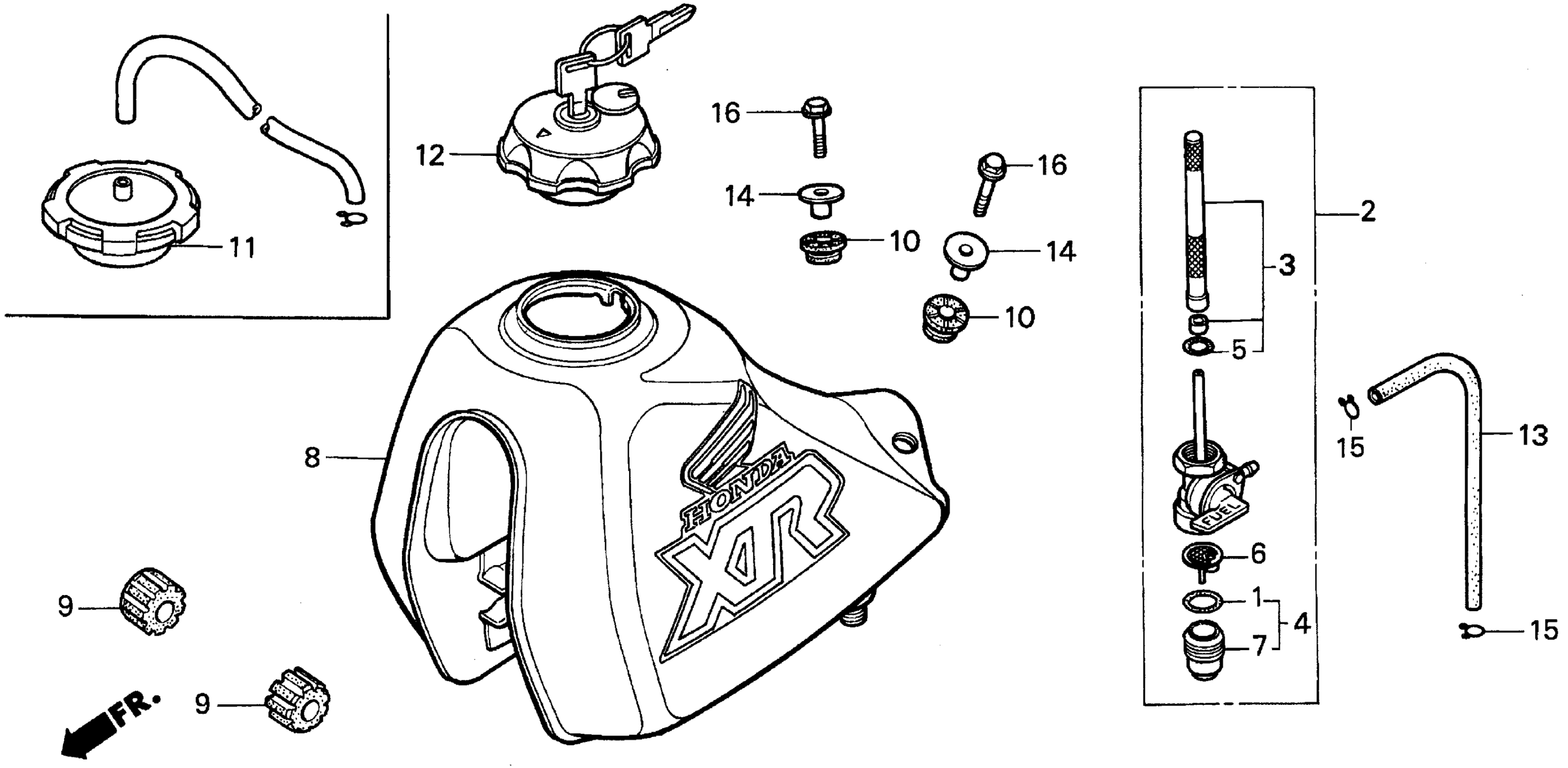

Honda XR250LA (92) MOTORCYCLE, JPN, VIN# JH2MD220-NM100005 TO JH2MD220-NM101850 FUEL TANK Diagram

GASKET, FUEL STRAINER CUP

16173-001-004

$5.17

PETCOCK ASSY.

16950-KBR-000

$113.25

SCREEN SET, FUEL STRAINER

16952-MA4-671

Unavailable

CUP SET, FUEL STRAINER

16953-GT4-305

$24.18

O-RING This part replaces 16195-657-300.

16075-GHB-720

$2.93

O-RING This part replaces 16958-MA1-731.

16075-GHB-720

$2.93

FILTER, CUP

16959-471-831

$9.35

TANK SET, FUEL *NH138* (WL) (SHASTA WHITE)

17520-KV6-690ZA

Unavailable

RUBBER, FR. FUEL TANK

17611-425-000

$8.18

RUBBER, RR. FUEL TANK

17613-176-000

$7.64

CAP, FUEL FILLER This part replaces 17620-KV6-023.

17620-KV6-033

Unavailable

CAP, FUEL FILLER

17620-KV6-033

Unavailable

TUBE, FUEL

17681-KT1-670

Unavailable

COLLAR, SEAT SETTING

77207-464-000

$7.63

CLIP, TUBE (B10)

95002-02100

$1.90

BOLT, FLANGE (6X28)

95701-06028-00

$1.73
