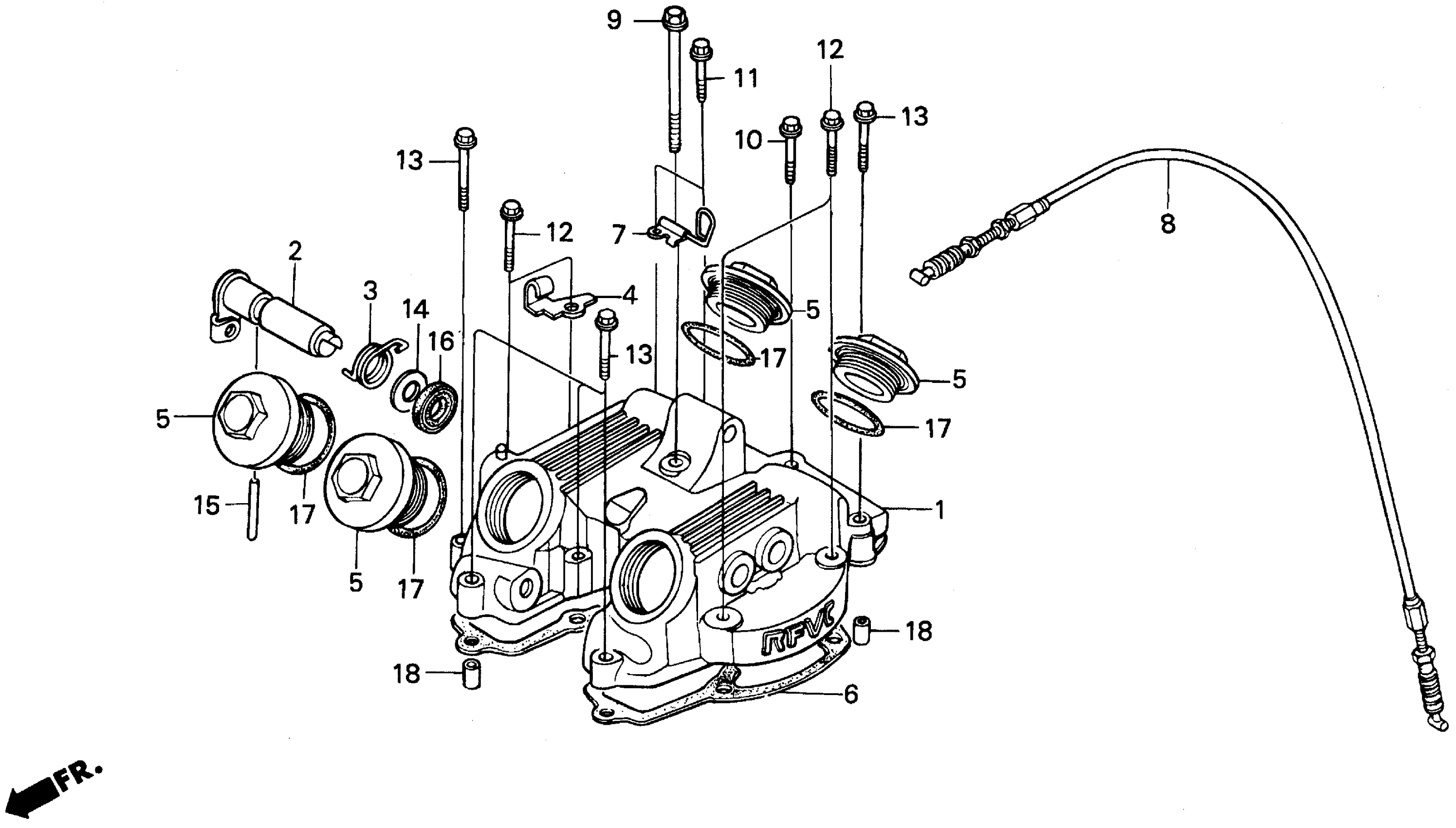

Honda XR250LA (92) MOTORCYCLE, JPN, VIN# JH2MD220-NM100005 TO JH2MD220-NM101850 CYLINDER HEAD COVER Diagram

COVER, CYLINDER HEAD

12311-KT1-780

Unavailable

LIFTER, VALVE

12320-KK0-000

Unavailable

SPRING, VALVE LIFTER

12321-KK0-000

Unavailable

RECEIVER A, DECOMPRESSION

12323-KK0-000

Unavailable

CAP, TAPPET ADJUSTING HOLE This part replaces 12361-KK0-000.

12361-HP5-600

$18.50

GASKET, CYLINDER HEAD COVER

12391-KR6-010

$45.81

CLAMP, CLUTCH CABLE

22875-KS5-000

Unavailable

CABLE, DECOMPRESSION

28291-KR6-000

$32.80

BOLT, FLANGE (8X75)

90017-KE7-000

Unavailable

BOLT, FLANGE SOCKET (6X25)

90091-KF0-000

$3.71

BOLT, FLANGE SOCKET (6X32)

90091-MG3-000

$3.71

BOLT, FLANGE SOCKET (6X35)

90092-MG3-000

$3.69

BOLT, FLANGE SOCKET (6X40)

90093-KF0-000

$4.35

WASHER (11MM)

90408-KK0-000

$2.81

PIN, DOWEL (4X37.5)

91101-KK0-000

Unavailable

OIL SEAL (11X16X5) (ARAI) This part replaces 91202-MG3-005.

91202-MG3-003

$5.12

OIL SEAL (11X16X5) (ARAI)

91202-MG3-003

$5.12

O-RING (35.5X3) (NOK)

91301-428-003

$2.21

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25
